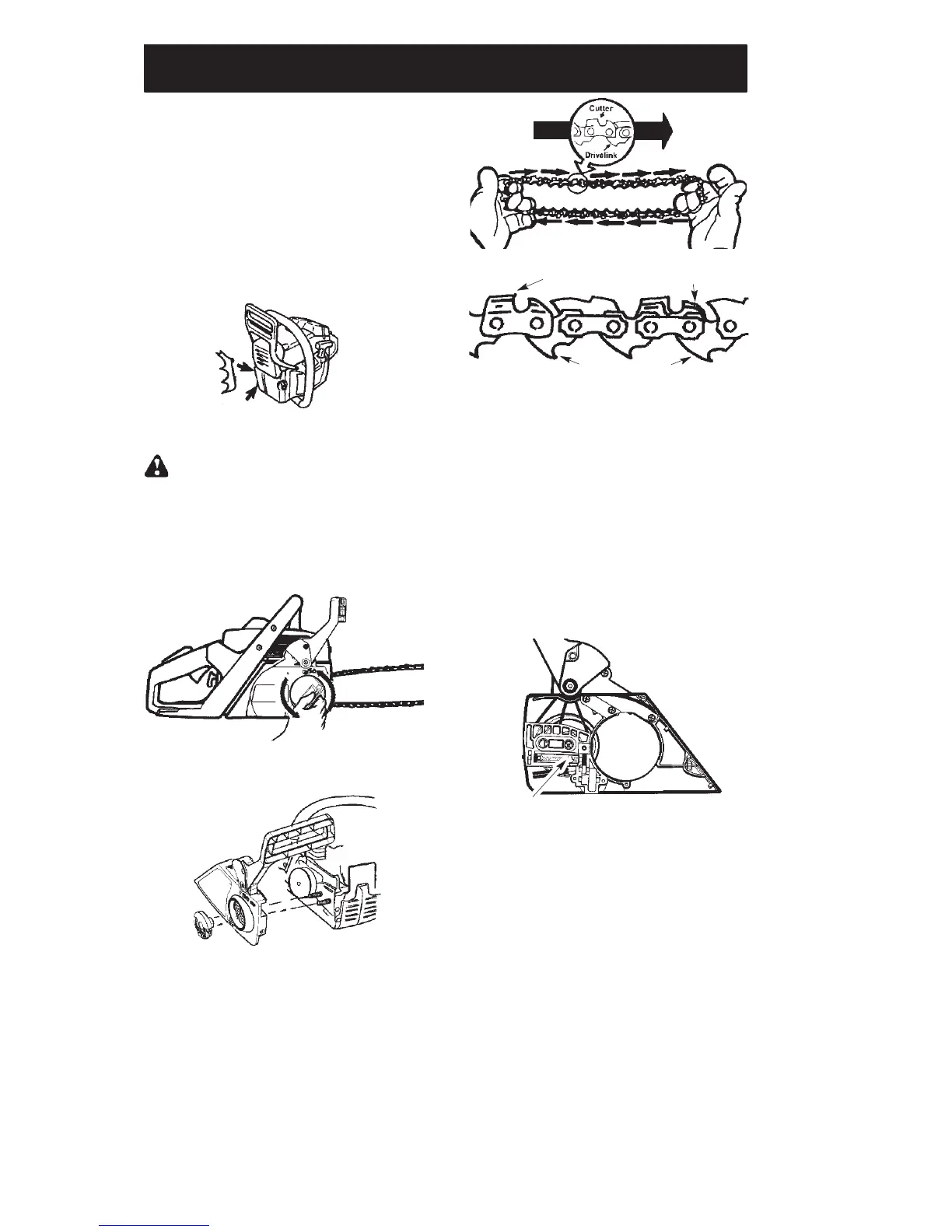

7
ASSEMBLY
Protective gloves (not provided) should be
worn during assembly.
ATTACHING THE BUMPER SPIKE
(If not already attached)
The bumper spike may be used as a pivot
when making a cut.
1. Loosenand removebar knobcompletely
by lifting lever and turning counterclock-
wise.
2. Remove clutch cover.
3. Attach the bumper spike with the two
screws as illustrated.
ATTACHING THE BAR & CHAIN
(If not already attached)
WARNING: Recheck each assem-
bly step if the saw is received assembled.Al-
ways wear gloves when handling the chain.
The chain is sharp and can cut you even
when it is not moving!
1. Loosenand remove bar knobcompletely
by lifting lever and turning counterclock-
wise.
LOOSEN
2. Remove clutch cover. Remove the plas-
tic shipping spacer (if present).
3. Slide guide bar on bar bolts until guide
bar stops against clutch drum sprocket.
4. Carefully remove the chain from the pack-
age. Hold chain with the drive links as
shown.
CUTTERS MUST FACE IN
DIIRECTION OF ROTATION
Tip of
Bar
Cutters
Depth Gauge
Drive Links
5. Place chain over and behind clutch re-
tainer, fitting the drive links in the clutch
drum sprocket.
6. Fit bottom of drive links between the
teeth in the sprocket in the nose of the
guide bar.
7. Fit chain drive links into bar groove.
8. Pull guide bar forward until chain is snug
inguide bargroove. Ensureall drive links
are in the bar groove.
9. Install clutch cover. Be sureadjustingpinis
in the adjusting pin hole in the guide bar.
CAUTION: It is very important when instal-
ling the clutch cover that the adjusting pin
aligns into the adjusting pin hole in thebar. Fail-
ure to install the clutch cover correctly may re-
sult in permanent damage to your chain saw.
Back
view of
clutch
cover
Adjusting pin
10. Install bar knob and finger tighten only.
Do not tighten any further at this point.
Once the chain is tensioned, you will
need to tighten the bar knob.
CHAIN TENSION (Including units
with chain already installed)
NOTE
: When adjusting chain tension,
make sure the bar knob is loosened 1 ½ -- 2
turns. Attempting to tension the chain when
the bar knob is tight can cause damage.
Checking the tension:
Use a screwdriver to move chain aroundguide
bar. If the chain does not rotate, it is too tight. If
too loose, the chain will sag below the bar.
