C2600
REPACKING INSTRUCTIONS
77

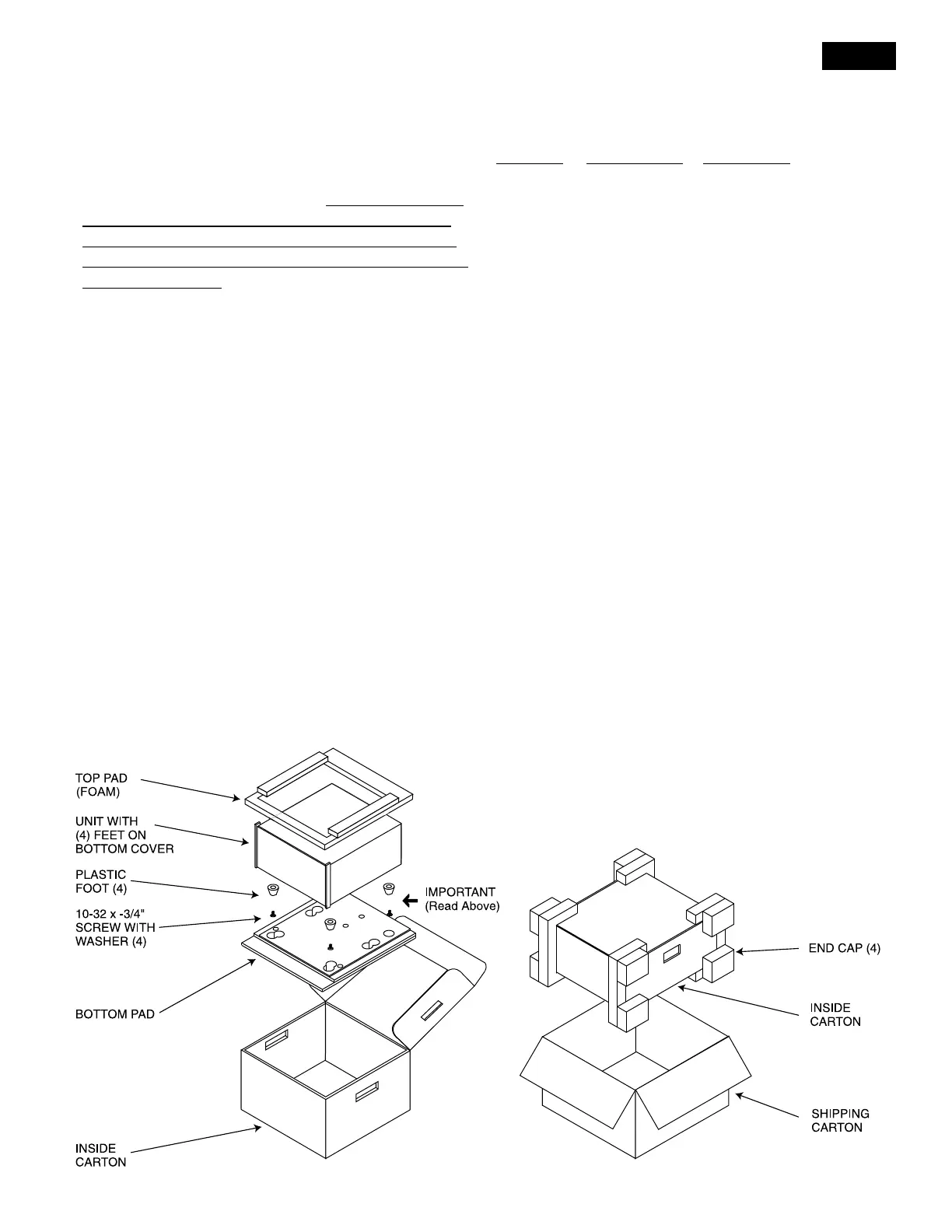

In the event it is necessary to repack the
equipment for shipment, the equipment must be
packed exactly as shown below. It is very important
that the four plastic feet are attached to the bottom of
the equipment. This will ensure the proper equipment
location on the bottom pad. Failure to do this will result
in shipping damage.
Use the original shipping carton and interior
parts only if they are all in good serviceable con-
dition. If a shipping carton or any of the interior
part(s) are needed, please call or write Customer
Service Department of McIntosh Laboratory. Refer
to page 3. Please see the Part List for the correct
part numbers.
Quantity Part Number Description
1 033888 Shipping carton only
4 033887 End cap
1 033697 Inside carton only
1 034414 Top pad (foam)
1 034301 Bottom pad
4 017937 Plastic foot
4 400159 #10-32 x 3/4” screw
4 404080 #10-7/16” Flat washer
