McIntosh MC207 Service Manual

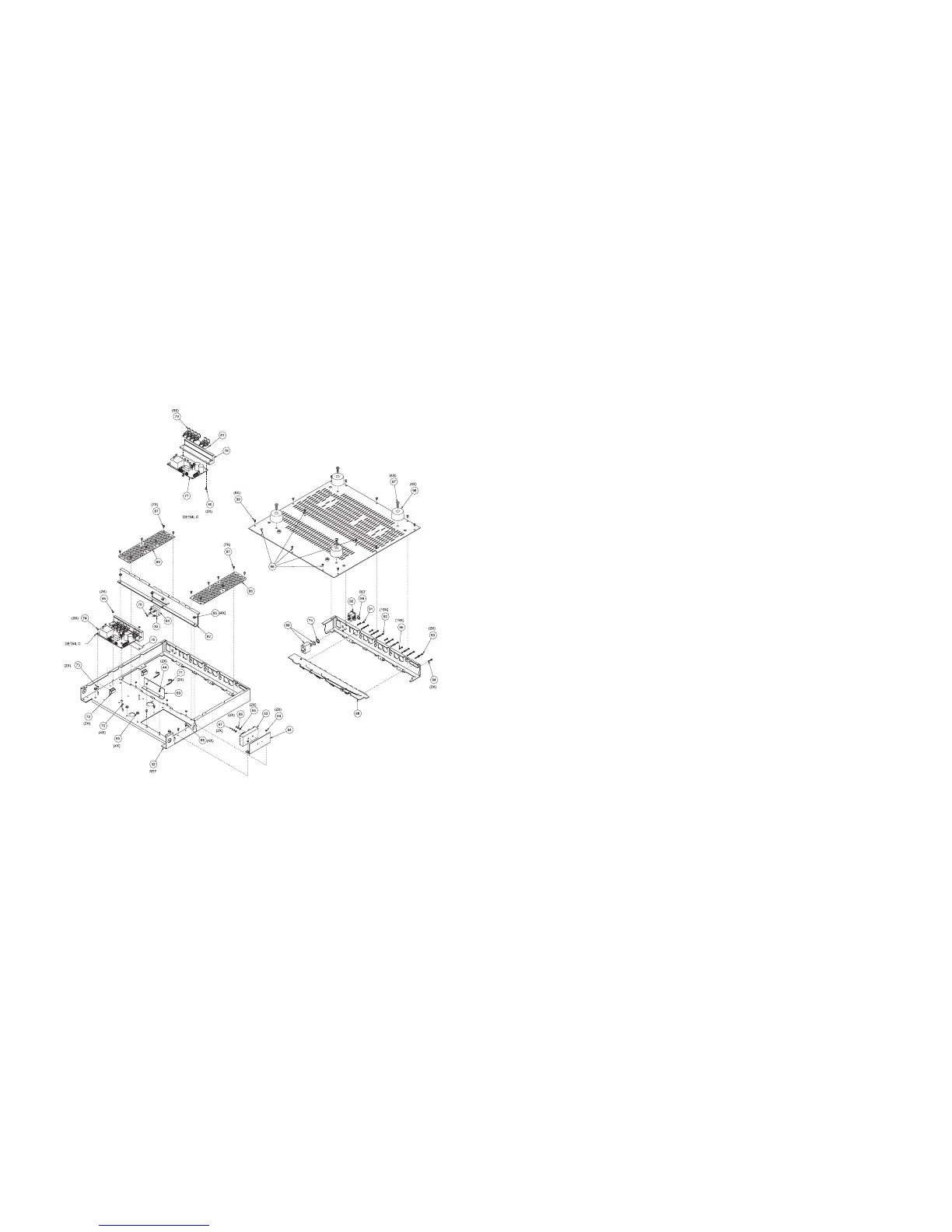

MC207 EXPLODED VIEW and PARTS LIST
Ref
No. Description
Part
No.
45 46
1 016507 GLASS
2 094360 TAPE FOAM 1/2 X 1/2
3 004939 BRACKET EXTRUSION
4 018615 END CAP 9”
5 101042 SCREW TS 4-40 X 1/2 SLOT FILL
6 094016 TAPE FOAM 1/4 X 1/8
7 098113 CORD DIAL .027 BLACK BRAID SILK
8 018706 EXTRUSION BOTTOM
9 100149 SCREW MACH 6-32 X 1/4 FL U/H ST
10 101232 SCREW 6-32 X 1/4 PH FLAT
11 018619 EXTRUSION TOP
12 104164 WASHER BLK FELT 1 X 1/4 X 1/16
13 049321 ASSY KNOB
14 092413 ACETATE FILTER BLUE DISPLAY
15 005407 SUBPANEL
16 017901 LOGO PUSHBUTTON BACKLIGHT
17 017921 LOGO/SELECTOR BACKLIGHT
18 094429 FOAM TAPE WHITE 1/32” THK
19 146243 SWITCH POWER
20 021159 BUSHING SWITCH
21 104014 WASHER INT STAR 3/8 X .507 X .002
22 124089 METER MC207
23 017922 METER BACKLIGHT
24 005411 METER PLATE
25 102001 NUT KEP 4-40 CADMIUM PLATE
26 050066 ASSY METER/DISPLAY PCB
27 112038 SPACER STEEL 4 X 3/8L NCKL PLT
28 112060 SPACER 4 X 5/16 STEEL
29 005404 DUST COVER
30 100287 SCREW MACH 8-32 X 3/8 PH TRUSS HD
31 126999 DECAL DUST COVER
32 005408 CHASSIS
33 101054 SCREW TAPTITE 6-32 X 1/4 PH PN BLK
34 078024 GROMMET RUBBER 1” ID
35 078040 GROMMET 3/4” X 1”
36 017956 TRANSFORMER SHIELD
37 050061 POTTED TRANSFORMER POWER
38 166001 DECAL POWER TRANSFORMER
39 050090 CAN POTTED CAPACITOR
40 166002 DECAL CAPACITOR COVER
41 094450 SOUND DAMPING PAD MC207
42 050063 ASSY CAPACITOR PCB
43 005413 CAPACITOR CLAMP
44 102045 NUT KEP 6-32 X 1/2 PH PN
45 100118 SCREW MACH 6-32 X 1/2 PH PN
46 018750 HEATSINK
47 084183 ISOSTRATE
48 050064 ASSY HEATSINK PCB 2 CH
49 101059 SCREW SM 6 X 5/8 PH PN TYPE A
50 112087 SPACER PCB 1/4”
51 114118 TRANSISTOR CLIP 218
52 114119 TRANSISTOR CLIP 214
53 005007 ASSY HEATSINK PCB 1 CH
54 005439 COVER HEATSINK CH 5-6
55 005406 HEATSINK COVER CENTER
56 005405 COVER HEATSINK CH 1-3
57 084124 POST BINDING DUAL
58 005419 OUTPUT PLATE TRIPLE
59 005418 OUTPUT PLATE SINGLE
60 104130 WASHER LOCK #10 SPLIT PHOS/BRNZ
61 104148 WASHER FLAT BRASS
62 110009 NUT M5 X 0.8 BRASS W/GOLD PLATE
63 074091 TERMINAL BLOCK AC
64 005435 TERMINAL BRACKET
65 104001 WASHER FLAT STEEL 4 X 9/32 X .025
66 104142 WASHER LOCK 2.5mm INT STAR ZINC
67 102022 NUT MACH 4-40 X 3/16 X 1/16
68 114072 RIVET PLASTIC
69 005434 TRANSFORMER BRACKET
70 102003 NUT MACH 6-32 W/LOCK
71 094255 CABLE TIE PANDUIT PLT1M-M
72 017452 KLIP WIRE
73 021094 SPACER 4 X 1/4
74 104014 3/8 INT STAR WASHER
75 084209 THERMSTRATE MC207
76 102020 NUT MACH 6-32 SELF LOCK
77 050062 ASSY POWER SUPPLY PCB
78 018751 SUB HEATSINK
79 114141 CLIP RIGHT ANGLE
80 100250 SCREW MACH SEMS 6-32 X 1/4 PH PN
81 084208 ISOSTRATE POWER SUPPLY
82 005410 CHASSIS SUPPORT REAR
83 070139 DIODE BRIDGE RECTIFIER
84 084207 THERMAL PAD 1.25 X 1.25 ALUMINUM
85 102006 NUT MACH 10-32 W/LOCK
86 005401 HEATSINK VENT
87 101176 SCREW TC 6-32 X 1/2 PH PN TYPE F
88 005065 ASSY INPUT PCB
89 088023 CIRCUIT BREAKER 10A 240VAC
90 117487 RECEPTACLE AC LINE
91 100250 SCREW MACH SEMS 6-32 X 1/4 PH PN
92 101197 SCREW HI-LO 4-24 X 3/8 PH RD BLK
93 112015 STANDOFF
94 104004 WASHER LOCK 5 X .255 INT STAR
95 005400 BOTTOM COVER
96 017937 FOOT
97 100159 SCREW MACH 10-32 X 3/4 PH PN
98 101078 ST 8-32 X 5/16 PH PN
99 100173 MS 8-32 X 1/4 PH PN

McIntosh MC207 Specifications

General

Damping factor	140
Amplifier class	-
Frequency range	10 - 100000 Hz
RMS rated power	1400 W
Output impedance	8 Ω
Audio output channels	7.1 channels
Peak power per channel	200 W
Signal-to-Noise Ratio (SNR)	112 dB
Total Harmonic Distortion (THD)	0.000 %
XLR in	Yes
Speakers connectivity type	Binding post
Purpose	Home
Product color	Black
Volume control	Rotary
Connectivity technology	Wired
Maximum current	12 A
AC input voltage	120 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	533 mm
Width	445 mm
Height	239 mm
Weight	37600 g
