McIntosh MC275 User Manual

9

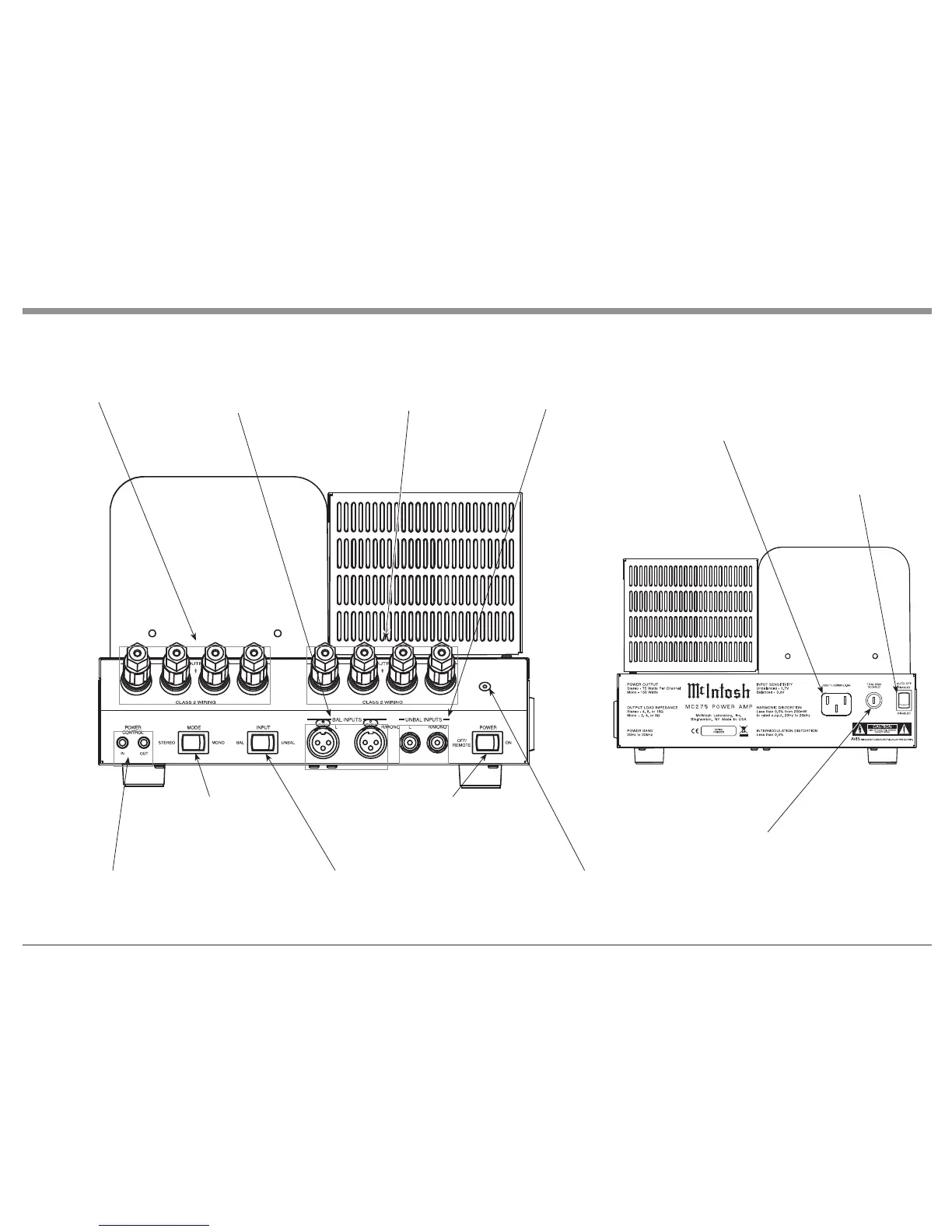

Left Side Connections, Indicator and Switch; Right Side Connection, Fuse Holder and Switch
Connect the MC275
power cord to a live AC
outlet. Refer to the no-
menclature above this
AC Socket to determine
the correct voltage
POWER CONTROL IN receives a turn On/Off
signal from a McIntosh component
POWER CONTROL OUT sends a turn On/Off
signal to the next McIntosh Component
BALanced INPUTS for au-
dio cables from a Preampli-
fier or A/V Control Center
audio output
LEFT OUTPUT
Connections for
a 4, 8 or 16 ohm
Loudspeaker
Fuse holder, refer to the nomenclature
above this fuse holder to determine the
correct the correct fuse size and rating
UNBALancded INPUTS
for audio cables from a
Preamplifier or A/V Con-
trol Center audio output
AUTO OFF Disables
or Enables the Power
Saving Circuitry
1
1
Refer to page 15 for additional information
RIGHT OUTPUT
Connections for
a 4, 8 or 16 ohm
Loudspeaker
MODE switch selects between
STEREO and MONO Parallel
modes of operation
INPUT switch selects
between BALanced
and UNBALanced
Input connections
Standby Power
On Indicator
POWER Switch Turns
AC Power On or Off/
Remote (On/Off)

McIntosh MC275 Specifications

General

Damping factor	20
Amplifier class	-
Frequency range	10 - 70000 Hz
Output impedance	16 Ω
Audio output channels	2.0 channels
Peak power per channel	75 W
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.50 %
RMS power output per channel (2 Ohm)	150 W
XLR in	Yes
Audio (L/R) in	2
Audio (L/R) out	6
Speakers connectivity type	Binding post
Purpose	Performance/stage
Product color	Black, Silver
Connectivity technology	Wired
Maximum current	3.6 A
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Package weight	34100 g

Weight and Dimensions

Depth	304.8 mm
Width	419.1 mm
Height	209.6 mm
Weight	30500 g
