8

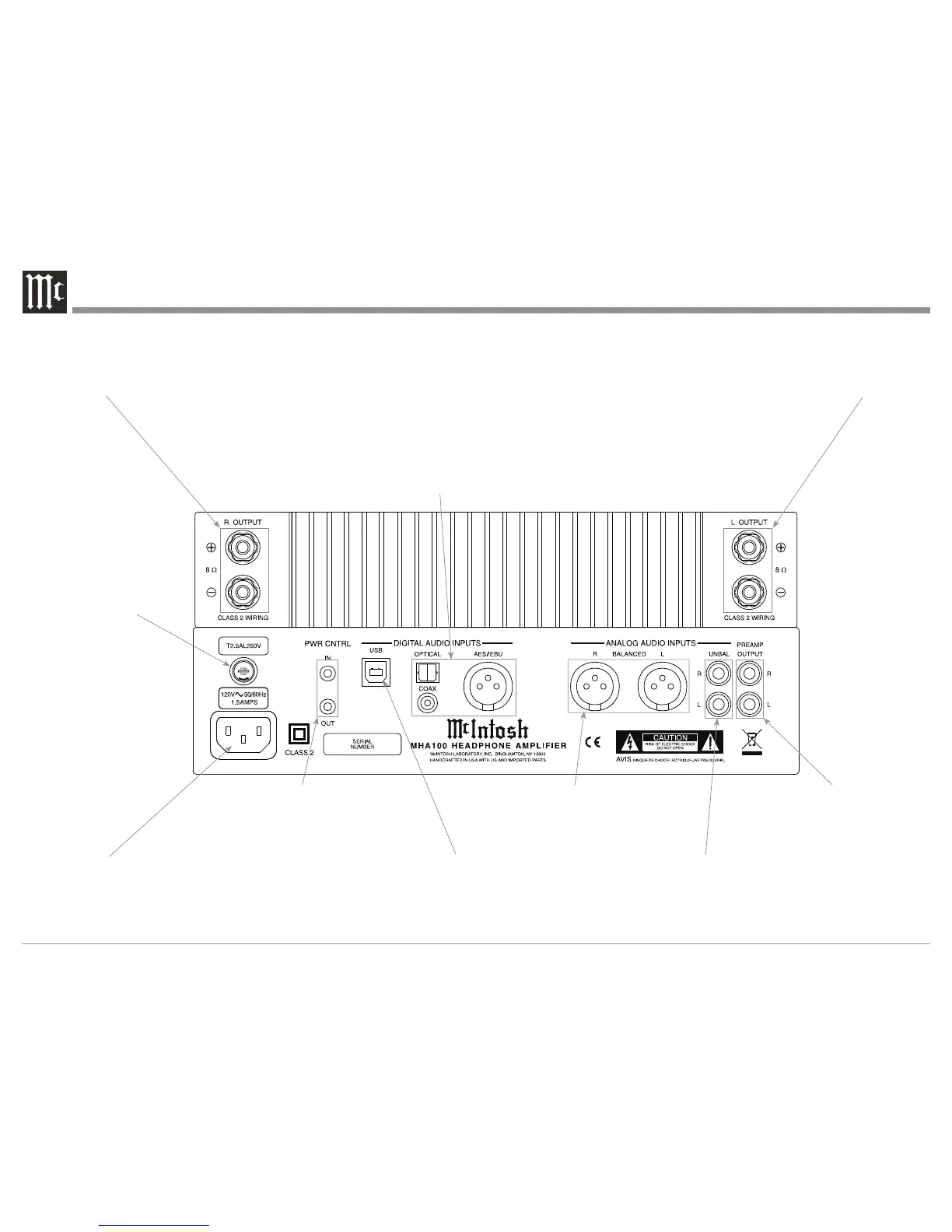

MHA100 Rear Panel Connections
RIGHT OUTPUT
connections for an
8 ohm Loudspeaker
UNBALanced INPUT
accept high level signal
from a source with an
unbalanced output
PREAMP OUTPUT
sends signals to an ex-
ternal Power Amplifier
or Powered Subwoofer
DIGITAL AUDIO INPUTS
for components with Digital
Optical, Coaxial and Balanced
'LJLWDO$(6(%82XWSXWV
sending digital audio signals
USB Digital Audio
Input for connection to
a computer
Connect the MHA100 power cord
to a live AC outlet. Refer to infor-
mation on the back panel of your
MHA100 to determine the correct
voltage for your unit
Main Fuse holder, refer to
information on the back
panel of your MHA100 to
determine the correct fuse
size and rating
LEFT OUTPUT
connections for an
8 ohm Loudspeaker
BALANCED INPUT
accept high level signal
from a source with a
balanced output
3:5&175/3RZHU&RQWURO,1
receives a turn On/Off signal from a
McIntosh Component; PWR CNTRL
OUT sends a turn On/Off signal to an
other McIntosh Component
