McIntyre 407 - Adjusting the Stroke

20
320/407/500/600.41912-ENG
4.4. Adjusting the Stroke
The Top Jaw opening may be adjusted to suit the type of material being sheared. To
achieve this:
• First stop and switch off the Shear with the Jaws in the closed position.
• Loosen the handle on the Stroke Control Mechanism.
• Slide the Stroke Adjuster up or down the Stroke Adjuster Rod. Sliding to the REAR
lengthens the stroke, sliding to the FRONT reduces it.
• When the desired position has been obtained, tighten the hande to lock the Stroke
Adjuster in place.
Always switch off the Shear before adjusting the Stroke
Adjuster Mechanism.

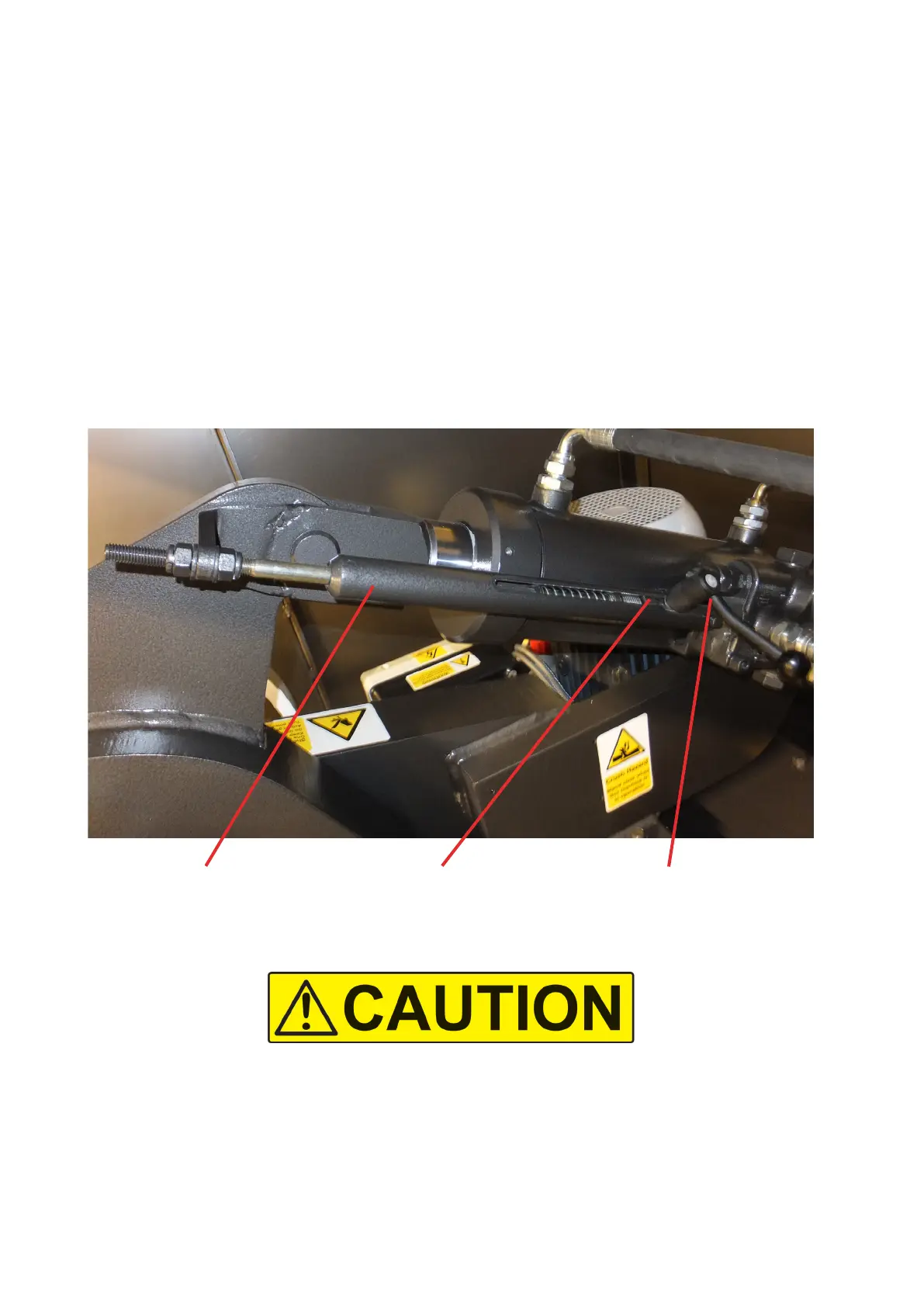

Stroke Adjuster Stroke Adjuster handleStroke Adjuster Tube
FRONT
REAR
