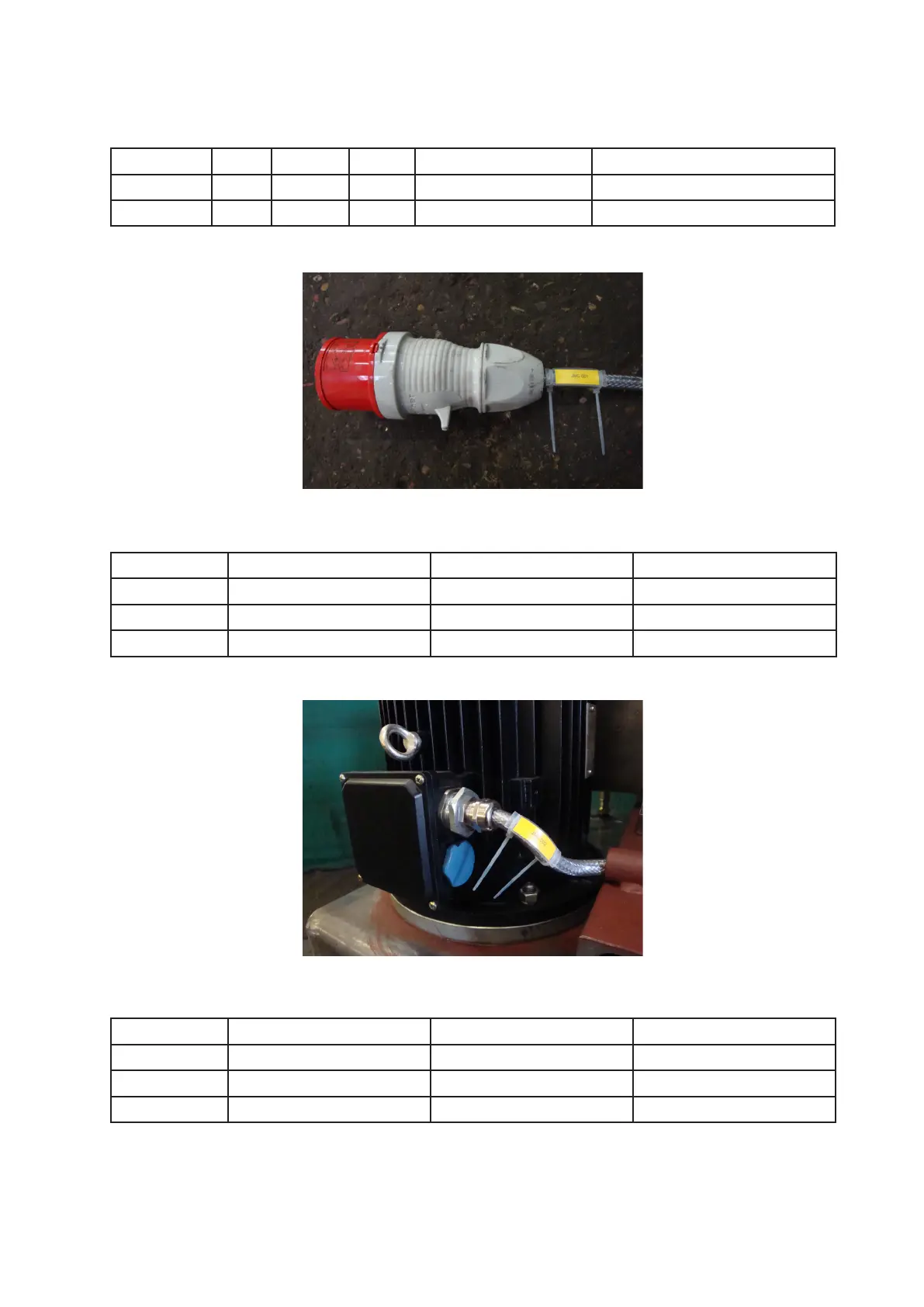

6.3. Electrical Cable Schedule - Single Phase
Cable No. Size Cores Cable Source Destination
JMC001 4.0 3 SY 63A Plug Control Panel Isolator
JMC002 4.0 3 SY Starter Relay Pump Motor
6.3.1. JMC001
Source: 63A Plug Destination: Control Panel Isolator
Core No. Plug Terminal No. Isolator Terminal No. Function
Earth Earth Earth Earth
1 Live L1 Power Supply
2 Neutral L3 Power Supply
6.3.2. JMC002
Source: Starter Relay Destination: Pump Motor
Core No. Relay Terminal No. Motor Terminal No. Function
Earth Earth Earth Earth
1 2 Either Motor Winding
2 6 Either Motor Winding
Note: Connect Motor Terminals for Motor rotation to be CLOCKWISE at
fan end.
