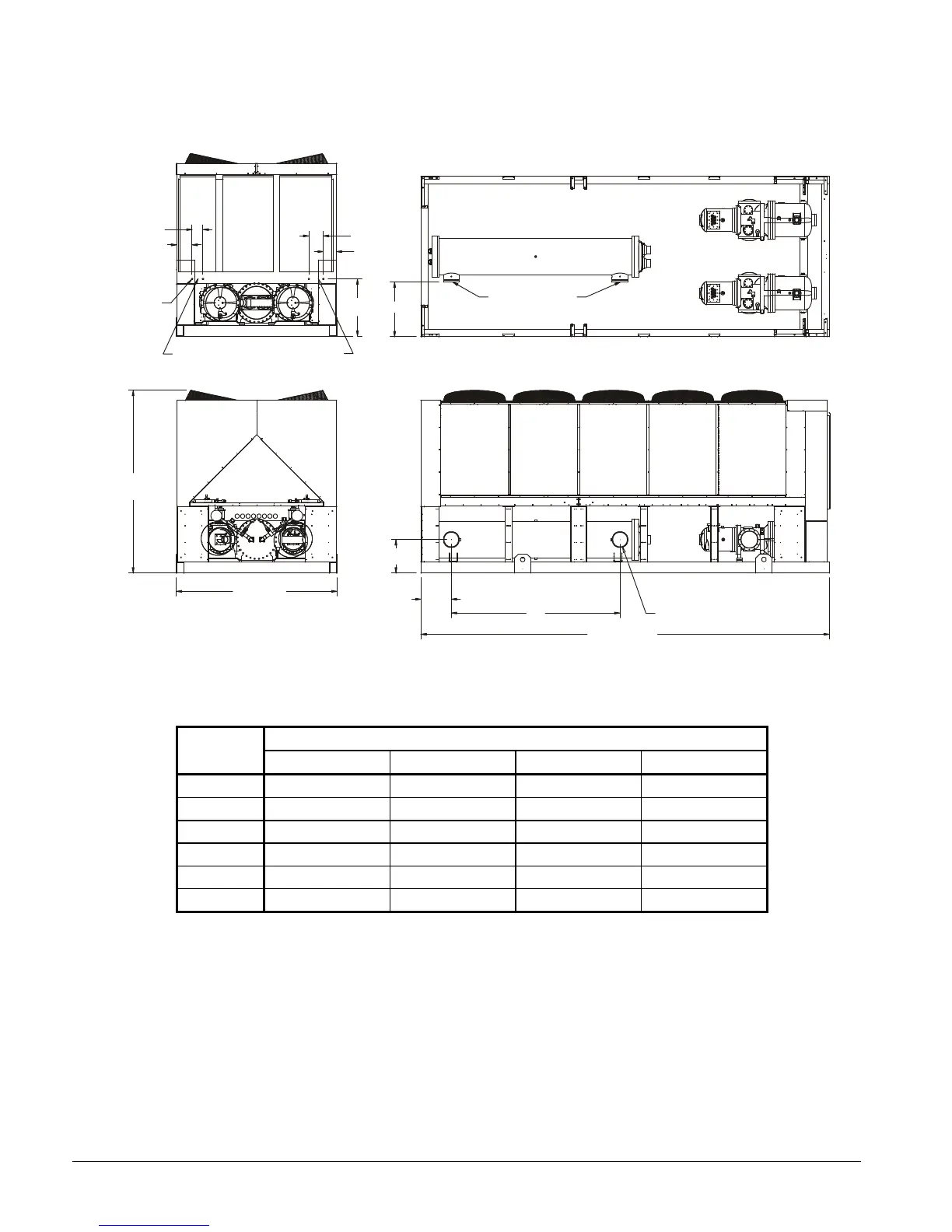

Figure 21, Dimensions, AGS 125CS/H –190CS/H
Note: See page13 for lifting locations, mounting locations, weights and mounting loads.
0.875 (22.2)
KNOCK OUT
( QTY 4 TOTAL)
8.0 (203.2)
6.0 (152.4)
8.5 (215.9)
7.2 (182.9)
31.5
(800.1)
330712701-00-02
" A "
" B "
18.4
(467.4)
"C " VICTAULIC CONNECTION
224.8 (5709.9)
" D "
INLET
OUTLET
POWER ENTRYFIELD CONTROL
CONNECTION
100.4
(2550.2)
88.5 (2248.9)
POWER
PANEL
POWER
PANEL
CONTROL
PANEL
Dimensions In (mm)
UNIT
SIZE
" A " " B " " C " " D "
AGS125C
39.3 (998.2) 70.3 (1785.6) 8 (203.2) 30.1 (764.5)
AGS135C
39.3 (998.2) 70.3 (1785.6) 8 (203.2) 30.1 (764.5)
AGS145C
15.6 (396.2) 94.9 (2410.5) 6 (152.4) 32.1 (815.3)
AGS170C
16.7 (424.2) 92.9 (2359.7) 8 (203.2) 30.1 (764.5)
AGS180C
16.7 (424.2) 92.9 (2359.7) 8 (203.2) 30.1 (764.5)
AGS190C
16.7 (424.2) 92.9 (2359.7) 8 (203.2) 30.1 (764.5)
