McQuay AGS 210CS/H User Manual

56 IMM AGS-2
Lifting and Mounting Dimensions and Weights, Remote Evaporator

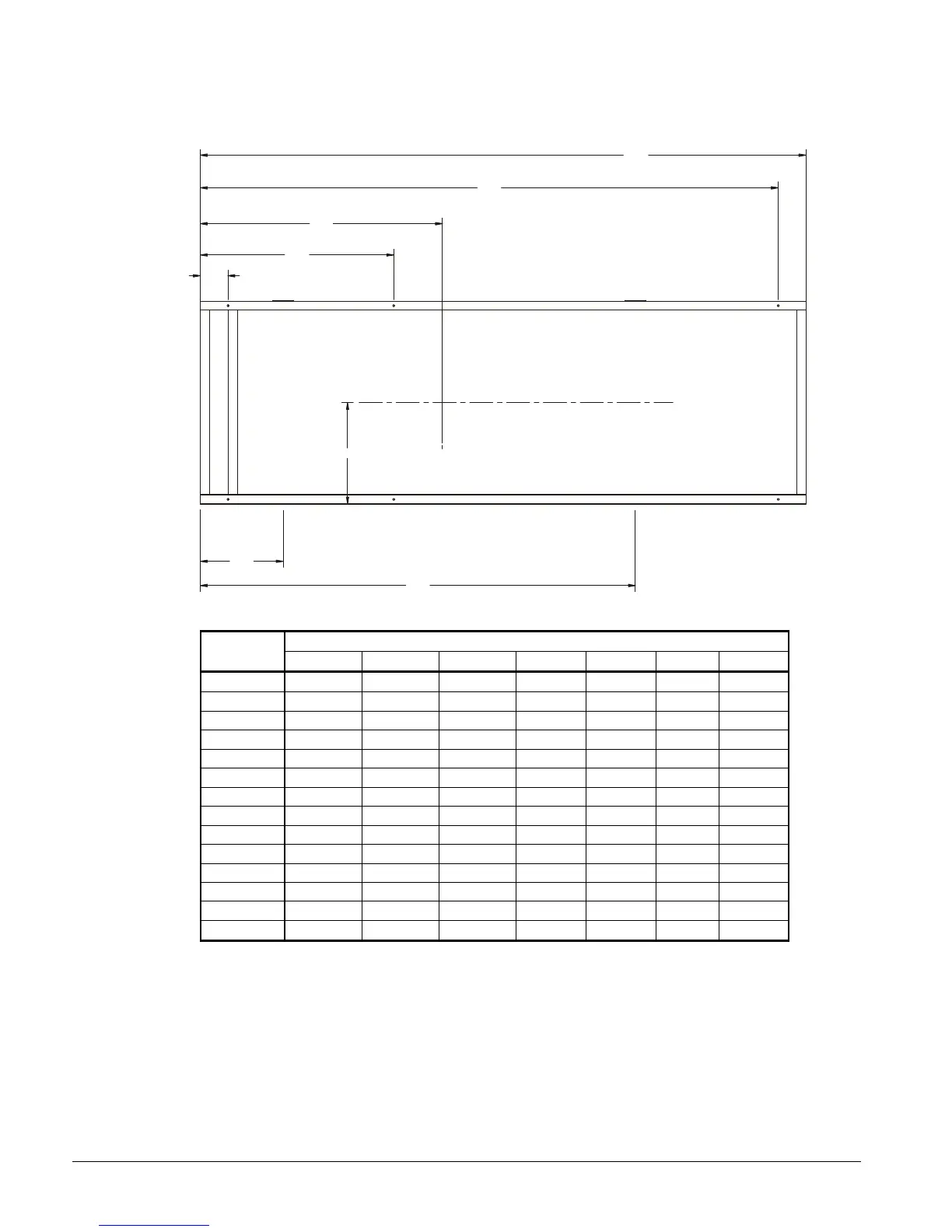

Figure 36, Mounting and Lifting Dimensions
C/G
M1 M3 M5
M6
M4M2
L1
L4
L3L2
CONTROL BOX
3307127-00-04
44.00
" F "
" D "
" E "
" C "
" A "
" B "
" G "
DIMENSIONS IN INCHES
AGS
MODEL
A B C D E F G
120
36.00 136.60 12.00 57.30 174.60 61.36 186.60
125
36.00 168.85 12.00 69.25 212.80 74.80 224.80
130
36.00 136.60 12.00 57.30 174.60 61.36 186.60
135
36.00 168.85 12.00 69.25 212.80 74.80 224.80
140
36.00 136.60 12.00 57.30 174.60 61.36 186.60
145
36.00 168.85 12.00 69.25 212.80 74.80 224.80
160
36.00 136.60 12.00 57.30 174.60 61.36 186.60
165
36.00 189.00 12.00 84.00 251.00 86.83 263.00
170
36.00 168.85 12.00 69.25 212.80 74.80 224.80
175
36.00 189.00 12.00 84.00 251.00 86.83 263.00
180
36.00 168.85 12.00 69.25 212.80 74.80 224.80
190
36.00 168.85 12.00 69.25 212.80 74.80 224.80
195
36.00 188.77 12.00 84.00 251.00 86.83 263.00
210
36.00 188.77 12.00 84.00 251.00 86.83 263.00
NOTES:
1. Center of gravity (f) is calculated from shipping weight.
2. Dimensions in inches.
