IOM 686 AGZ 030A through 065A 7
The spring flex isolators are white type CP2-32, McQuay part number 047792932. A total of four per
unit is required.

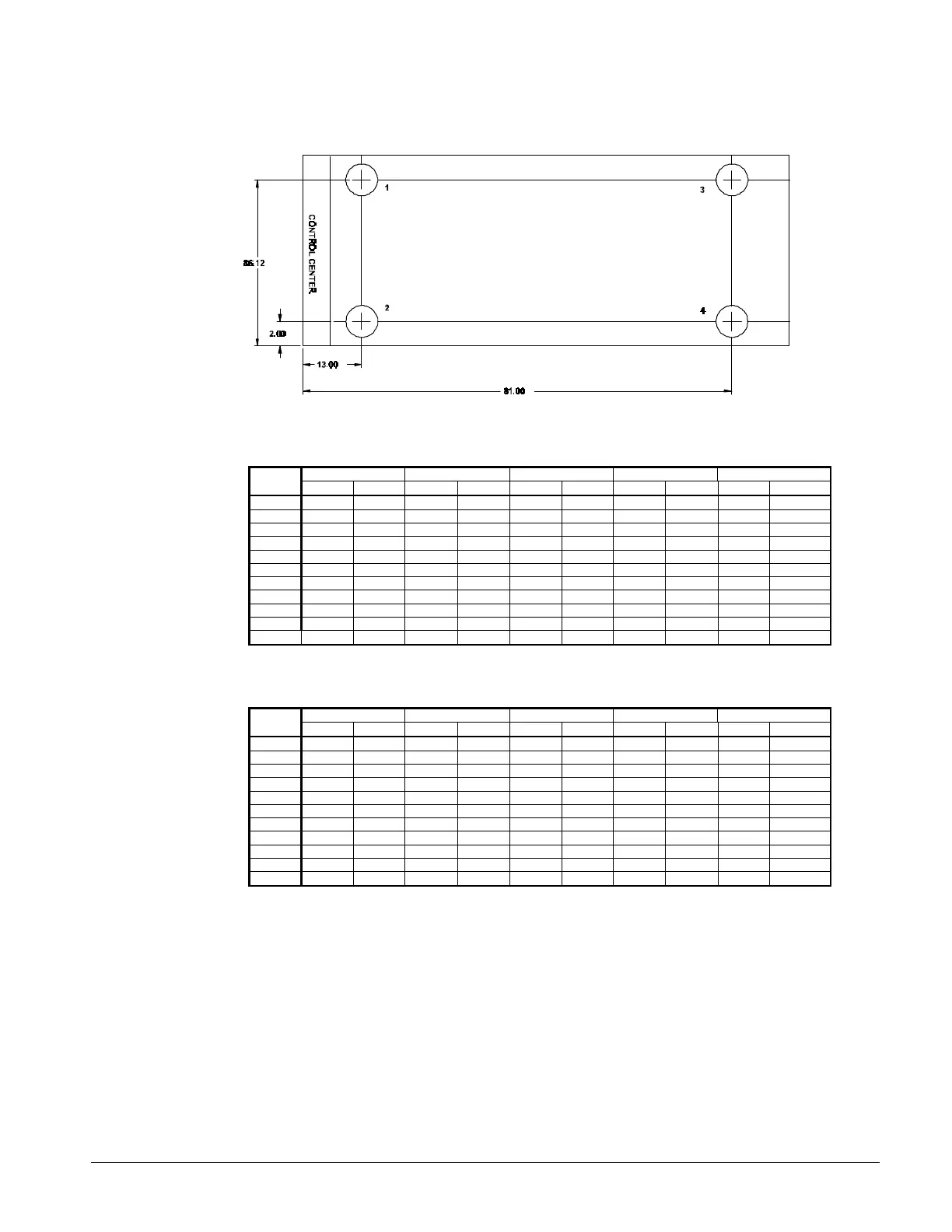

Figure 4, Isolator Locations
Table 1 , Isolator Loads at each Mounting Location with Aluminum Fins
Unit 1 2 3 4 Total Unit
Size Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg
030AS 838 380 944 428 773 351 870 395 3425 1554
035AS 850 386 960 435 785 356 885 401 3480 1579
040AS 864 392 974 442 797 362 900 408 3535 1603
045AS 928 421 1048 475 858 389 966 438 3800 1724
050AS 940 426 1062 482 868 394 980 445 3850 1746
055AS 990 449 1118 507 915 415 1032 468 4055 1839
060AS 1006 456 1134 514 928 421 1047 475 4115 1867
065AS 1050 476 1184 537 970 440 1091 495 4295 1948
030AE 852 386 960 435 786 357 887 402 3485 1581
040AE 904 410 1017 461 834 378 940 426 3695 1676
050AE 980 445 1105 501 905 411 1020 463 4010 1819
Table 2, Isolator Loads at each Mounting Location with Copper Fins
Unit 1 2 3 4 Total Unit
Size Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg
030AS 946 429 1066 484 873 396 985 447 3870 1755
035AS 960 435 1082 491 886 402 997 452 3925 1780
040AS 973 441 1096 497 899 408 1012 459 3980 1805
045AS 1038 471 1170 531 958 435 1079 489 4245 1926
050AS 1050 476 1184 537 970 440 1091 495 4295 1948
055AS 1154 523 1300 590 1066 484 1200 544 4720 2141
060AS 1166 529 1320 599 1078 489 1216 552 4780 2168
065AS 1252 568 1412 640 1156 524 1305 592 5125 2325
030AE 960 435 1083 491 887 402 1000 454 3930 1783
040AE 1066 484 1202 545 984 446 1108 503 4360 1978
050AE 1142 518 1288 584 1055 479 1190 540 4675 2121
Water Piping
Local authorities can supply the installer with the proper building and safety codes required for safe
and proper installation.
Install piping with minimum bends and changes in elevation to minimize pressure drop. Consider
the following when installing water piping:
1. Vibration eliminators to reduce vibration and noise transmission to the building.
2. Shutoff valves to isolate the unit from the piping system during unit servicing.
