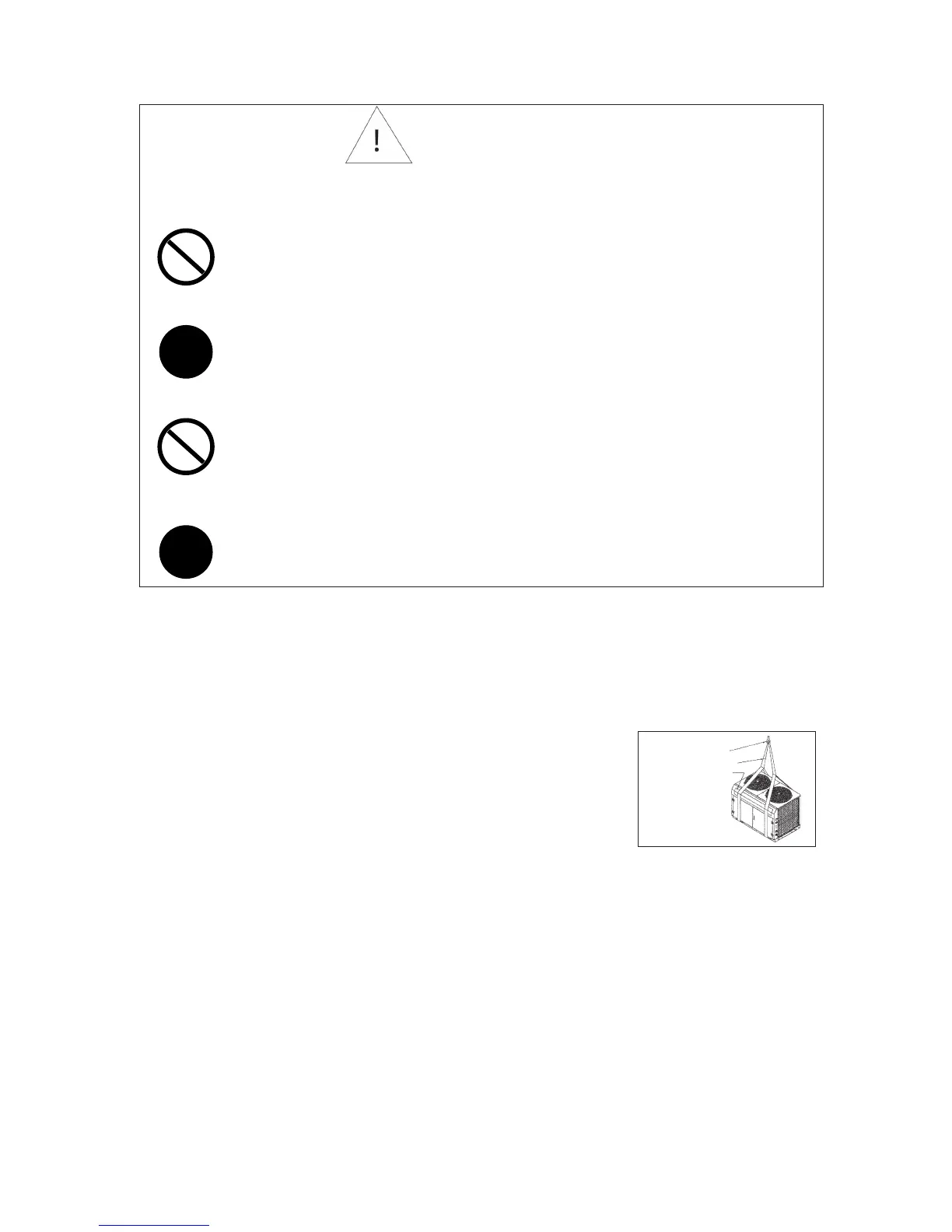

Caution
Please take note of the following important points when installing.
Do not install the unit where leakage of flammable gas may occur.
If gas leaks and accumulates around the unit, it may cause fire ignition.
Ensure that the drainage piping is connected properly.
If the drainage piping is not connected properly, it may cause water leakage which will dampen the
furniture.
Do not overcharge the unit.
This unit is factory pre-charged. Overcharge will cause over-current or damage to the compressor.
Ensure that the units panel is closed after service or installation.
Unsecured panels will cause unit to operate noisily.
44
Installation Location
Installation work should be done by the authorized dealer or qualified contractor. Never install the unit
yourself.
Make sure there is sufficient airflow around the unit.
Vibration isolator should be provided to reduce the vibration and noise of the unit.
There should be sufficient space allocated for servicing and maintenance when installing the unit.
Transportation
The unit should be lifted using a crane. Ensure that the hanger belts
are not touching the coil, top panel and front panel (use protective panel)
as shown in Figure 1.
The bolt of the base and channel support can be removed after
putting the unit on the fixed location. Figure 1
Water Piping and Fitting
All water pipe must be insulated to prevent capacity losses and condensation.
Install a 40-60 mesh strainer to ensure water quality is good.
Water pipe recommended are black steel pipe and copper pipe.
During installation, the piping of the unit should be clamp before rotating the installation pipe to reduce the
moment induce on the unit piping.
Users are recommended to install the pipe and accessories as shown in Figure 2.
An air vent must be installed at the highest position, while a drainage plug at the lowest position of the
water circuit. Open the air vent to release any air trap in the water circuit.
Run the clean water through the water inlet and operate the pump to drain out the dirty water. Clean
the strainer after running the pump for 30 minutes.
Fill up the water circuit after connecting the pipes and equipment. Check water leakage at all
connections and joints. Do not start the unit when the system is leaking.
To optimize the capacity of the system, ensure that the system is free of air bubbles. The air trapped
in the system would make the system unbalanced.
!
!
Hanger
Hanging Belt
Protective Panel
Figure 1
