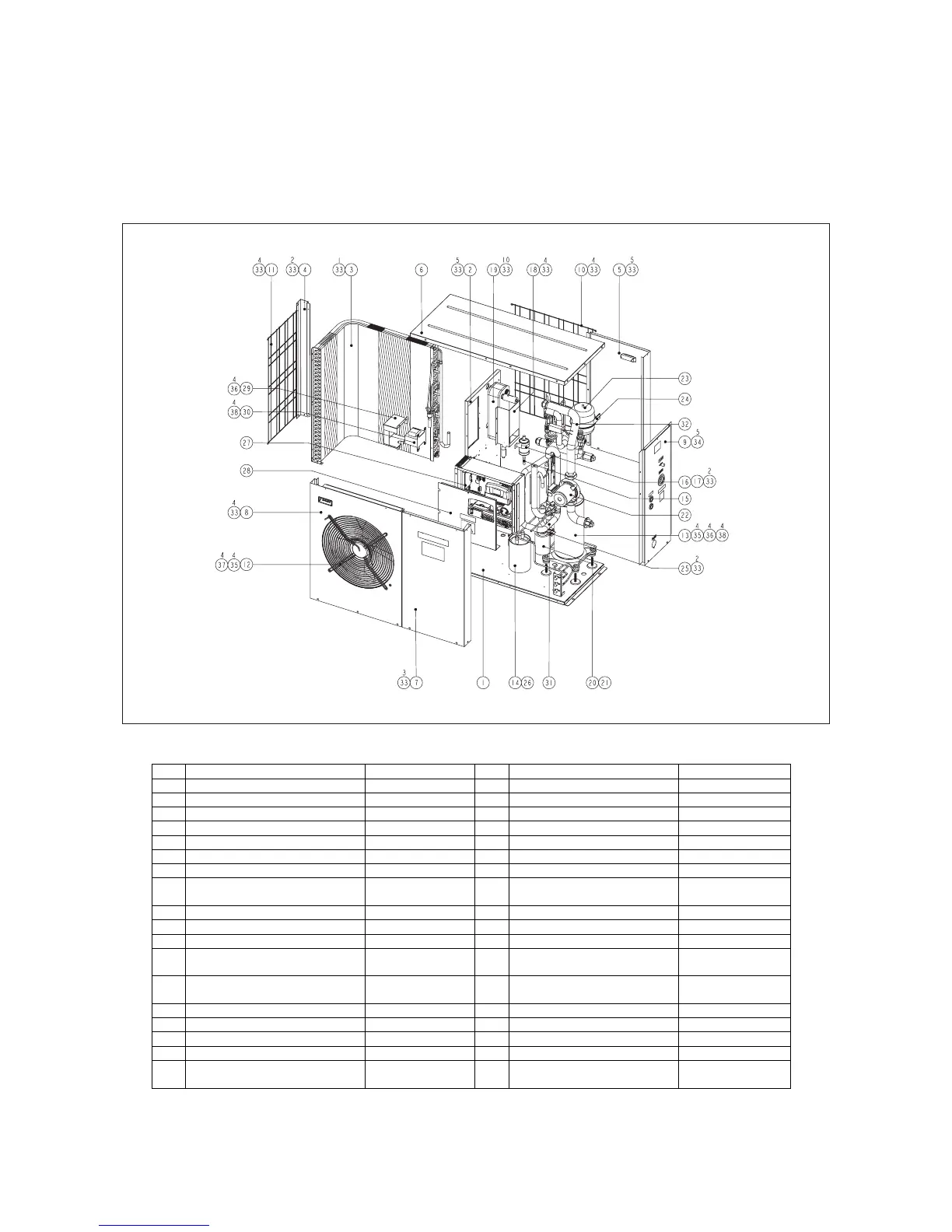

Exploded View and Part Lists
Model : M5ACV 030CR
91
No Description Part no No Description Part no
1 ASSY, BASE PAN R50 01 4 079444 19 COMPENSATOR AFB-11 R02 16 4 036982
2 ASSY, PANEL PARTITION R50 01 4 079447 20 INS. COMPENSATOR BODY -
3 ASSY, COIL R50 02 4 082968 21 WATER PUMP UPS25-125 R04 13 9 018353
4 PANEL, SUPPORT PILLAR R01 01 4 058974 22 EXPANSION TANK 2L ELBI R05 01 9 018922
5 STRUCTURE REAR RIGHT R01 01 4 069935 23 CLAMP, EXPANSION TANK R01 01 4 072222
6 PANEL TOP R01 01 4 064936 24 SUPPORT, TUBE R01 01 4 063180
7 STRUCTURE FRONT RIGHT R01 01 4 069936 25 INS, ACCUMULATOR BODY -
8 ASSY, PANEL ORIFICE R50 01 4 060810 26
ASSY, TERMINAL BOX
MAIN
R50 04 4 082101
9 PANEL RIGHT R01 01 4 079475 27 COVER CONTROL BOX R01 01 4 082098
10 COIL GUARD, BACK R01 02 4 058986 28 PANEL, COVER REACTOR R01 01 4 081033
11 COIL GUARD, LEFT R01 02 4 058985 29 REACTOR -
12 ASSY, FAN MOTOR MORRILL R50 03 9 019117 30
SCREW, PTT SUS
M4x12mm
R07 01 9 010836
13 COMP. ASSY ANV33FKBMT R50 04 9 024773 31
SCREW, JD COATING PTS
M5 x 16
R07 01 9 010843
14 ACCUMULATOR, R65W R02 11 9 016393 32 NUT, C/W FLANGE M8 R07 02 4 059149
15 CLIP, FILTER DRIER R01 01 4 071927 33 SPACER R01 02 9 024769
16 FILTER DRIER R02 16 9 018760 34 WASHER, FLAT R07 04 4 003869
17 CLAMP, BPHE R01 01 4 061321 35 WASHER, FLAT R07 01 4 003768
18 ASSY, BPHE R50 02 4 080515 36
SCREW, JD COATING PTT
M5x12
R07 01 9 010838
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
