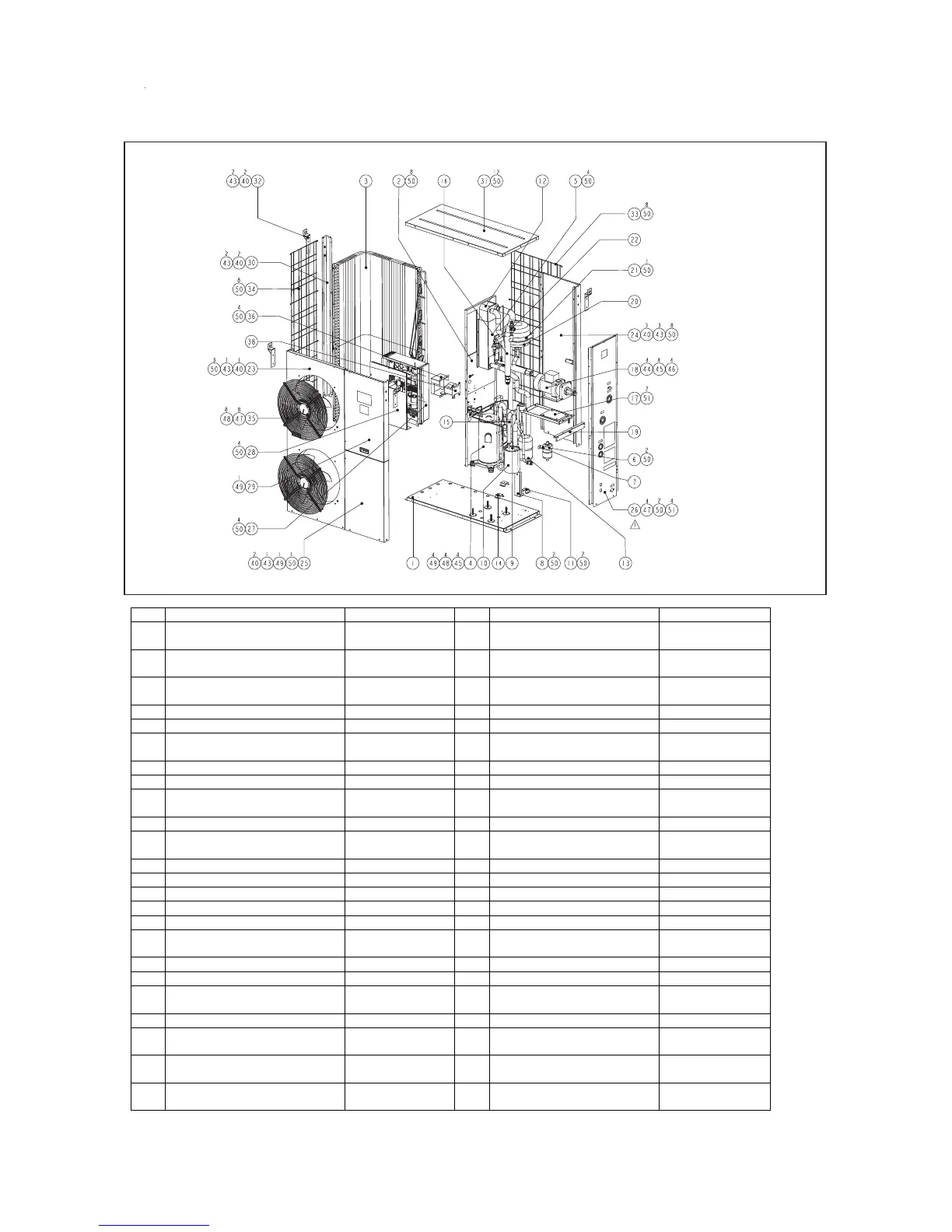

Model : M5ACV 055CR
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
No Description Part no No Description Part no
1 ASSY, PANEL BASE R50 01 4 079682 25
ASSY, TERMINAL BOX
MAIN
R50 04 4 082048
2 ASSY, PANEL PARTITION R50 01 4 080005 26
ASSY, COVER CONTROL
BOX
R01 01 4 082049
3 ASSY, COIL R50 02 4 079683 27
ASSY, STRUCTURE FRONT
RIGHT TOP
R50 01 4 082086
4 COMP. ASSY ANV47FKBMT R50 04 9 024220 28 ASSY, SUPOPRT PILLAR R50 01 4 062762
5 CLAMP, BPHE R01 01 4 061748 29 ASSY, INS. PANEL TOP R01 01 4 064936
6 CLIP, FILTER DRIER R01 01 4 071226 30
ASSY, SUPORT HOISTING
BRACKET
R50 01 4 022906
7 FILTER DRIER R02 16 4 034987 31 COIL GUARD, BACK R01 02 4 058841
8 SUPPORT, ACCUMULATOR R01 01 4 079828 32 COIL GUARD, LEFT R01 02 4 058840
9 ACCUMULATOR, R65W R02 11 9 016393 33
ASSY, FAN MOTOR
MORRILL
R50 03 9 019117
10 INS, ACCUMULATOR BODY - 34 PANEL, COVER REACTOR R01 01 4 081033
11
SUPPORT, ACCU. & LQD.
RECEIVER
R01 01 4 059624 35 BUSH, RUBBER R11 01 4 001876
12 ASSY, BPHE R50 02 4 079933 36 REACTOR -
13 LIQUID RECEIVER R02 11 9 020906 37 WASHER, SPRING R07 04 4 002246
14 SUPPORT, TUBE R01 01 4 063180 38 SPACER R01 02 9 024769
15 ASSY, PUMP BASE R50 01 4 065859 39 RUBBER GROMMET R11 04 4 024768
16 WATER PUMP CH2-30 R04 13 9 021184 40 BOLT, HEX M8 x20 R07 03 4 003822
17 PLATE, PUMP SUPPORT R01 01 4 061851 41
SCREW, PHILIP PAN HEAD
M6 x15mm
R07 01 4 010157
18 EXPANSION TANK R05 01 9 018923 42 WASHER SPRING R07 04 4 003769
19 CLAMP, EXPANSION TANK R01 01 4 068177 43 WASHER, FLAT -
20 PRESSURE RELIEF VALVE R05 02 4 050808 44
SCREW, JD COATING PTS
M5 x16
R07 01 9 010843
21 ASSY, PANEL ORIFICE R50 01 4 060812 45 WASHER, FLAT R07 04 4 003869
22
ASSY, STRUCTURE REAR
RIGHT
R50 01 4 064939 46 SCREW, SELF TAPPING R07 01 4 002248
23
ASSY, STRUCTURE, FRONT
RIGHT TOP
R50 01 4 082086 47 SCREW, PTT SUS M4x12 R07 01 9 010836
24 PANEL RIGHT R01 01 4 079937 48
SCREW, JD COATING PTT
M5 x12
R07 01 9 010838
To Next Page
