93

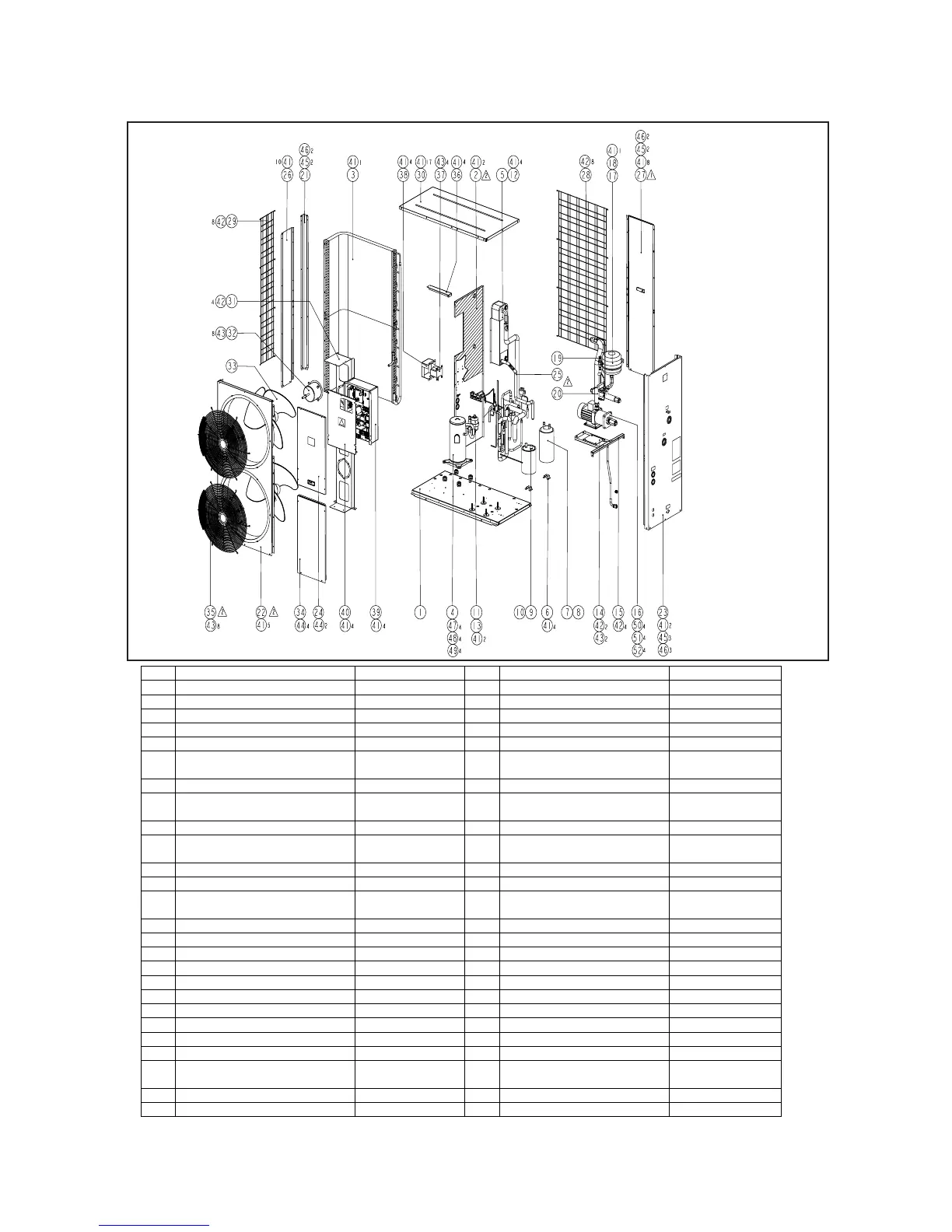

Model : M5ACV 075CR
No Description Part no No Description Part no
1 ASSY, BASE PAN R50 01 4 078737 27 STRUCTURE REAR RIGHT R01 01 4 078641
2 ASSY, PANEL PARTITION R50 01 4 078744 28 COIL GUARD, BACK R01 02 4 078750
3 ASSY, COIL R50 02 4 078902 29 COIL GUARD RIGHT R01 02 4 078751
4 COMP. ASSY ANV47FKBMT R50 04 9 024220 30 INS. PANEL TOP R01 01 4 078652
5 ASSY, BPHE R02 20 9 024775 31 ASSY, BRACKET MOTOR R50 01 4 085856
6
SUPPORT, ACCU., & LIQUID
RECEIVER
R01 01 4 059624 32 MOTOR R03 03 9 016103
7 LIQUID RECEIVER R02 11 9 024280 33 FAN BLADE R03 01 3 028160
8
INS, LIQUID RECEIVER
BODY
- 34
STRUCTURE, FRONT
RIGHT BOTTOM
R01 01 4 078643
9 ACCUMULATOR R02 11 9 015506 35 FAN BLADE R01 02 4 078747
10 INS, ACCUMULATOR BODY - 36
SUPPORT, MOTOR
BRACKET
R01 01 4 078917
11 FILTER DRIER R02 16 4 034987 37 REACTOR -
12 CLAMP, BPHE R01 01 4 078653 38 PANEL, COVER REACTOR R01 01 4 081033
13 CLIP, FILTER DRIER R01 01 4 071226 39
ASSY, TERMINAL BOX
MAIN
R50 04 4 083597
14 ASSY, PUMP BASE R50 01 4 082718 40 COVER TERMINAL BOX R01 01 4 078654
15 PLATE, PUMP SUPPORT R01 01 4 078637 41 SCREW, M4x12 R07 01 9 010836
16 WATER PUMP CH4-40(AUUE) R04 13 9 021185 42 SCREW, M5x16 R07 01 9 010839
17 EXPANSION TANK 5L R05 01 9 018923 43 SCREW, 5x16 R07 01 9 010843
18 CLAMP, EXPANSION TANK R01 01 4 068177 44 SCREW, TRUSS HEAD R07 01 4 002221
19 PRESSURE RELIEF VALVE R05 02 4 050808 45 BOLT HEX M8x20 R07 03 4 003822
20 ASSY, WATER PIPING - 46 WASHER SPRING R07 04 4 002246
21 PANEL, SUPPORT PILLAR R01 01 4 078638 47 NUT, C/W FLANGE M8 R07 02 4 059149
22 ASSY, PANEL ORIFICE R50 01 4 078740 48 RUBBER GROMMET -
23 ASSY, PANEL RIGHT (MAIN) R50 01 4 086750 49 SPACER -
24
ASSY, STRUCTURE FRONT
RIGHT TOP
R01 01 4 078642 50 SCREW, PHILIP PAN HEAD R07 01 4 010157
25 ASSY, UNIT TUBING - 51 WASHER, SPRING R07 04 4 003769
26 PANEL, SIDE LEFT R01 01 4 079744 52 WASHER, FLAT R07 01 4 003768
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
