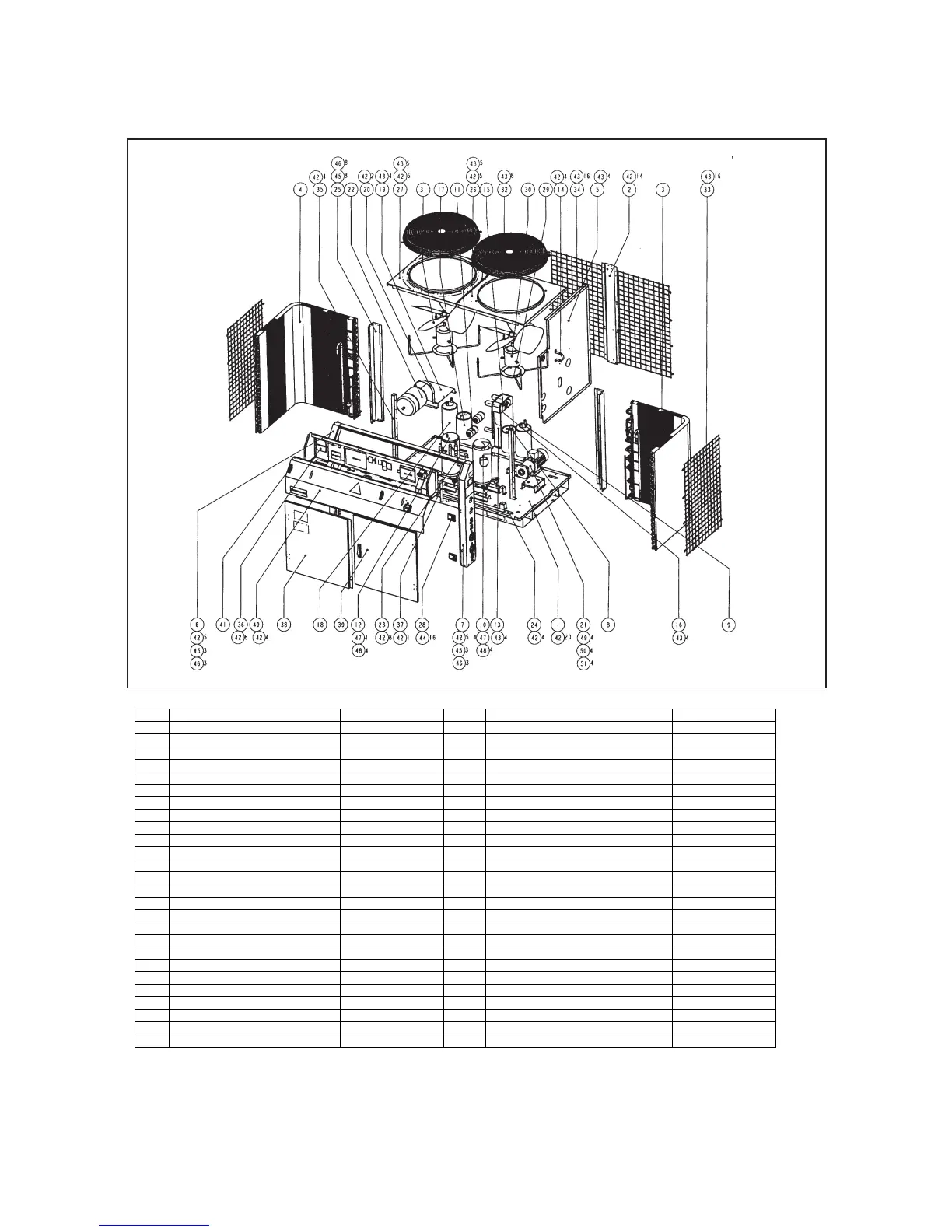

Model : M5ACV100CR
94
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
NO DESCRIPTIONS PART NO NO DESCRIPTIONS PART NO
1 ASSY, PANEL BASE MAIN R50 01 4 077857 27 PANEL, ORIFICE LEFT R01 01 4 082120
2 COIL SUPPORT R01 01 4 077862 28 HINGE, DOOR R01 02 9 016097
3 ASSY, COIL RIGHT R50 01 4 077891 29 BRACKET, MOTOR R01 02 4 096383
4 ASSY, COIL LEFT R50 01 4 077893 30 MOTOR R03 03 9 015508
5 ASSY, PARTITION PANEL R50 01 4 077863 31 FAN BLADE 24” R03 02 9 015512
6 LEFT PANEL R01 01 4 082112 32 FAN GUARD R01 02 4 055748
7 RIGHT PANEL R01 01 4 082113 33 COIL GUARD, LEFT/RIGHT R01 02 4 055744
8 ACCUMULATOR R02 11 9 015506 34 COIL GUARD, BACK R01 02 4 055745
9 LIQUID RECEIVER R02 11 9 024280 35 PANEL, TERMINAL BOX SUPPORT R01 01 4 054717
10 COMPRESSOR ASSY R50 04 9 024063 36 ASSY, TERMINAL BOX MAIN R50 04 4 078888
11 FILTER DRIER R02 16 4 034987 37 PLATE, PARTITION R01 01 4 056603
12 COMP. ASSY INVERTER R50 04 9 024220 38 DOOR PANEL LEFT R50 01 4 056078
13 BRACKET, BPHE R01 01 4 077865 39 DOOR PANEL RIGHT R50 01 4 074752
14 CLIP, FILTER DRIER R01 01 4 054752 40 FRONT PANEL MAIN R01 01 4 082114
15 ASSY, BPHE R02 20 9 024222 41 ASSY, PANEL HOOK R50 12 9 016096
16 CLAMP, BPHE R01 01 4 077866 42 SCREW, PTT SUS M4X12 R07 01 9 010836
17 INS, ACCUMULATOR BODY - 43 SCREW, JD COATING P.T. M5X16 R07 01 9 010839
18 INS, LIQUID RECEIVER BODY - 44 SCREW, TRUST HEAD PHILIP R07 01 4 002221
19 SUPPORT, EXPANSION TANK R01 01 4 054712 45 BOLT HEX M8X20 R07 03 4 003822
20 CLAMP, EXPANSION TANK R01 01 4 054754 46 WASHER, SPRING R07 04 4 002246
21 WATER PUMP CH4-40 R04 13 9 021185 47 NUT, C/W FLANGE M8 -
22 TANK, EXPANSION 8L R05 01 4 001497 48 SPACER -
23 PANEL, SUPPORT FRONT R01 0 1 4 082118 49 SCREW, PHILP PAN HEAD R07 01 4 010157
24 SUPPORT, FLUTTED WIRE R01 01 4 054762 50 WASHER, SPRING R07 04 4 003769
25 STRUCTURE, BACK L/R R01 01 4 054710 51 WASHER, FLAT R07 01 4 003768
26 PANEL, ORIFICE RIGHT R01 01 4 082121
