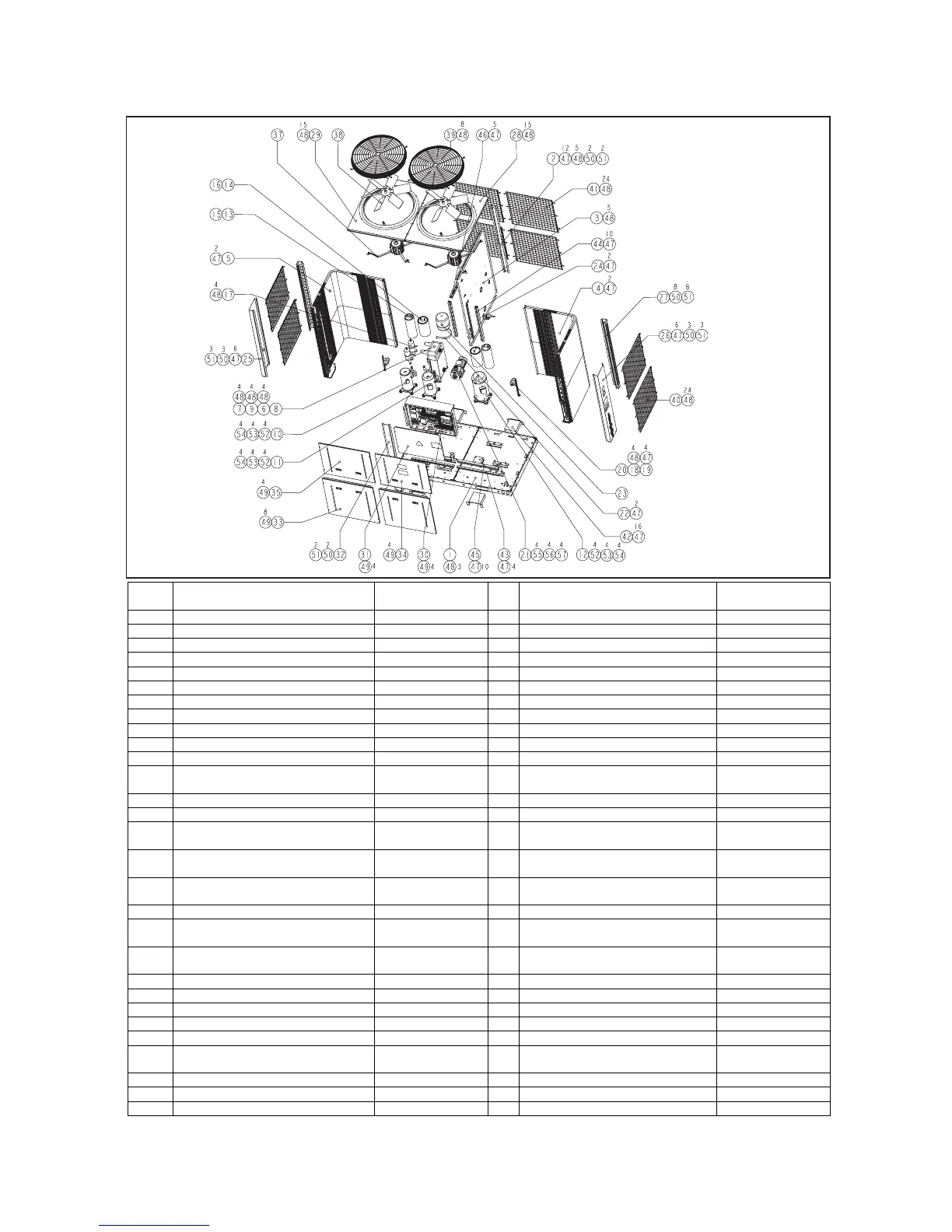

Model : M5ACV210CR
96
NO DESCRIPTION PART NO N
O
DESCRIPTION PART NO
1 ASSY, PANEL BASE MAIN R50 01 4 084901 30 ASSY, CONTROL BOX R50 04 4 089239
2 PANEL, COIL SUPPORT R01 01 4 083984 31 ASSY, COVER TERMINAL BOX R01 01 4 084609
3 ASSY, PANEL PARTITION R50 01 4 083980 32 ASSY, PANEL CENTER R50 01 4 084213
4 ASSY, COIL RIGHT (GOLD FIN) R50 02 4 084041 33 PANEL, FRONT BOTTOM R01 01 4 086996
5 ASSY, COIL LEFT (GOLD FIN) R50 02 4 084040 34 PANEL FRONT RIGHT TOP R50 01 4 086994
6 BRACKET, BPHE R01 01 4 084911 35 PANEL FRONT LEFT TOP R50 01 4 085254
7 PANEL, SUPPORT BPHE R01 01 4 087701 36 MOTOR, YDK550-8AC R03 03 9 028560
8 ASSY, BPHE R50 02 4 084902 37 BRACKET, FAN MOTOR 32” R01 02 4 051691
9 CLAMP, BPHE R01 01 4 084910 38 FAN BLADE R03 01 9 021351
10 ASSY, COMP.ANV47FKBMT MIT. R50 04 9 024220 39 FAN GUARD 32” R01 02 4 048691
11 ASSY, COMP. BN65YFAMT SIAM R50 04 9 026991 40 COIL GUARD, LEFT/RIGHT R01 02 4 085033
12 ASSY. COMP. ZP137KCE-TFD
COPELAND
R50 04 9 026989 41 COIL GUARD, BACK R01 02 4 086957
13 ACCUMULATOR (A-AS 5179) R02 11 9 015245 42 PANEL, COVER R01 01 4 087049
14 LIQUID RECEIVER R02 11 9 028389 43 SUPPORT, WIRE BOARD R01 01 4 087979
15 INS. ACCUMULATOR BODY R06 01 4 056067 44 PVC TRUNKING (33.0 x 45.0 x
808.0)
R12 02 4 087981
16 INS. LIQUID RECEIVER BODY R06 01 4 088638 45 PVC TRUNKING (33.0 x 45.0 x
710.0)
R12 02 4 057612
17 OIL SEPERATOR R02 11 9 028561 46 PVC TRUNKING (33.0 x 45.0 x
860.0)
R12 02 4 087980
18 PANEL, SUPPORT FILTER DRIER R01 01 4 084043 47 SCREW, PTT SUS M4x12 R07 01 9 010836
19 CLIP, FILTER DRIER R01 01 4 054752 48 SCREW, JD COATING P.T.
M5x16
R07 01 9 010839
20 FILTER DRIER, BFK165S R02 16 4 034987 49 SCREW, JD COATING P.T. S
5x16
R07 01 9 010843
21 WATER PUMP, GRUNDFOS R04 13 9 026993 50 BOLT HEX M8x20 R07 03 4 003822
22 CLAMP, EXPANSION TANK R01 01 4 054754 51 WASHER, SPRING R07 04 4 002246
23 EXPANSION TANK 8L R05 01 4 001497 52 NUT, C/W FLANGE M8 R07 02 4 059149
24 BRACKET, DEF. PRESS SWITCH R01 01 4 096131 53 RUBBER GROMMET -
25 ASSY, SIDE PANEL LEFT (MAIN) R50 01 4 085865 54 SPACER -
26 ASSY, SIDE PANEL RIGHT
(MAIN)
R50 01 4 085866 55 SCREW, PHILIP PAN HEAD
M6x15mm
R07 01 4 010157
27 STRUCTURE, BACK L/R R01 01 4 083991 56 WASHER, SPRING R07 04 4 003769
28 PANEL, RIGHT ORIFICE R01 01 4 083986 57 WASHER, FLAT R07 01 4 003768
29 PANEL, LEFT ORIFICE R01 01 4 083985
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
