McQuay MHC Standard Range User Manual

Page 12 of 36 / IM 985-1
Electrical Connections
Note: Installation and maintenance must be
performed only by qualified personnel who are
familiar with local codes and regulations, and are
experienced with this type of equipment.
Standard Electrical Connection
Each chassis comes with a junction box mounted on the
side of the chassis and contains the field electrical
connection (Figure 10).

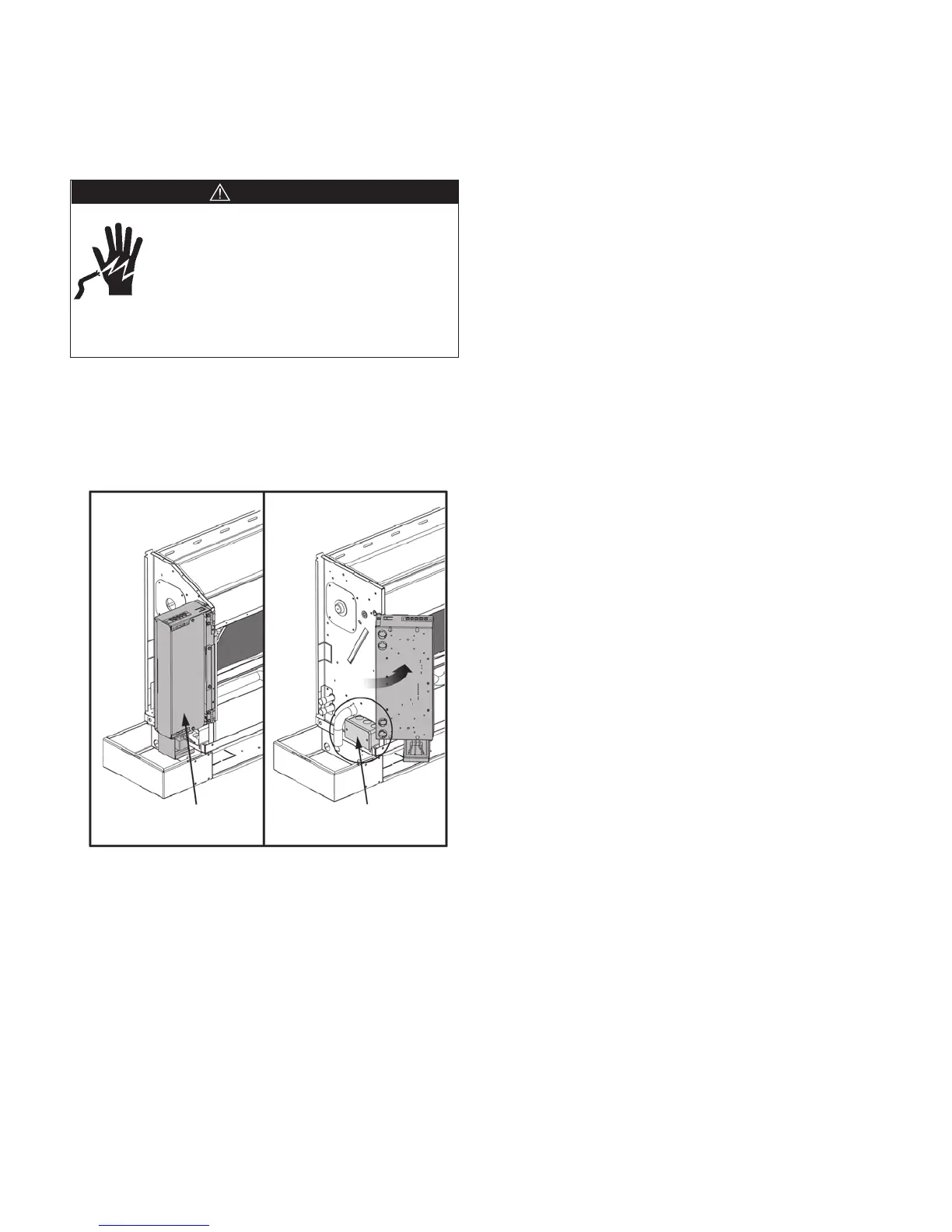

Figure 10. Junction Box Location
Note: If electrical wiring or conduit comes through
the oor, all wires or conduit should be sealed at
this point. It will prevent any condensation or water
leakage that may occur due to lack of preventive
maintenance. Each unit has an internal condensate
trap but will require cleaning.
Note: Wiring coming through the wall should be
sealed to stop cold air inltration through the wall
cavity which could affect unit thermostat operation.
Remove the junction box cover, selecting the proper
knockout and remove it. Install a strain relief and pass
the wires through the strain relief into the junction
box making the connection and reinstall the junction
box cover.
Note: Check the local code concerning correct
electrical connection.
Cord & plug electrical connection (field installed)
Cord connected equipment comes with a box and
appropriate voltage receptacle. However, a disconnect
switch and fuses can also be provided in the box. As an
option, the box comes factory mounted and is ready to be
eldwiredtotheincomingpower.Theboxismounted
on the same side as the piping.
It is the responsibility of the installing contractor to make
the proper electrical connection to the electrical box, using
the
same method as described in the standard electrical
connection.
WARNING
Hazardous Voltage!
The installer must determine and follow
all applicable codes and regulations. This
equipment presents hazards of electricity,
rotating parts, sharp edges, heat and weight.
Failure to read and follow these instructions
can result in property damage, severe personal
injury or death.
Junction Box
Control Enclosure
