Page 22 of 36 / IM 985-1
T
able B
208V RED
230V ORG
Drawing No. 669539006A
Note: Wiring diagrams are typical. For the latest drawing version
refer to the wiring diagram located on the inside of the controls
access panel of the unit.
Legend
Item Description
C1 Capacitor-Compressor
C2 Capacitor-Fan
CC Compressor Contactor
CM Compressor - Motor
COS Condensate Overow Sensor
DPG Drain Pan Ground
FSR Fan Speed Relay
HP High Pressure Switch
R2 Relay - Electric Heat
IOEXP I/O Expansion Board / Harness
LED2 LED Annunciator / Harness
SLTS Suction Line Temp Sensor
OVL Compressor Overload Protector
RV Reversing Valve Solenoid
T1 EG2UCP Terminal Strip
X1 Transformer
LED1 LED Annunciator / Harness
FHS Fan High Speed Relay
UMT Unit-Mounted Thermostat
EWT Entering Water Temp Sensor

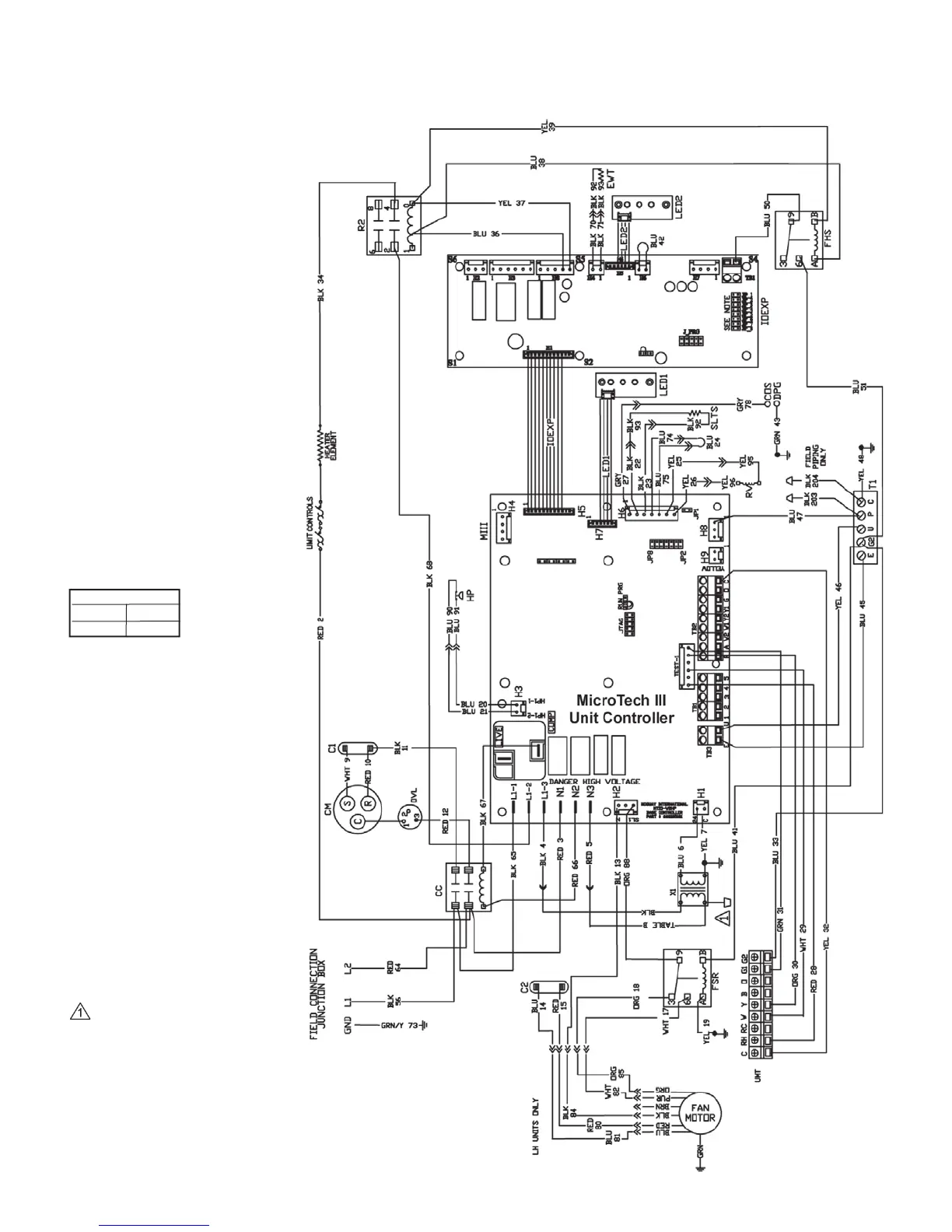

Typical Wiring Diagrams
MicroTech III Unit Controller With Electric Heat for Size 018
208/230/60Hz/1-Phase
Notes:
Transformer:
Unused wire to be capped.
2. Unit wired for 208V, see Table “B”
3. I/O Expansion board jumper JP4 shorted.
