INSTALLATION LOCATION
• Installation work should be done by the authorized dealer or qualified contractor. Never install the unit yourself.
• Make sure there is sufficient space for airflow around the unit. The discharged air should be directed outside using a duct
should the unit be installed in a plant room.
• Vibration isolator should be provided to prevent vibration and noise from the unit.
• When installing the unit on the ground, make sure the selected site is not subject to flooding.
• There should be sufficient space allocated for ventilation, servicing and maintenance when installing the unit. Refer to the
following figures for proper location.

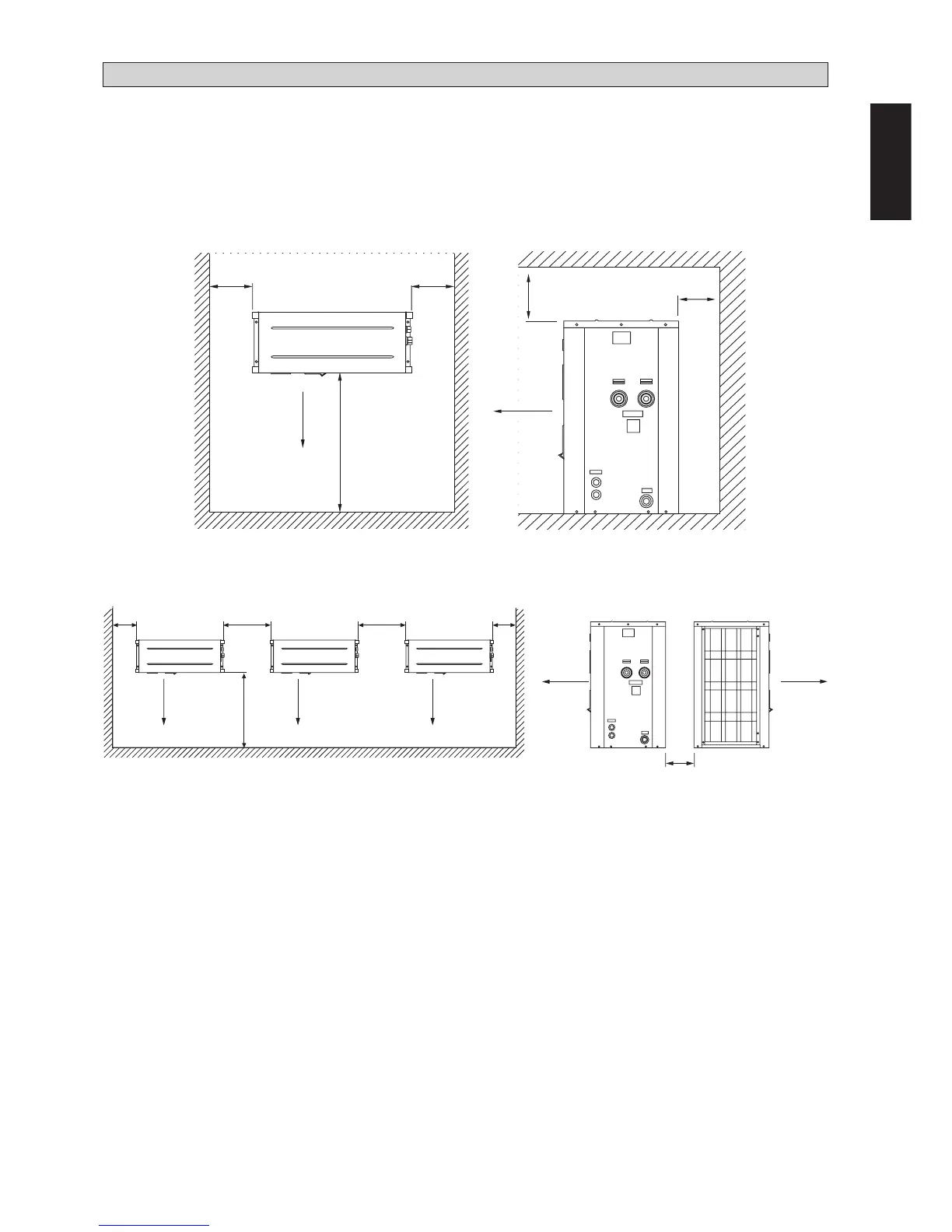

Figure 2: For single unit installation
AIR FLOW
AIR FLOW
MIN 500
Figure 3: For multiple unit installation
AIR FLOW
AIR FLOW
AIR FLOW
AIR FLOW AIR FLOW
MIN 500
