5AC 020/025 CR
UNIT INSTALLATION
!!
!!
! CAUTION
• Improper handling of unit during installation could result in leaks, electrical shock or unit malfunction.
• Contact your dealer for reinstallation or dismantling of unit.
• Do not introduce foreign objects such as fingers, sticks etc. into the air inlet and air outlet.
• Do not climb or place objects on top of mini chiller.
50 50
100

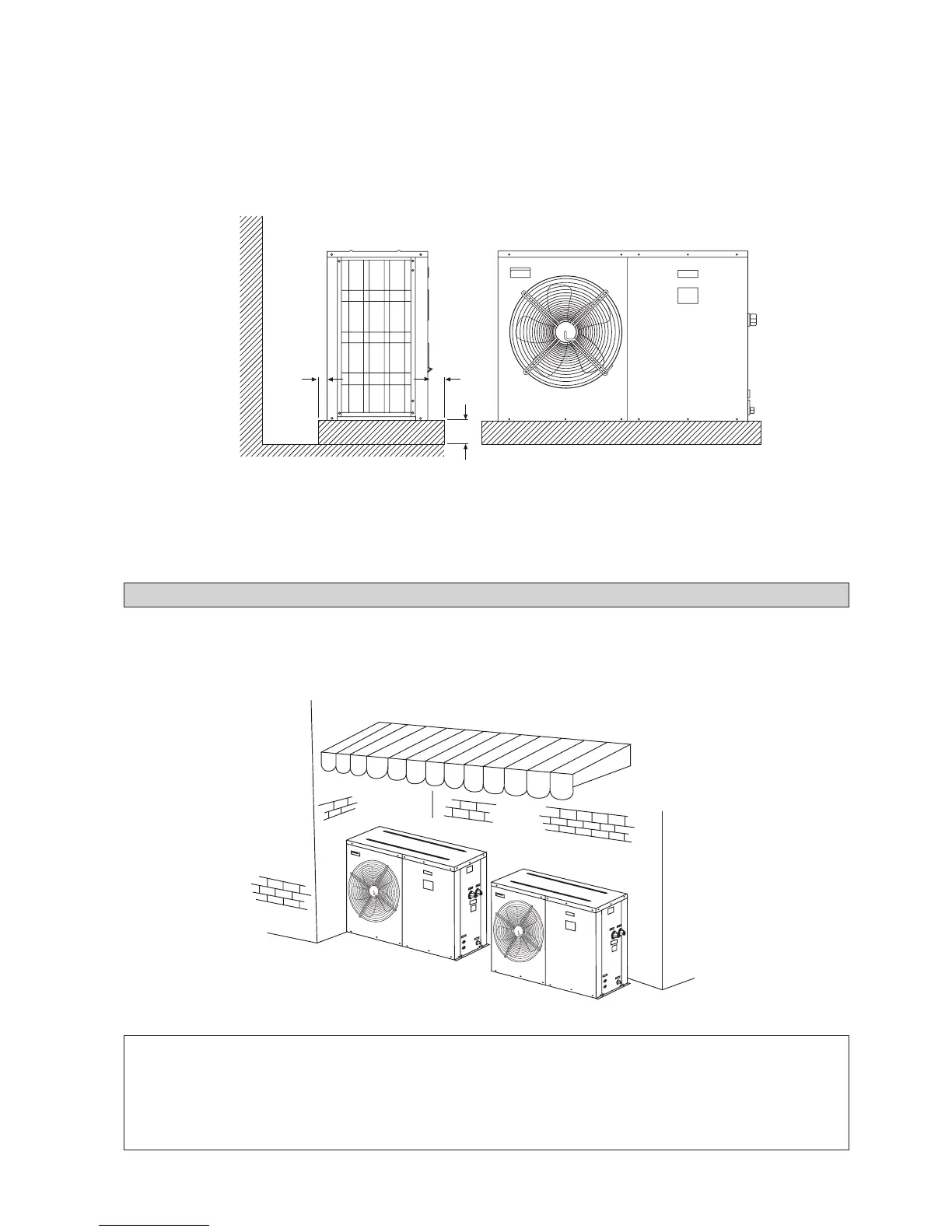

Figure 4: For floor installation
Note: All units are in mm unless specified.
• Unit subjects to floor installation must be placed on a concrete slab. The slab must have thickness of 100mm and 50mm
wider and longer than the footprint of the unit (Figure 4). Place the concrete slab a distant from building to prevent
vibration and noise.
• In the case of heatpump operation with an outdoor temperature below 0°C, the unit must be installed at least 300mm above
ground level. This is necessary to prevent ice from accumulating on the frame and to permit proper operation in the event
of heavy snowfalls.
• The unit must be leveled on both axes. (Tolerance is less than 2mm per meter.)
