C1 Capacitor, Indoor Fan C2 Capacitor, Outdoor Fan C3 Capacitor, Compressor GRC Guest Room Control HL High Limit HTR Heater MP Motor Protector NSP Night Setback Control P1 Plug, Control Box/Heat Section to Cool Section R1 Relay, Heat R2 Relay, Cool R3 Relay, Night Setback (NSB)
R4 Relay, Guest Room Control (GRC) R5 Relay, Hot Water Valve R6 Relay, Control R7 Relay, Night Setback (NSB) S1 Control Switch S2 Fan Speed Switch S3 Fan Cycle Switch S4 Damper Switch T1 Transformer TB1 Terminal Block, Control Box TB2 Terminal Board (24V), Control Box TB3 Terminal Board, Heat Section TB4 Terminal Board, Cool Section TB6 Terminal Box
TC1 Room Thermostat TC2 Night Setback Thermostat (NSB) TC3 Heat Fan Lockout TC4 Low Ambient Lockout VM Valve Motor WN Wire Nut
COOL SECTION CONTROL BOX HEAT SECTION

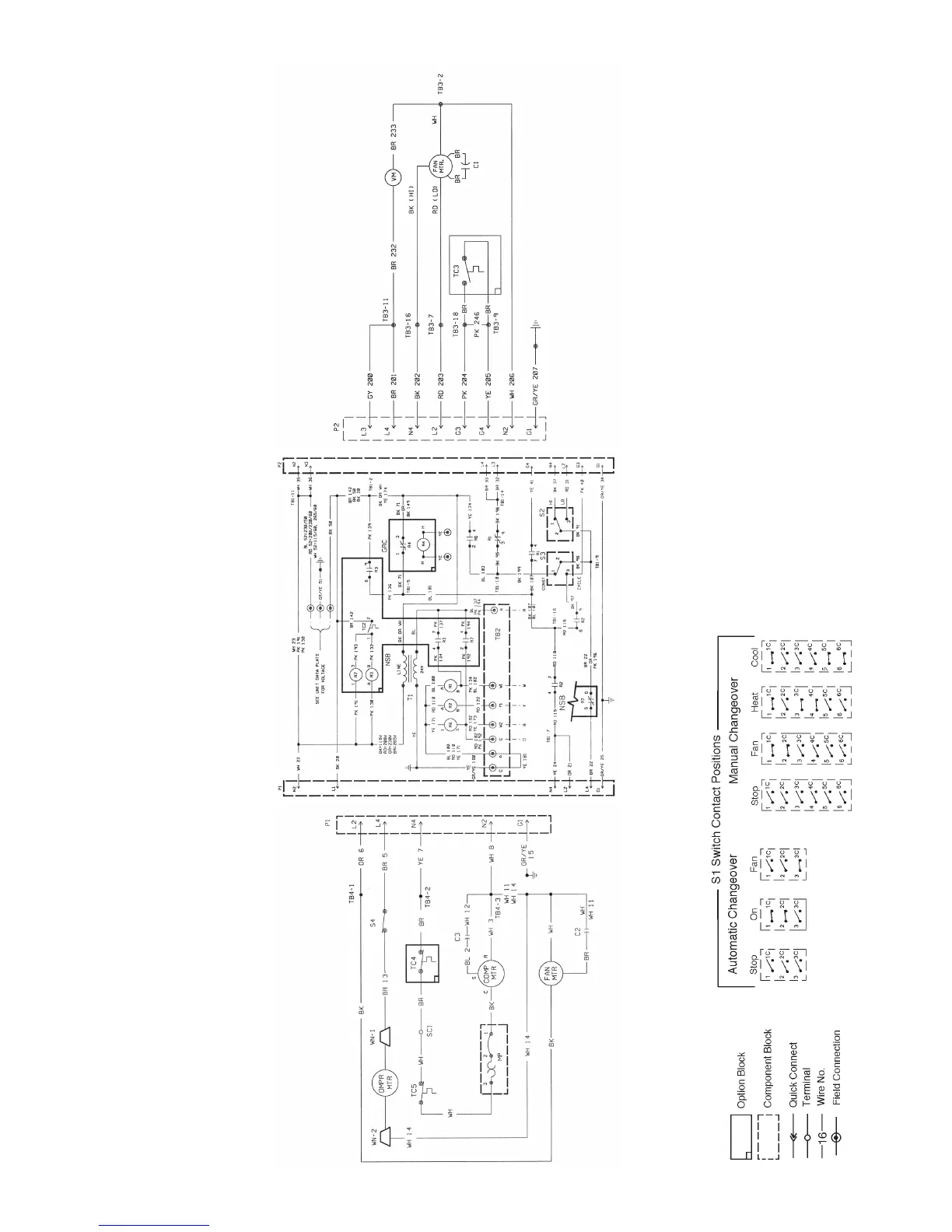

Standard Chassis With Hot Water Heat & 24V Wall Stat (Sizes 007—012)
