IM 1068 / Page 10 of 32
A D E F G H J K M
in.
45
3
⁄
4
37 17
3
⁄
4
24
1
⁄
2
13
11
⁄
16
22
7
⁄
8
10 9
3
⁄
16
1
1
⁄
2
mm 1162 940 451 622 348 581 254 233 38
Notes:
Guest room control, low voltage or master-slave wiring connection made at
control box.
4" × 24" (102mm × 51mm) wall space for electrical conduits except behind
junction box.
Junction box with knockouts for 1/2'' (12mm) 3/4'' (19mm) conduit.
See Table 5 for dimension B.
B

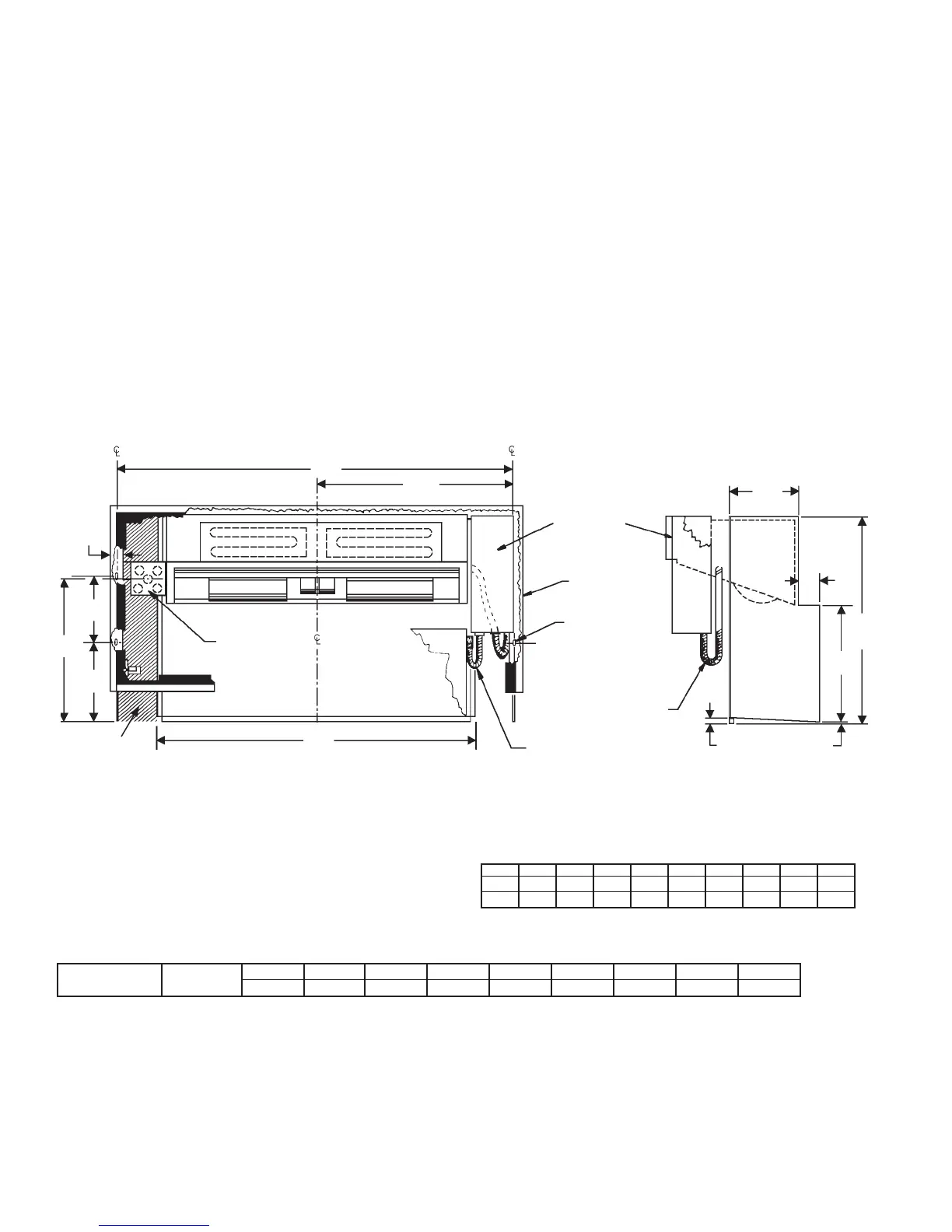

Figure 12: Electric Heat Section (Sizes 007 through 012)
Front View
Side View
A
M
E
K
J
H
Long Control
Box
D
Room Cabinet
Mounting Holes (4)
Room Cabinet
Heat Section
Power Cord
8"
(203mm)
G
1
⁄
2
''
(12mm)
1
⁄
4
''
(6mm)
Wall Box
Cooling Chassis
Power Cord
F
Electric Power Wiring
Before making any electrical connections, observe the
following precautions:
1. Check the nameplate rating of the heat section and
cooling chassis to make sure the equipment is connected
to the proper power supply and that proper fusing is used.
2. In cases where a number of conditioners are to be
installed, single circuits should be provided for each
machine.
3. A separate disconnect is recommended for each
conditioner in addition to individual fusing. This can be
accomplished in several ways:
a. By installing a remote double-pole switch in the
conditioner’s power line within sight of the unit.
b. By installing a double pole, single throw “on-off”
switch located in a convenient position within the
room cabinet.
After all these precautions are observed, proceed as follows:
Units With Electric Heat (Sizes 007–012)
A 4" x 4" electrical junction box is located on the left side of
the heat section. Field wiring should be brought to this point
for power to the unit. See Figure 12 & 13.
Table 5: Wall Box “B” Dimensions
Table 4: Electric Heat Section Dimensions
Wall Box Size 2
1
⁄
2
" 3
1
⁄
2
"
4" 5" 6" 7" 8" 9" 10"
“B” Dimension 007–012 64 mm 89 mm 102 mm 127 mm 152 mm 178 mm 203 mm 229 mm 254 mm
