54 Product Manual WHR-2

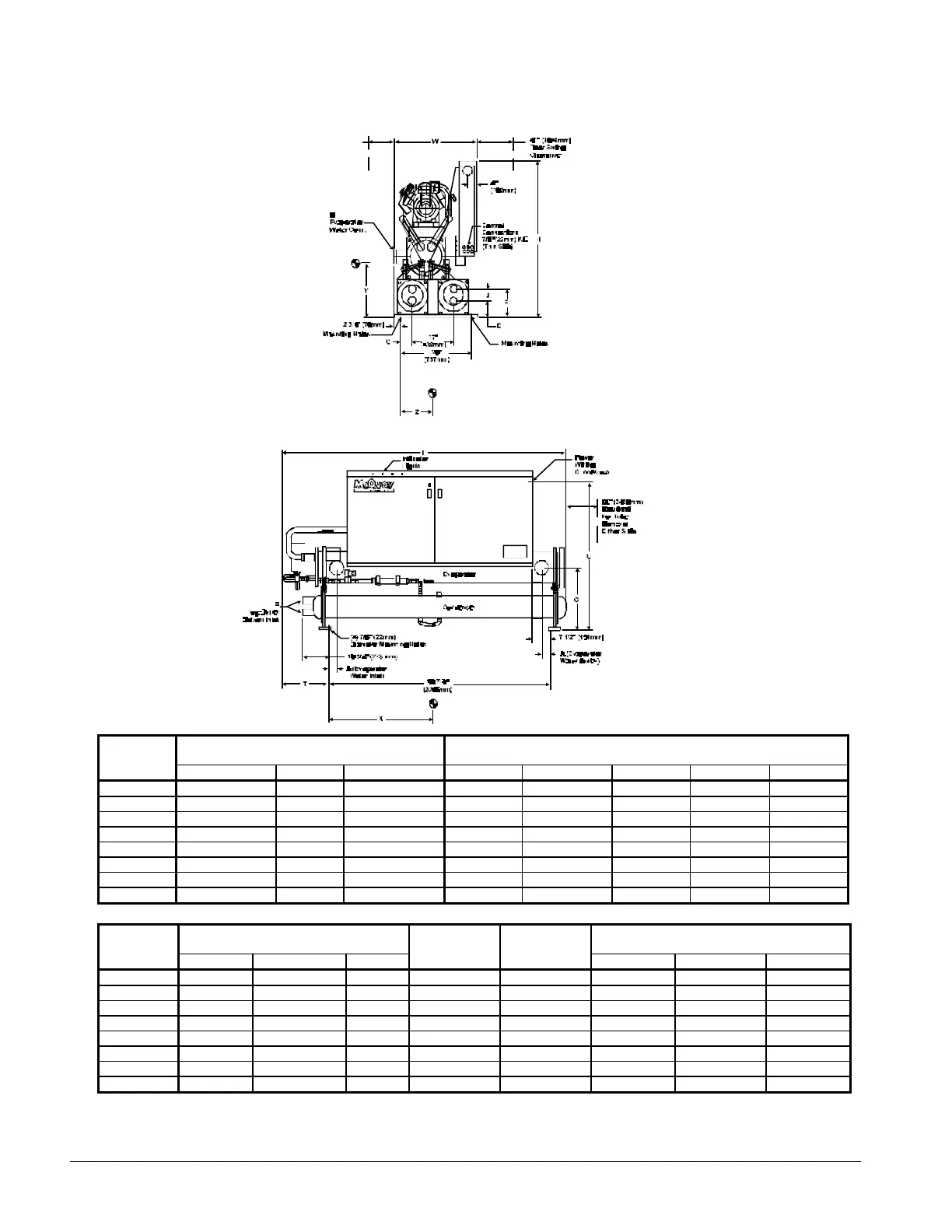

Figure 7, WHR 040EW through WHR 090EW
Maximum Overall
Dimensions
Condenser Water
Connections (NPT)
WHR
MODEL
NUMBER
L W H E F G J P
040EW 116-7/8 (2969) 34 (864) 62-1/4 (1581) 6-5/8 (168) 11-3/8 (289) 4-3/4 (121) 4-3/4 (121) 2-1/2 (64)
045EW 116-7/8 (2969) 34 (864) 62-1/4 (1581) 6-5/8 (168) 11-3/8 (289) 4-3/4 (121) 4-3/4 (121) 2-1/2 (64
050EW 116-7/8 (2969) 34 (864) 62-1/4 (1581) 6-5/8 (168) 11-3/8 (289) 4-34 (121) 4-34/ (121) 2-1/2 (64)
060EW 116-7/8 (2969) 34 (864) 63-3/4 (1619) 6-5/8 (168) 11-3/8 (289) 4-3/4 (121) 4-3/4 (121) 2-1/2 (64)
070EW 116-7/8 (2969) 34 (864) 63-3/4 (1619) 6-5/8 (168) 11-3/8 (289) 4-3/4 (121) 4-3/4 (121) 2-1/2 (64)
080EW 116-7/8 (2969) 34 (864) 63-3/4 (1619) 6-5/8 (168) 11-3/8 (289) 4-3/4 (121) 4-3/4 (121) 2-1/2 (64)
085EW 115-3/4 (2940) 34 (864) 66-1/4 (1683) 7-1/2 (191) 13-1/8 (333) 5-3/4 (146) 5-5/8 (143) 3 (76)
090EW 115-3/4 (2940) 34 (864) 66-1/4 (1683) 7-1/2 (191) 13-1/8 (333) 5-3/4 (146) 5-5/8 (143) 3 (76)
Evaporator Water
Connections (Victaulic)
Center of
Gravity
WHR
MODEL
NUMBER
A C D T U X Y Z
040EW 2-3/4 (70) 23-3/8 (594) 4 (102) 19-5/8 (498) 58-1/8 (1476) 42-5/8 (1089) 23 (584) 13 (330)
045EW 2-3/4 (70) 23-3/8 (594) 4 (102) 19-5/8 (498) 58-1/8 (1476) 42-5/8 (1089) 23 (584) 13 (330)
050EW 2-3/4 (70) 23-3/8 (594) 4 (102) 19-5/8 (498) 58-1/8 (1476) 42-5/8 (1089) 23 (584) 13 (330)
060EW 3-1/2 (89) 24-7/8 (632) 5 (127) 19 5/8 (498) 59-5/8 (1495) 43 (1092) 25-1/8 (638) 12-3/4 (324)
070EW 3-1/2 (89) 24-7/8 (632) 5 (127) 19-5/8 (498) 59-5/8 (1495) 43 (1092) 25-1/8 (638) 12-3/4 (324)
080EW 3-1/2 (89) 24-7/8 (632) 5 (127) 19-5/8 (498) 59-5/8 (1495) 43 (1092) 25-1/8 (638) 12-3/4 (324)
085EW 3-1/2 (89) 27-1/8 (689) 6 (152) 18-1/2 (470) 62-1/8 (1578) 48 (1219) 23 (584) 13 (330)
090EW 3-1/2 (89) 27-1/8 (689) 6 (152) 18-1/2 (470) 62-1/8 (1578) 48 (1219) 23 (584) 13 (330)
Note: Control box size: 76” (1930mm) L x 38½” (978mm) H x 7¼” (184mm) D.
