Product Manual WHR-2 59

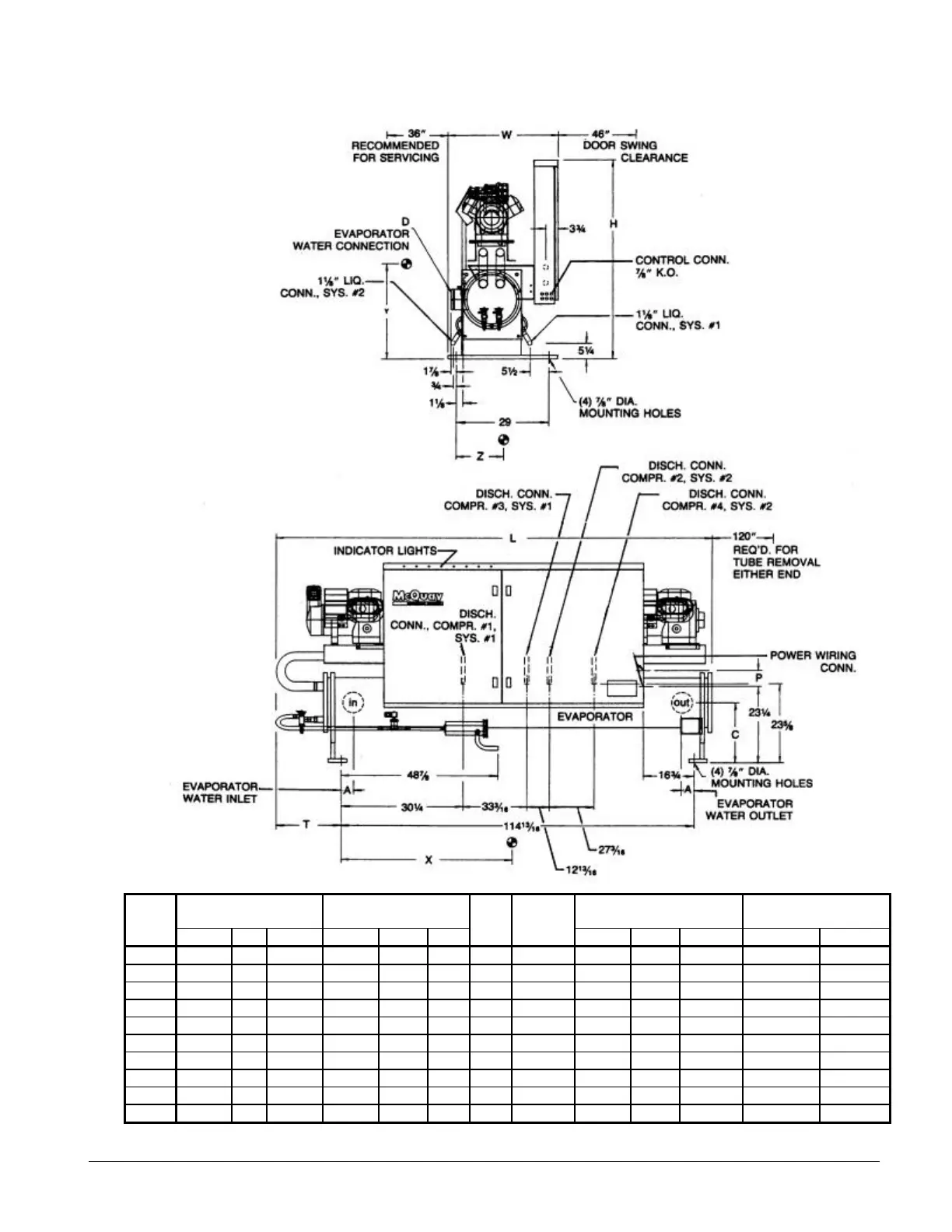

Figure 12, Dimensions, WHR 120EA – WHR 175EA
Maximum Overall
Dimensions
Evap. Water Conn.
(Victaulic)
Center of Gravity Refrigerant Connections
WHR
MODEL
NO.
L W H A C D P T X Y Z Liquid Disc.
095EA 142 3/4 34 64 3/4 5 1/2 18 6 6 20 5/8 54 1/2 28 3/4 13 1/8 1 1/8 O.D. 1 5/8 O.D.
100EA 142 3/4 34 64 3/4 5 1/2 18 6 6 20 5/8 54 1/2 28 3/4 13 1/8 1 1/8 O.D. 1 5/8 O.D.
110EA 142 3/4 34 64 3/4 5 1/2 18 6 6 20 5/8 54 1/2 28 3/4 13 1/8 1 1/8 O.D. 1 5/8 O.D.
115EA 142 3/4 34 64 3/4 5 1/2 18 6 6 20 5/8 55 1/2 28 3/4 13 1/8 1 1/8 O.D. 1 5/8 O.D.
120EA 142 3/4 34 64 3/4 5 1/2 18 6 6 20 5/8 55 1/2 29 13 1/8 1 1/8 O.D. 1 5/8 O.D.
130EA 142 3/4 34 64 3/4 5 1/2 18 6 6 20 5/8 55 3/8 29 1/8 13 1 1/8 O.D. 1 5/8 O.D.
145EA 142 3/4 34 64 3/4 5 1/2 18 6 6 20 5/8 56 1/4 29 3/4 13 1 1/8 O.D. 1 5/8 O.D.
155EA 142 3/4 34 64 3/4 5 1/2 18 6 6 20 5/8 55 3/4 29 3/4 12 7/8 1 1/8 O.D. 1 5/8 O.D.
165EA 142 34 64 3/4 5 1/2 18 6 6 20 5/8 55 3/4 30 1/2 12 7/8 1 3/8 O.D. 1 5/8 O.D.
175EA 142 34 64 3/4 5 1/2 18 6 6 20 5/8 55 3/4 30 1/2 12 7/8 1 3/8 O.D. 1 5/8 O.D.
