60 Product Manual WHR-2

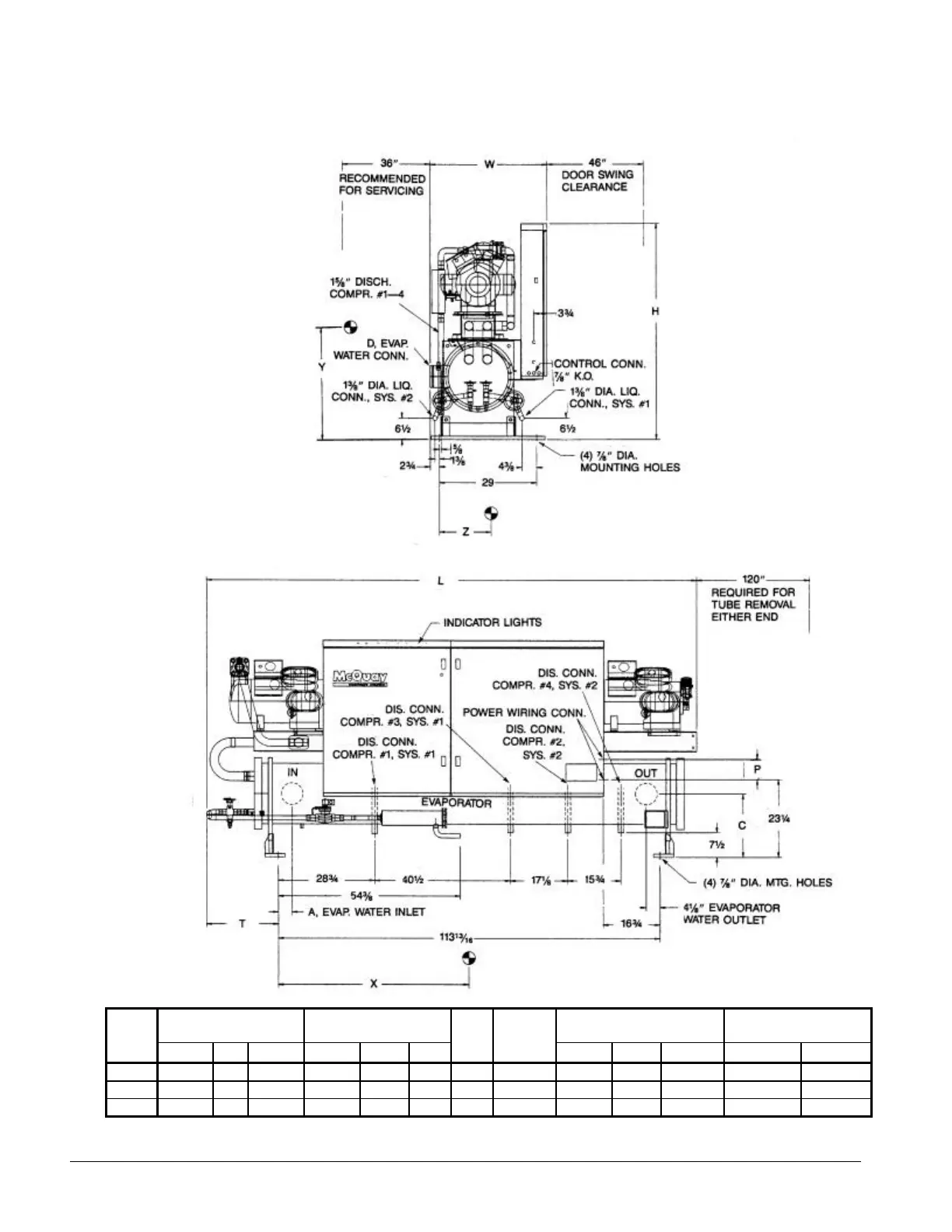

Figure 13, Dimensions WHR 185EA, 195EA, 210EA
Maximum Overall
Dimensions
Evap. Water Conn.
(Victaulic)
Center of Gravity Refrigerant Connections
WHR
MODEL
NO.
L W H A C D
P T
X Y Z Liquid Disc.
185EA 145 7/8 35 64 3/4 4 1/8 19 6 6 21 3/8 54 32 1/2 16 1 3/8 O.D 1 5/8 O.D.
195EA 145 7/8 35 64 3/4 4 1/8 19 6 6 21 3/8 54 32 1/4 16 1 3/8 O.D 1 5/8 O.D.
210EA 145 7/8 35 64 3/4 4 1/8 19 6 6 21 3/8 54 32 16 1 3/8 O.D 1 5/8 O.D.
