Water-Cooled Condensers
All water-cooled condensers are cleanable shell and tube type with water in the tubes and refrigerant
in the shell. Each condenser is capable of holding the circuit pumpdown capacity. Independent
condensers serve the dual refrigerant circuits.
Each condenser is constructed with a carbon steel shell and seamless integrally finned high efficiency
copper tubes roller expanded into steel tubesheets. Water heads have vent and drain connections
and are removable. Also included is a liquid shutoff valve, purge valve, 450 psi (3104 kPa) relief valve
per ANSI/ASHRAE Pressure Vessel Code, Section VIII.
Water side working pressure is 225 psi (1550 kPa), refrigerant side is 450 psi (3104 kPa).
Air-Cooled Condensers
The WHR-EA chillers are designed for use with
properly sized and configured remote air-cooled or

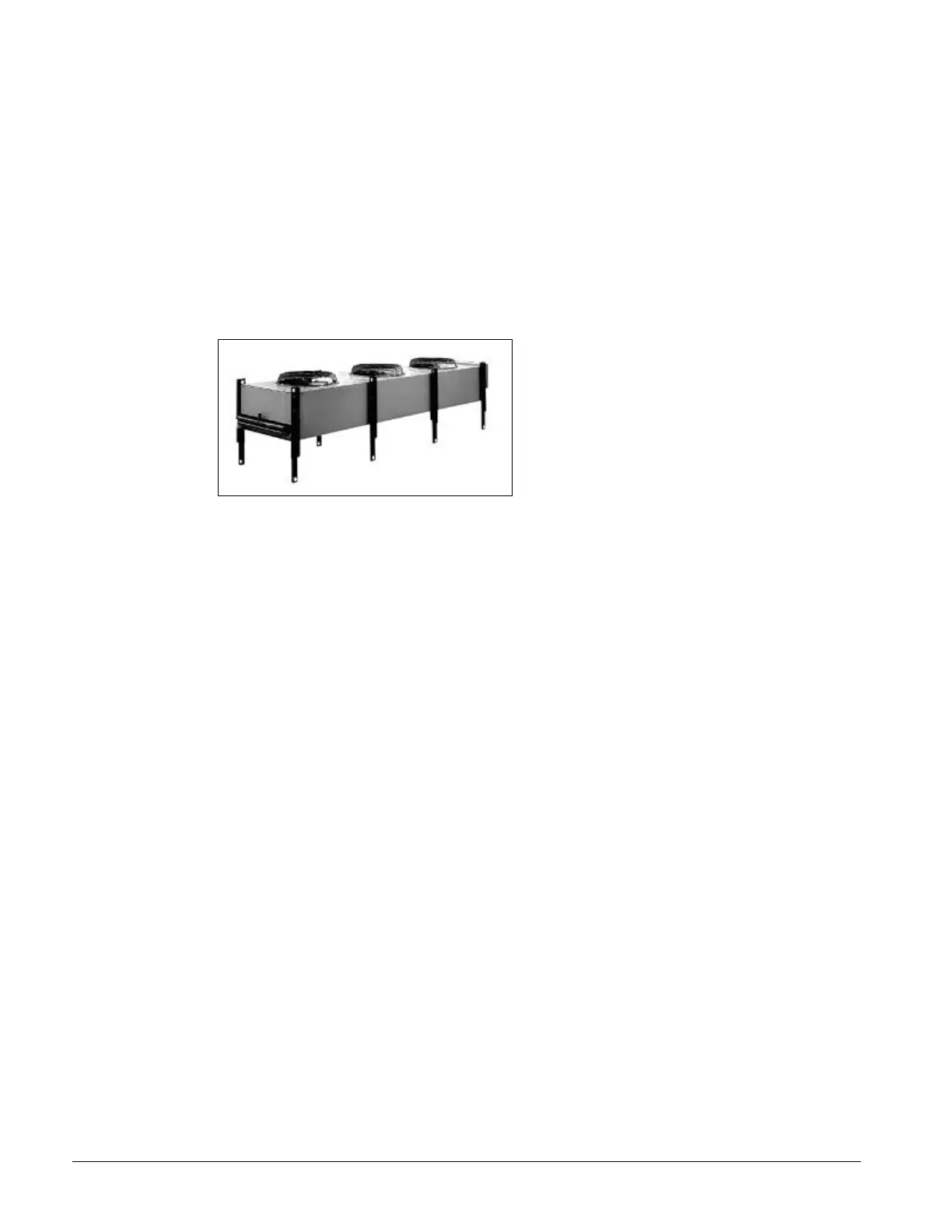

evaporative condensers. The McQuay AC/AQ line of
air-cooled condensers are designed for use with these
chillers. The AC/AQ condensers are available with
single or double row vertical discharge fans and are
fully described and rated in Product Manual PM
ACAQ. They are packed with features offering
tangible benefits to owners.
• Complete range of capacities from 10 to 210 tons
• Circuits matched to WHR chillers
• Direct drive fan motors at 1140 and 830 RPM
• Patented floating tube design to eliminate tube sheet leaks
• High efficiency coil and fan motor design
• Internal baffles between all fan cells
• Weatherproof control panel with door mounted disconnect switch
• G90 painted galvanized steel cabinets
• Single point power connection
• Independent fusing and contactors for each fan motor
• Integral pre-piped subcooler circuit
