Cable Requirements
CONNECTION TO THE MAIN
If the supply cord is damaged, it must be replaced by a special cord or assembly available from the
manufacturer, or its distributing / service agent.
• Operating voltage: 100-240 VAC, single phase. 50/60 Hz, 715 W nominal (550-1400 W).
• Ground / Earth connection REQUIRED.
• Cable: 2 mm
2
(14 AWG), 3-wire, 105 ˚C copper, 300 V
CE UL/CSA compliant cable

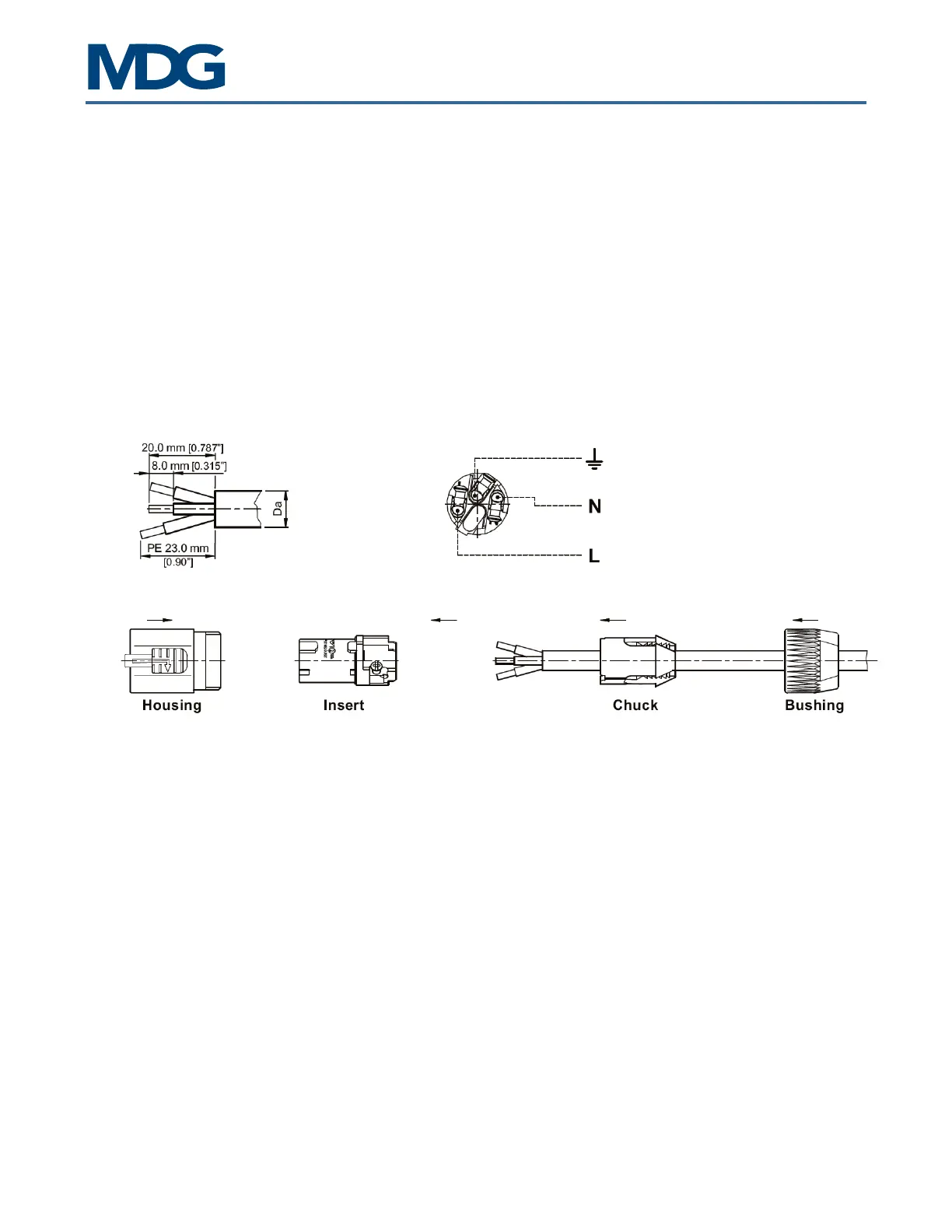

• Cable Preparation: Da = 9.5 [0.374”] - 15.0 [0.59”]
• Cable Assembly
1. Put bushing and chuck onto the cable
2. Prepare cable as shown above
3. Insert the wire into the terminals and fasten the clamping device by a flat screw driver
4. Push insert and chuck into housing (pay attention to the guiding keyway!)
5. Fasten bushing by means of a fork wrench ¾”, min. Torque 2.5 Nm (1.8 lb-ft)
DMX 512 CONNECTION
• DMX/RDM data: Dual twisted pair 0.75 mm (22 AWG) + shield, XLR-5 type connector,
CE UL/CSA compliant cable.
• Wiring XLR Connectors :
1 – Shield
2 - Signal (-)
3 - Signal (+)
4 – Not connected
5 – Not connected
