ATMe, Haze Generator
User Guide, Rev: C/e, March 2023 8 / 33
Installing the ATMe
Exercise caution when selecting the location to install or use this equipment:
• Install the MDG ATMe away from rain, wind, heavy dust or any harsh environment situations.
• Ensure available space for all electrical cable and gas tubing runs,
• The MDG ATMe requires 2 m (6.56 ft) of clearance to the front, and 1 m (3.28 ft) below the fan.
Fill the reservoir with MDG Neutral Fog Fluid (see Filling the fluid reservoir paragraph).
Connect the gas inlet to a gas bottle equipped with a single or double stage regulator. The gas inlet is an
Oxygen Adaptor (9/16-18 R.H).
Connect the data wiring (Male XLR-5 connector for DMX/RDM) if you are using a DMX or RDM controller.

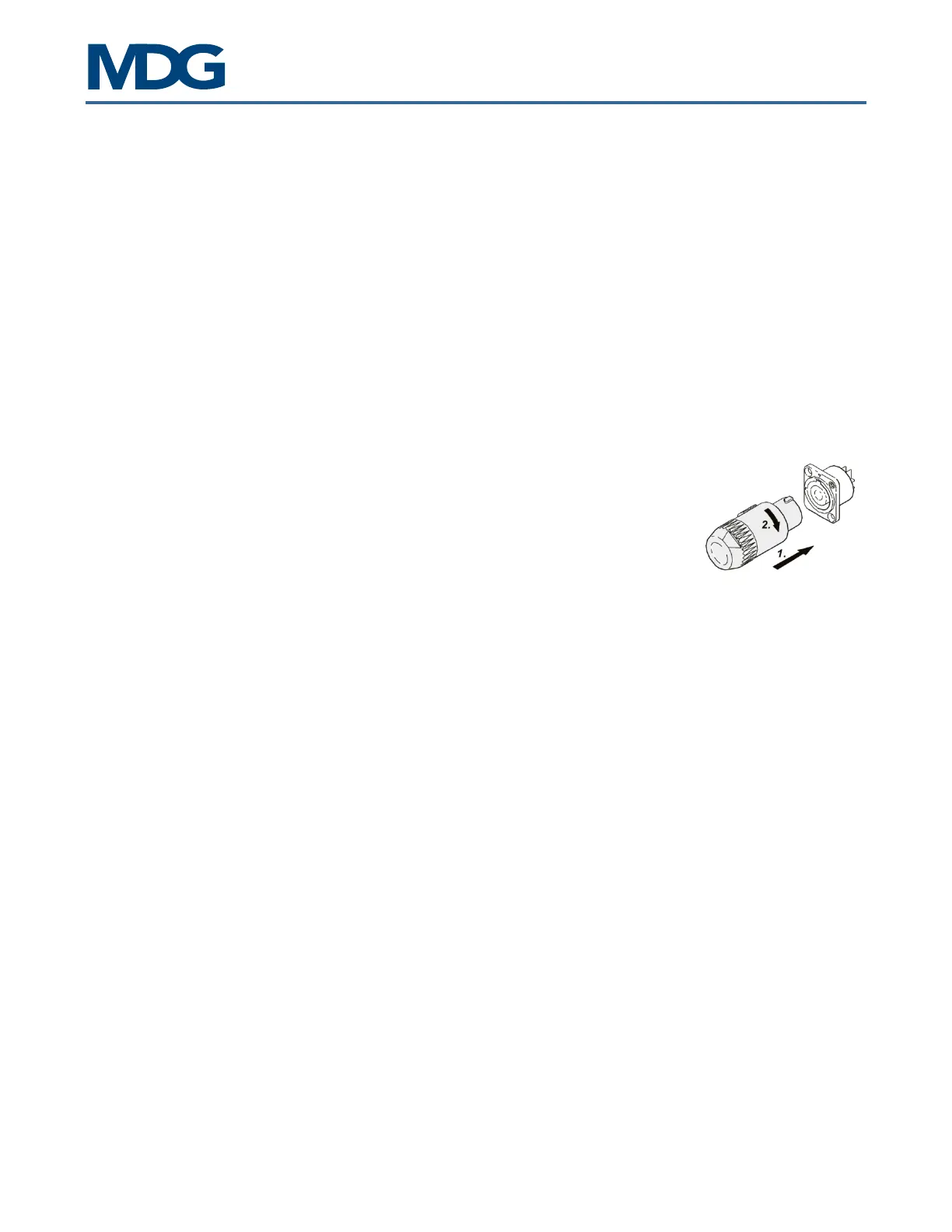

Plug the powerCON connector.
Connect the power cord 100-240 VAC, 50-60 Hz, 550-1400 W.
Open the gas bottle and set the pressure between 50 and 60 psi (3.5 and 4.1 bar,
or 350 and 410 kPa).
