Alternatively, if a command signal is unavailable, the user can manually enter the appropriate
signal for this actuator position by pressing the blue 0.00 digits in the “Manual Signal” field on the
right of the screen.

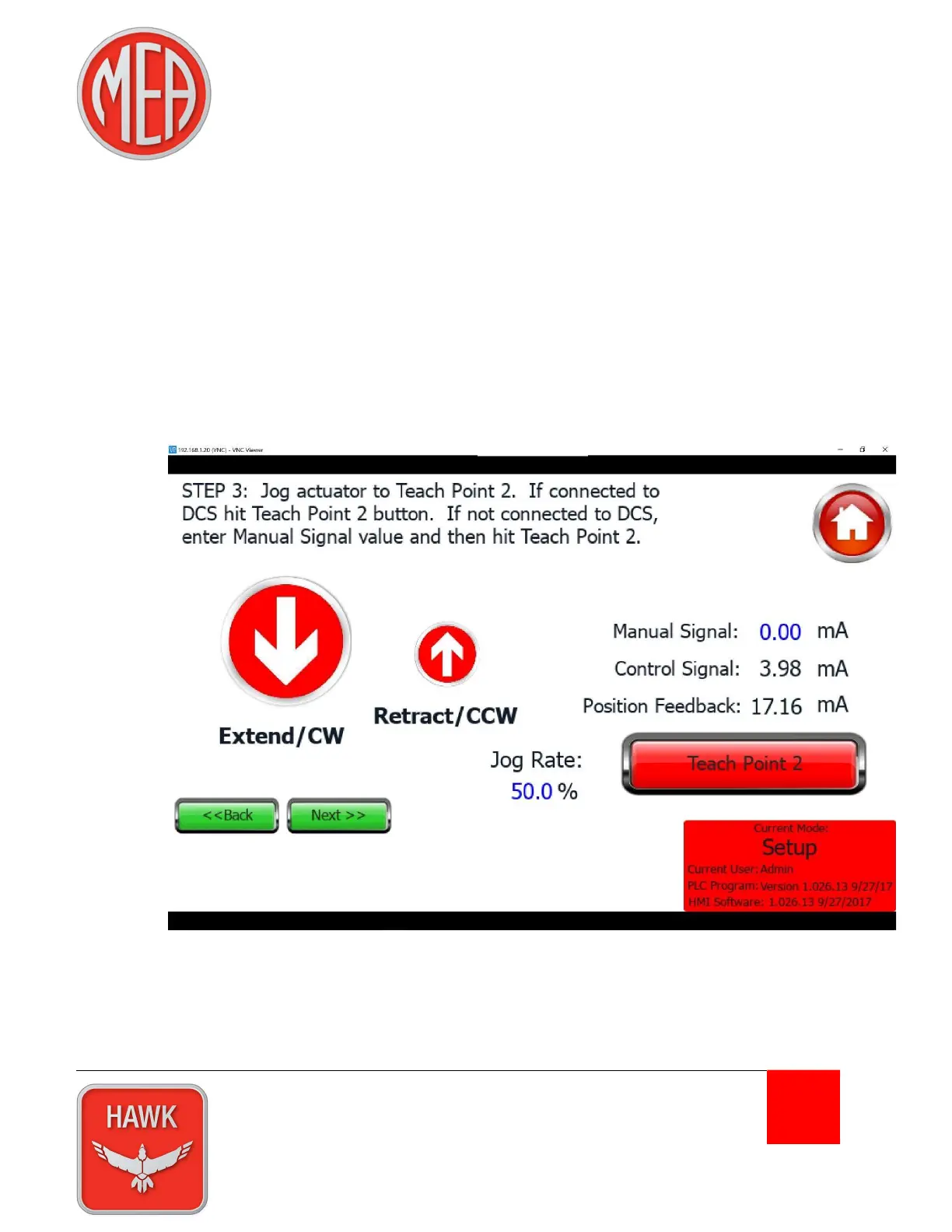

Press the “Teach Point 2” button to calibrate the Extended (or Clockwise) actuator position. If
successful a yellow “Teach Complete” box will appear in the upper right of the screen.
Actuator position calibration is now complete. Press the “Next” button to proceed to the Failure
Modes & Limit Switch Settings screen.
