DC30D GENSET CONTROLLER USER MANUAL
6
Programmable Relay output 2
1AMP Non-contact-Normal open--Normal close output
Programmable Relay output 3
1AMP Non-contact Normal Open output
Switch value input
Available if connecting with Battery -
Insulation strength
Apply AC1.5kV voltage between high voltage terminal
and low voltage terminal; The leakage current is not
more than 3mA within 1min.
Working condition
-25-65℃
Storage condition
-40-85℃
Protection Level
IP54：when waterproof rubber gasket is added between
controller and its panel
Overall dimension
106mm×86mm×45mm
Panel cutout
78mm×66mm
Weight
0.25Kg

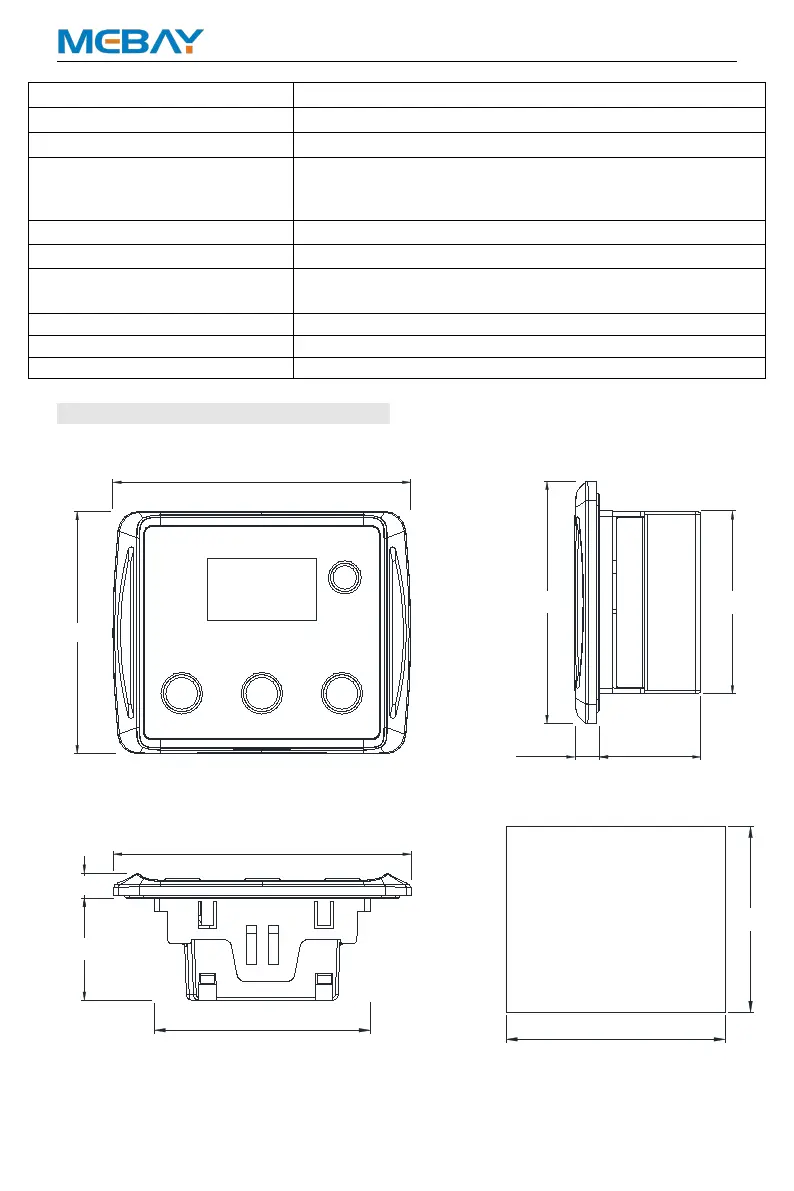

Overall Dimension and Wiring Diagram
 Overall Dimension:
106
86
86 65
8.8 36.2
106
8.8
36.2
77
78
66
 Descriptions of terminal connection
