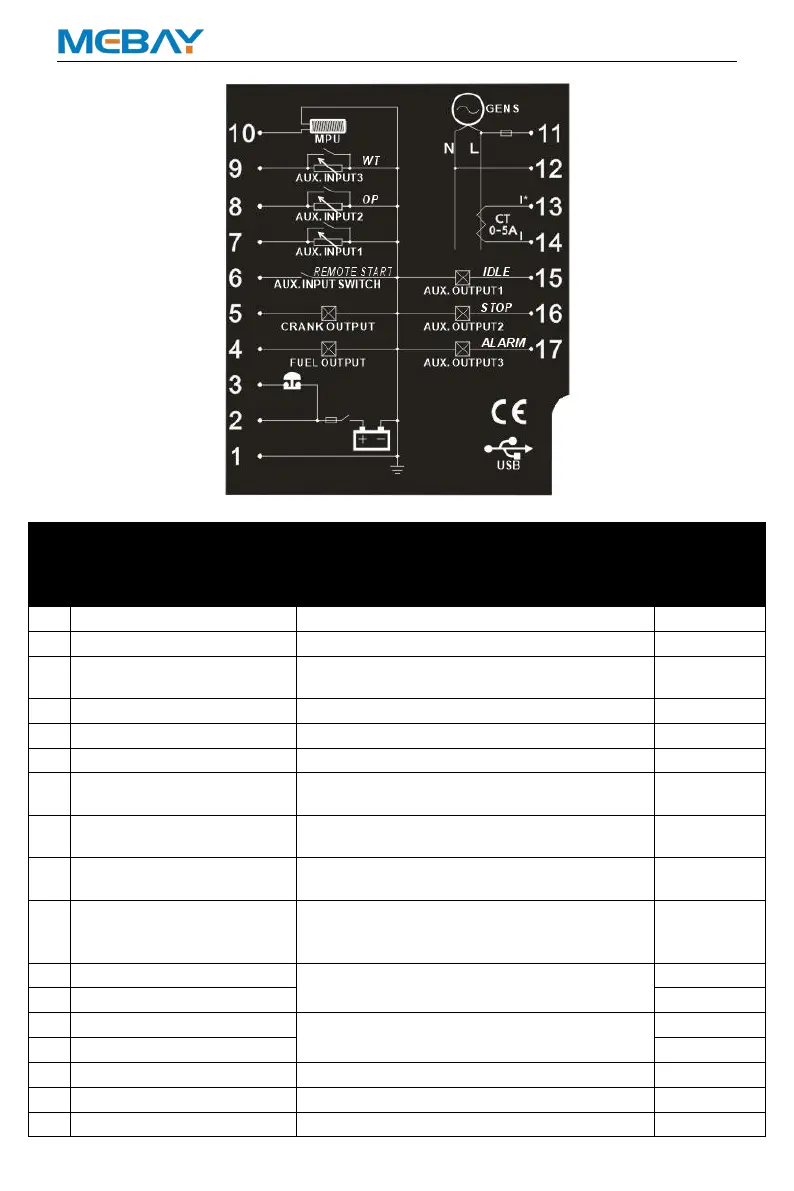

Mebay DC30D - Terminal Connection Details

DC30D GENSET CONTROLLER USER MANUAL
7
No.
Function
Description
Cable
cross
sectional
area
1
Battery Negative Input B-
Controller power supply input B-.
1.5mm
2
2
Battery Negative Input B+
Controller power supply input B+.
1.5mm
2
3
Emergency Stop Input
B+ voltage input is active, and connected
to emergency stop normal closed button.
1.0mm
2
4
Fuel Output
Rated current 1A; power supplied by PIN 2.
1.0mm
2
5
Crank Output
Rated current 1A; power supplied by PIN 2.
1.0mm
2
6
Remote Start Input
Ground connected is active (B-)
1.0mm
2
7
Aux. Input
Connect t fuel level sensor or switch input
according to function selection
1.0mm
2
8
Oil Pressure Input
Connect t Oil Pressure sensor or switch
input according to function selection
1.0mm
2
9
Engine Temp. Input
Connect temperature sensor or switch
input according to function selection
1.0mm
2
10
Magnetic Pickup
Connect to speed sensor, and shielded
wire is recommended. The other end of
speed sensor is connected to B-.
0.5mm
2
11
Generator Voltage L
Gens voltage Input，AC30-360V.
12
Generator Voltage N
1.0mm
2
13
Load CT Secondary I* (in)
Current Transformer Secondary Rated 5A.
1.5mm
2
14
Load CT Secondary I (out)
1.5mm
2
15
Aux. Ouput1
Rated current 1A; power supplied by PIN 2.
1.0mm
2
16
Aux. Ouput2
Rated current 1A; power supplied by PIN 2.
1.0mm
2
17
Aux. Ouput3
Rated current 1A; power supplied by PIN 2.
1.0mm
2
