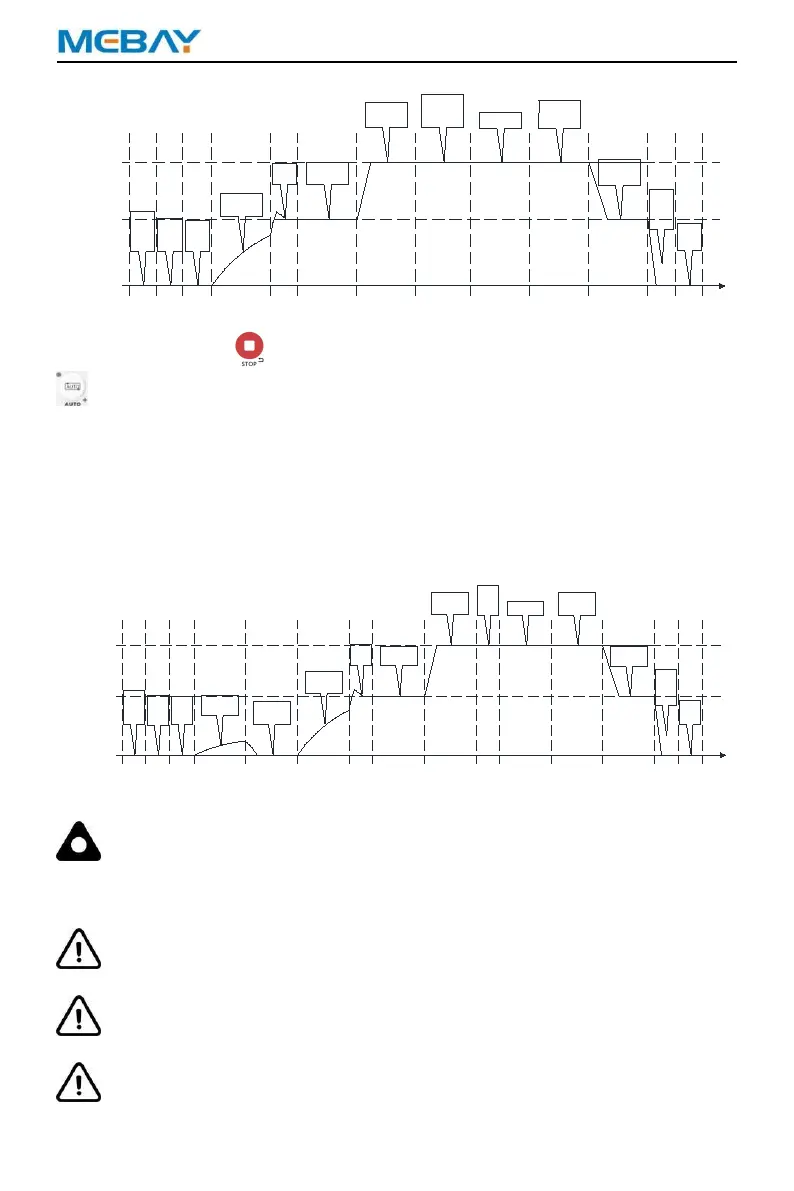

7) Automatic starting mode:
Press the "STOP" to ensure the stop gear before starting. Press "AUTO"
automatic gear indicator light on, at this time will wait for the remote start signal
to be valid, the unit will execute the start process in the following sequence. When
the unit enters the normal rated operation, the power generation closing relay will
output and switch to the power supply of the generating unit.
The controller will detect the remote start signal in real time. When the remote
start signal fails, the " Stop delay" will be executed. After the completion of the stop
delay, the engine high-speed " Cooling time" and the subsequent shutdown process
will be executed.
Auto start and stop process:
Auto
Start
delay
0RPM
Idle
Rated speed
Pre-
heat
delay
1S
0S
Start
Crank
delay
2S
Crank test
time
8S
Crank rest
time
8S
Cranking
time
10S
Safety
time
10S
Start idle
time
0S 10S
rated
runn-
ing
Stop delay
1S
Cooling
running time
10S
Stop idle
time
0S
ETS
solen-
oid
hold
10S
Fail to
stop
30S
Idle
Rated speed
Auto
Start
delay
Pre-
heat
delay
Warming-up
time
8) Notices in Starting Process
Note 1: During the Cranking time, the controller automatically detects the speed
signal, frequency signal (according to the parameter setting) to reach the judgment
condition of successful start, then the judgment is that the start is successful and the
motor relay is closed.
Note 2: Within the safety delay, only respond to emergency stop, immediate
stop, over speed, over frequency, other alarms are not responded to.
Note 3: No response to alarm and warning of under speed, low frequency,
under voltage during start idle time.
Note 4: No response to low frequency, under voltage is required when entering
the Warming-up time.
