DC32D GENSET CONTROLLER USER MANUAL
15
Manual Start
In stop mode turn the starter key from OFF to ON position to power on the
controller, then change the starter key position to START to begin cranking; after the
engine fires, release the starter key(crank disconnect condition is gen
frequency>14.0Hz), then the controller can monitor and display the relevant
parameters of the generator set in real time.
Manual stop
Under any circumstances, if starter key is turned from ON to OFF position, it will
lead to shutdown.
Please note before manually start:
1) Please make sure if the connection is right and meet requests.
2) There is fuse in the DC power of controller and make sure if the battery + and - are
connected rightly.
3) Please make sure if all the parameters are right and the oil pressure indicators are
in normal light.
4) Please take appropriate measurement so that the genset shall be stopped under
emergency.
5) Manual start mode:
Press the "STOP" to ensure the stop gear before starting. Press "START"
start gear indicator light on, at this time will detect the normal connection of each
sensor, if the sensor is open, then report the sensor open alarm, if normal, then
execute the start-up process of the unit. When the unit is running normally, press the
"STOP" and the controller will perform the parking process in the following
sequence:

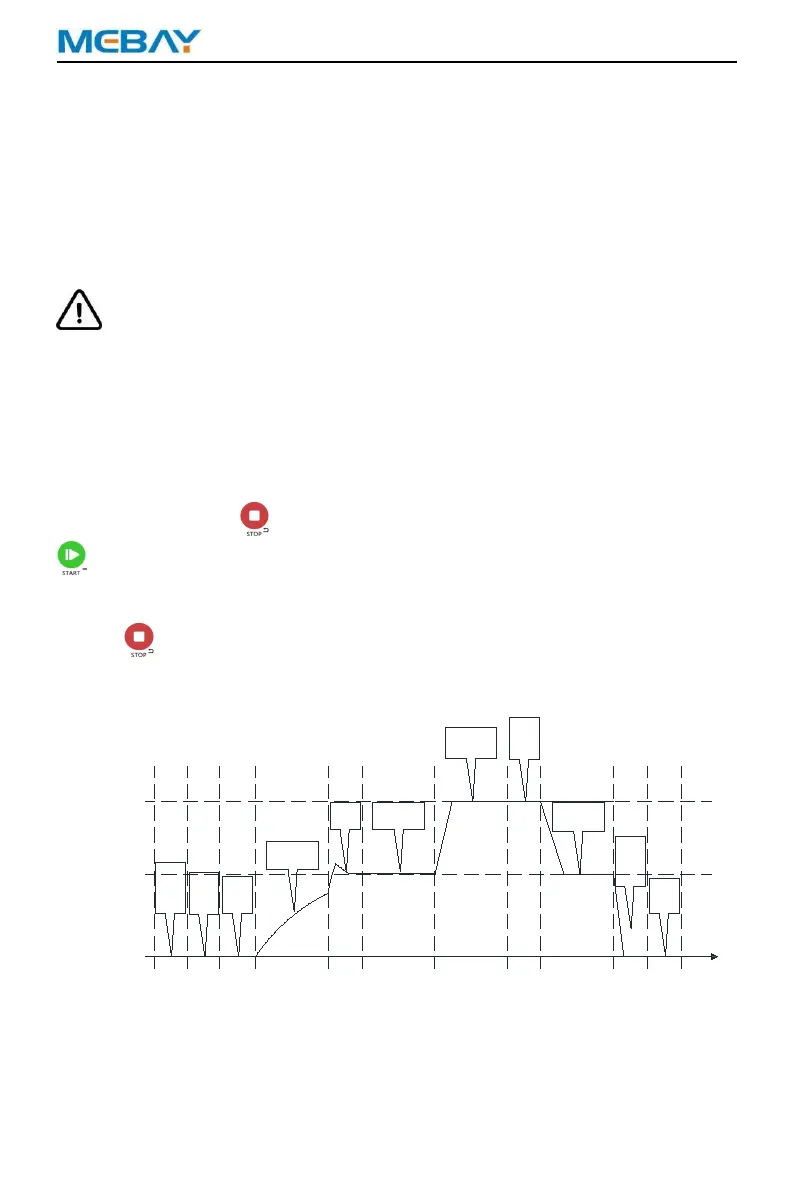

Manual start and stop process:
Warming-up
time
Man-
ual
Start
0RPM
Idle
Rated speed
0S
2S
8S
10S
0S 10S 0S
10S 30S
Pre-
heat
delay
Start
Crank
delay
Crank test
time
Safe
time
Start idle
time
rated
runn-
ing
Stop idle
time
Wait
Stop
ETS
solen-
oid
hold
6) After the manual start is successful, pressing the "automatic key" can be converted
into an automatic file. The specific working time is as follows:
