Mec 2633ES - Hydraulic Manifold - early style

October 2008 "2033ES / 2633ES" Service & Parts Manual - ANSI Specifications
Page 5-6
ART_2196
none

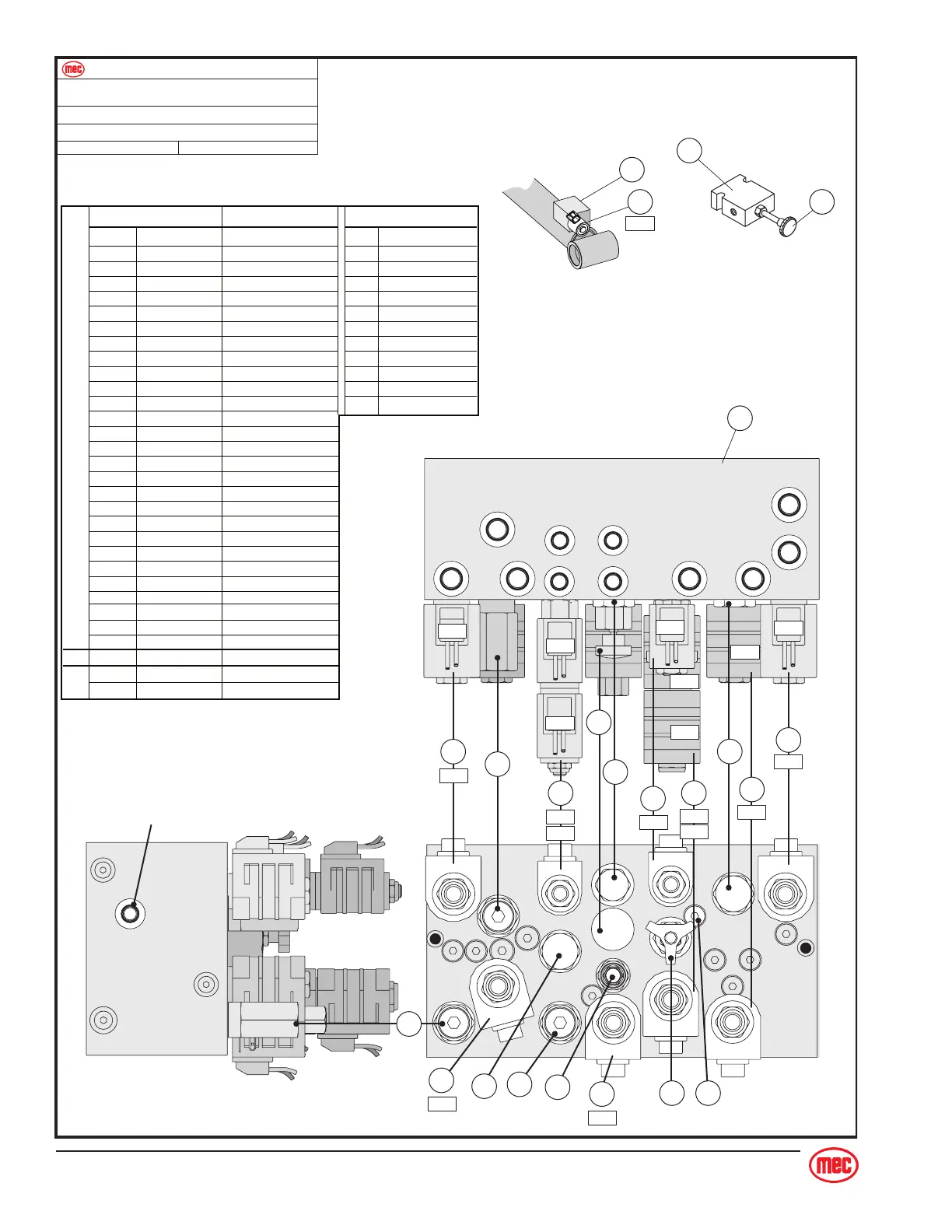

Hydraulic Manifold - early style
1532ES | 1932ES
Model: / Serial #
Publication Art #:Reference Art #:
2033ES | 2633ES
NOTE:
Early style manifold. Refer to Hydraulic
Schematic for serial # break
A
B
P
R
G
E
F
D
C
I
H
J
M
N
O
K
L
LIFT CYLINDER
1532ES - 1932ES
2033ES - 2633ES
BRAKE RELEASE
HAND PUMP
1532ES - 1932ES
2033ES - 2633ES
COMPONENTS FUNCTION
CBV1 Relief Valve Counter Balance
CV1 Check Valve Flow Control, Brakes
SOL1 Coil (SV1) Steer Right
SOL2 Coil SV1) Steer Left
SOL3 Coil (SV5) Drive/Decel
SOL4 Coil (SV2) Lift
SOL5 Coil (SV4) Torque
SOL6 Coil (SV6) Torque
SOL7 Coil (SV3) Drive Forward
SOL8 Coil (SV3) Drive Reverse
SOL9 Coli (SV7) Brakes
SOL10 Coil (SV8) Down
FD1 Flow Divider
MV1 Manual Valve Brake Release
NV1 Needle Valve Freewheel
ORF1 Orifice Plug
PFC1 Flow Control Steer Relief
RV1 Relief Valve Lift Relief
RV2 Relief Valve Main Relief
RV3 Relief Valve Steering Relief
SV1 Spool Valve Steering Control
SV2 Spool Valve Lift Control
SV3 Spool Valve Direction Control
SV4 Spool Valve Torque
SV5 Spool Valve Drive Dump/Decel
SV6 Spool Valve Torque
SV7 Spool Valve Brakes
SV8 Poppet Valve Down
HP1 Hand Pump Brake Release
SOL11 Coil (SV9) Down, Lift Cylinder
SV9 Spool Valve Emergency Lowering
1
2
12
3
7
6
5
4
9
8
10
11
SV8
SV9
SV1
SV5
SV4
SV6
SV3
NV1
CV1
FD1
MV1
SOL4
SOL10
SV2
SOL4
SV7
SOL9
SOL11
SOL1
SOL5
SOL5
SOL6
SOL6
SOL7
SOL8
SOL3
SOL3
SOL7
SOL8
SOL1
SOL2
SOL2
CBV1
PFC1
RV3
RV1
RV2
PORTS
1 PUMP
2 TANK
3 TEST PORT
4 BRAKE RELEASE
5 BRAKE
6 STEER
7 STEER
8 RIGHT A
9 RIGHT B
10 LEFT B
11 LEFT A
12 LIFT
ORF1
MA-2
MA-3
HP1
MA-1
TEST
PORT
MA1
MA2
MA3
