Mec 2633ES - Hydraulic Manifold - current style

"2033ES / 2633ES" Service & Parts Manual - ANSI Specifications October 2008
Page 5-7
ART_2197
none

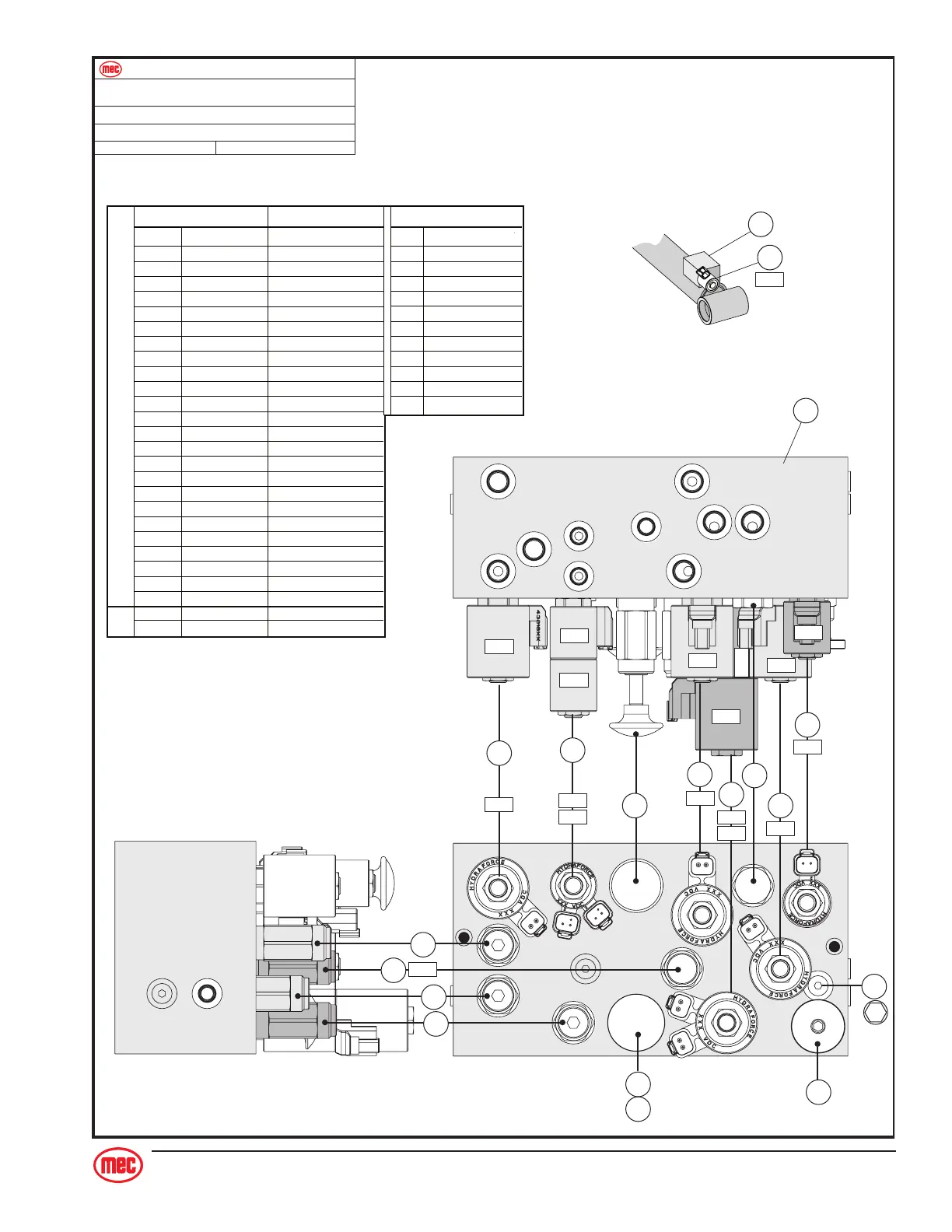

Hydraulic Manifold - current style
Model: / Serial #
Publication Art #:Reference Art #:
1532ES | 1932ES
2033ES | 2633ES
NOTE:
Current style manifold. Refer to
Hydraulic Schematic for serial # break
LIFT CYLINDER
1
2
12
3
7
6
5
9
8
10
11
SV2
SV9
SV1
SV4
SV5
SV6
SV3
ORF1
MV1
FRR1
ORF2
NV1
PLUG
FD1
HP1
SOL4
SOL4
PP1
SOL11
SOL1
SOL5
SOL5
SOL6
SOL6
SOL7
SOL8
SOL3
SOL3
SOL7
SOL8
SOL1
SOL2
SOL2
CBV1
RV2
RV1
MA-3
MA-1
PORTS
1 PUMP
2 TANK
3 TEST PORT
4 N/A
5 BRAKE
6 STEER
7 STEER
8 RIGHT B
9 LEFT A
10 RIGHT A
11 LEFT B
12 LIFT
MA1
MA3
COMPONENTS FUNCTION
CBV1 Relief Valve Counter Balance
SOL1 Coil (SV1) Steer Right
SOL2 Coil SV1) Steer Left
SOL3 Coil (SV5) Brake/Decel
SOL4 Coil (SV2) Lift
SOL5 Coil (SV4) Torque
SOL6 Coil (SV6) Torque
SOL7 Coil (SV3) Drive Forward
SOL8 Coil (SV3) Drive Reverse
FD1 Flow Divider
FRR1 Flow Control Steer Relief
HP1 Hand Pump Brake Pump
MV1 Manual Valve Brake Release
NV1 Needle Valve Freewheel
ORF1 Orifice Plug Flow Restriction
ORF2 Orifice Disc Flow Restriction
PP1 Pilot Piston Counter Balance
RV1 Relief Valve Lift Relief
RV2 Relief Valve Main Relief
SV1 Spool Valve Steering Control
SV2 Spool Valve Lift Control
SV3 Spool Valve Direction Control
SV4 Spool Valve Torque
SV5 Spool Valve Drive Dump/Decel
SV6 Spool Valve Torque
SOL11 Coil (SV9) Down, Lift Cylinder
SV9 Spool Valve Down, Lift Cylinder
