Page 21 Micro 19-XD - Operator’s Manual
July 2020Section 9 - Operating Instructions and Function Tests
Test Drive and Braking
Press and hold the Function Enable Switch on the control handle.
Slowly move the control handle in the direction indicated by the blue up arrow on the control
panel until the machine begins to move, then return the handle to the center position.
Result: The machine should move in the direction that the blue up arrow points on the
control panel, then come to an abrupt stop.
Press and hold the Function Enable Switch on the control handle.
Slowly move the control handle in the direction indicated by the yellow down arrow on the control
panel until the machine begins to move, then return the handle to the center position.
Result: The machine should move in the direction that the yellow down arrow points on the
control panel, then come to an abrupt stop.
Note: The brakes must be able to hold the machine on any slope it is able to climb.
Test Limited Drive Speed
Press the lift Function Enable Switch. Raise the platform approximately 5 ft / 1.5 m from the
ground.
Press the drive function select switch.
Press and hold the Function Enable Switch on the control handle.
Slowly move the control handle to the full drive position.
Result: The maximum achievable drive speed with the platform raised should not exceed
0.55 ft per second / 16.7 cm/s.
If the drive speed with the platform raised exceeds 0.55 ft per second / 16.7 cm/s,
immediately tag and remove the machine from service.
Operating Instructions
Check the area above and around the machine for obstructions and
electrical power lines before operating the machine.

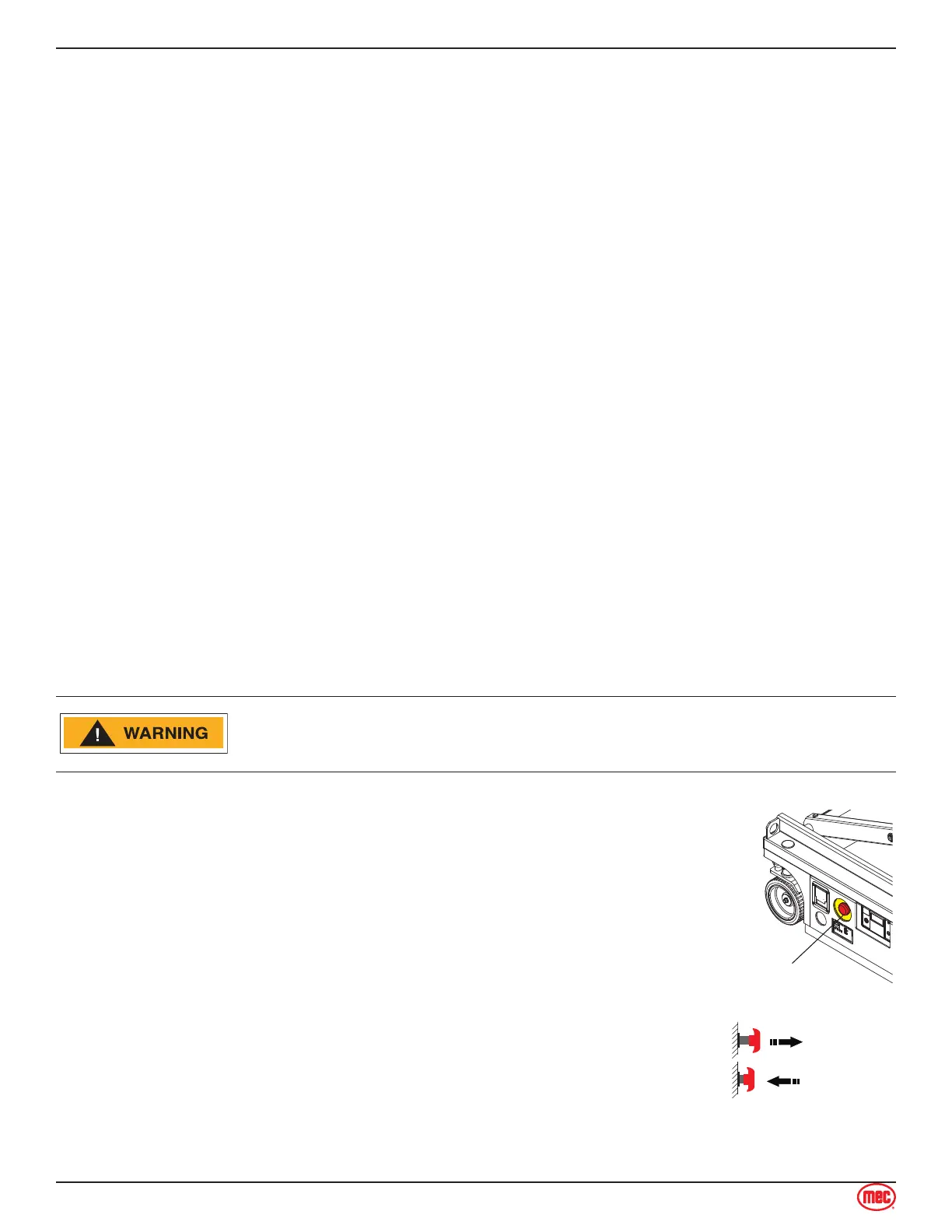

Emergency Stop
Push in the red Main Power/Lower Emergency Stop Switch button to
the off position at the ground controls or the platform controls to stop all
machine functions.
Repair any function that operates when either red Emergency Stop button
is pushed in.
•
•
ART_5231
ON
OFF
Main Power/
Lower Emergency
Stop Switch
32.
33.
•
34.
35.
•
36.
37.
38.
39.
•
•
