Mec Micro 19-XD - Platform Operation and Steering

Page 23 Micro 19-XD - Operator’s Manual
July 2020Section 9 - Operating Instructions and Function Tests

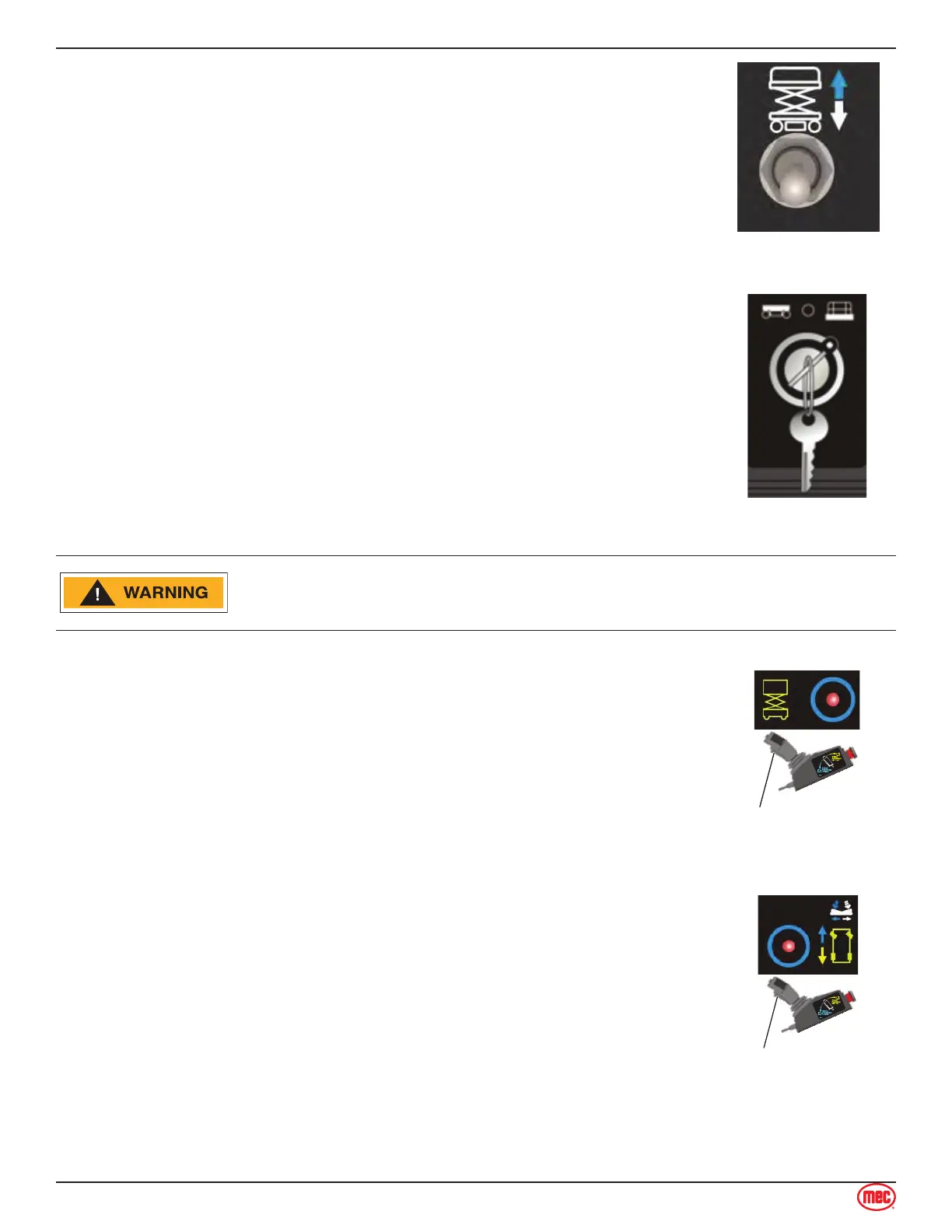

To Position Platform
Move the up/down toggle switch according to the markings on the control panel.
Art_5534
Operation from Platform
Turn the Key Switch to platform control.
Set the red Emergency Stop buttons to the ON position at both the ground
and platform controls.
Be sure the battery pack is connected before operating the machine.
1.
2.
3.
ART_4989
Check the area above and around the machine for obstructions and
electrical power lines before operating the machine.
To Position Platform
Press the lift function select button.
Press and hold the Function Enable Switch on the control handle.
Move the control handle according to the markings on the control panel.
1.
2.
3.
Art_5534
Art_5534 Art_5534
Art_5534
To Position Platform To Steer/To Drive To Reduce Drive Speed
Function Enable Switch Function Enable Switch
To Steer
Press the drive function select button.
Press and hold the Function Enable Switch on the control handle.
Turn the steer wheels with the thumb rocker switch located on the top of
the control handle.
1.
2.
3.
Art_5534
Art_5534 Art_5534
Art_5534
To Position Platform To Steer/To Drive To Reduce Drive Speed
Function Enable Switch Function Enable Switch
