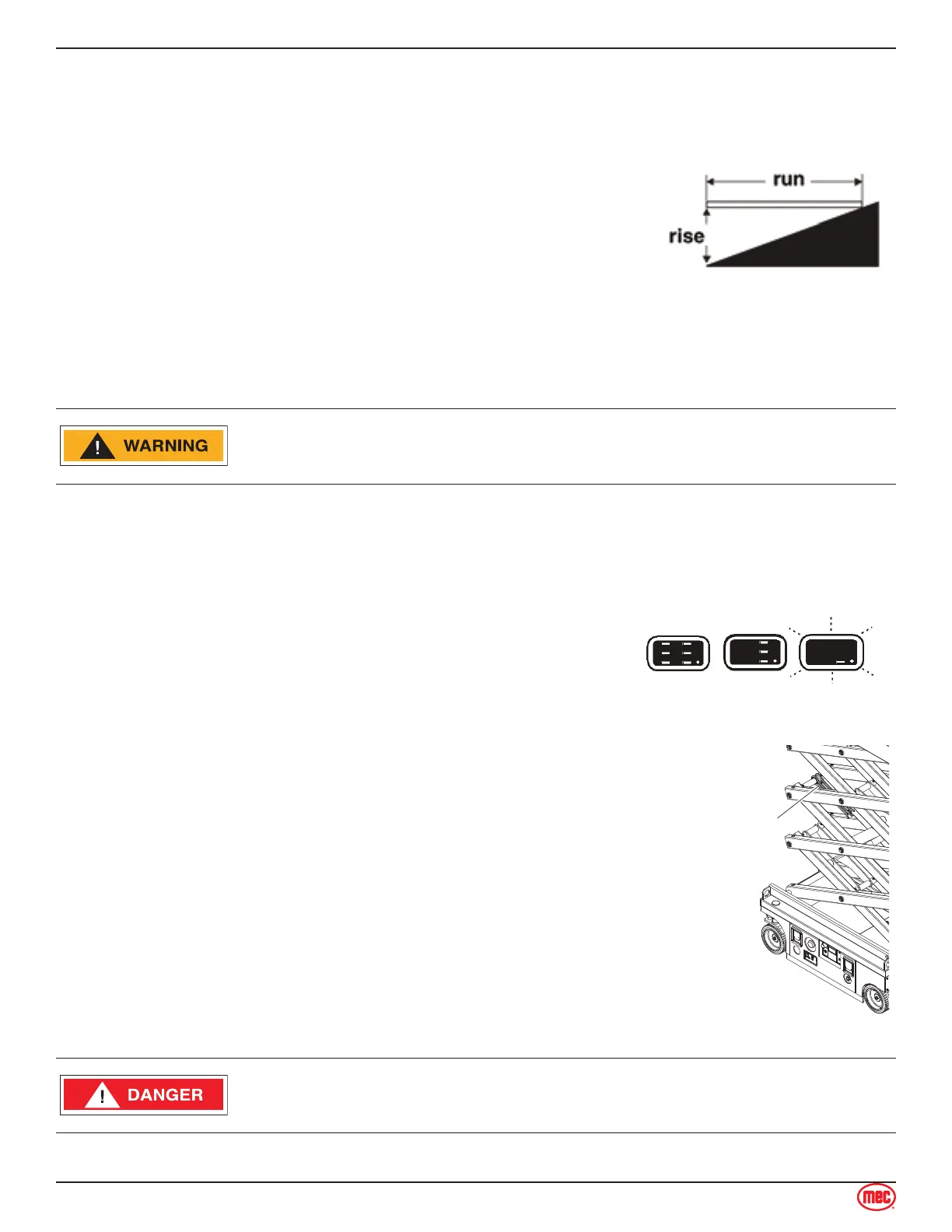

Page 25 Micro 19-XD - Operator’s Manual
July 2020Section 9 - Operating Instructions and Function Tests
While holding the piece of wood level, measure the distance from the bottom of the piece of wood to
the ground.
Divide the tape measure distance (rise) by the length of the piece of wood (run) and multiply by 100.
Example:
Run = 12 ft / 3.6 m
Rise = 12 in / 0.3 m
12 in ÷ 12 ft = 0.083 × 100 = 8.3%
0.3 m ÷ 3.6 m = 0.083 × 100 = 8.3%
•
•
•
•
ART_4983
If the slope exceeds the maximum slope or side slope rating, the machine must be winched or
transported up or down the slope. See Transport and Lifting section.
Operation from Ground with Controller
Use extreme caution when operating the machine with the controller
from the ground.
Maintain safe distances between operator, machine and fixed objects.
Be aware of the direction the machine will travel when using the controller.
Battery Level Indicator
Use the LED diagnostic readout to determine the battery level.
FULL LOW
ART_4984
Maintenance Lock
Raise the platform approximately 7.2 ft / 2.2 m from the ground.
Rotate the Maintenance Lock away from the machine and let it hang
down.
Lower the platform until the Maintenance Lock rests securely on the
link. Keep clear of the Maintenance Lock when lowering the platform.
1.
2.
3.
ART_4995
Maintenance
Lock
Don’t engage the Maintenance Lock unless the platform in empty of tools
and material.
