Page 23 Micro 26 - Service & Parts Manual
April 2019Section 11 - Maintenance

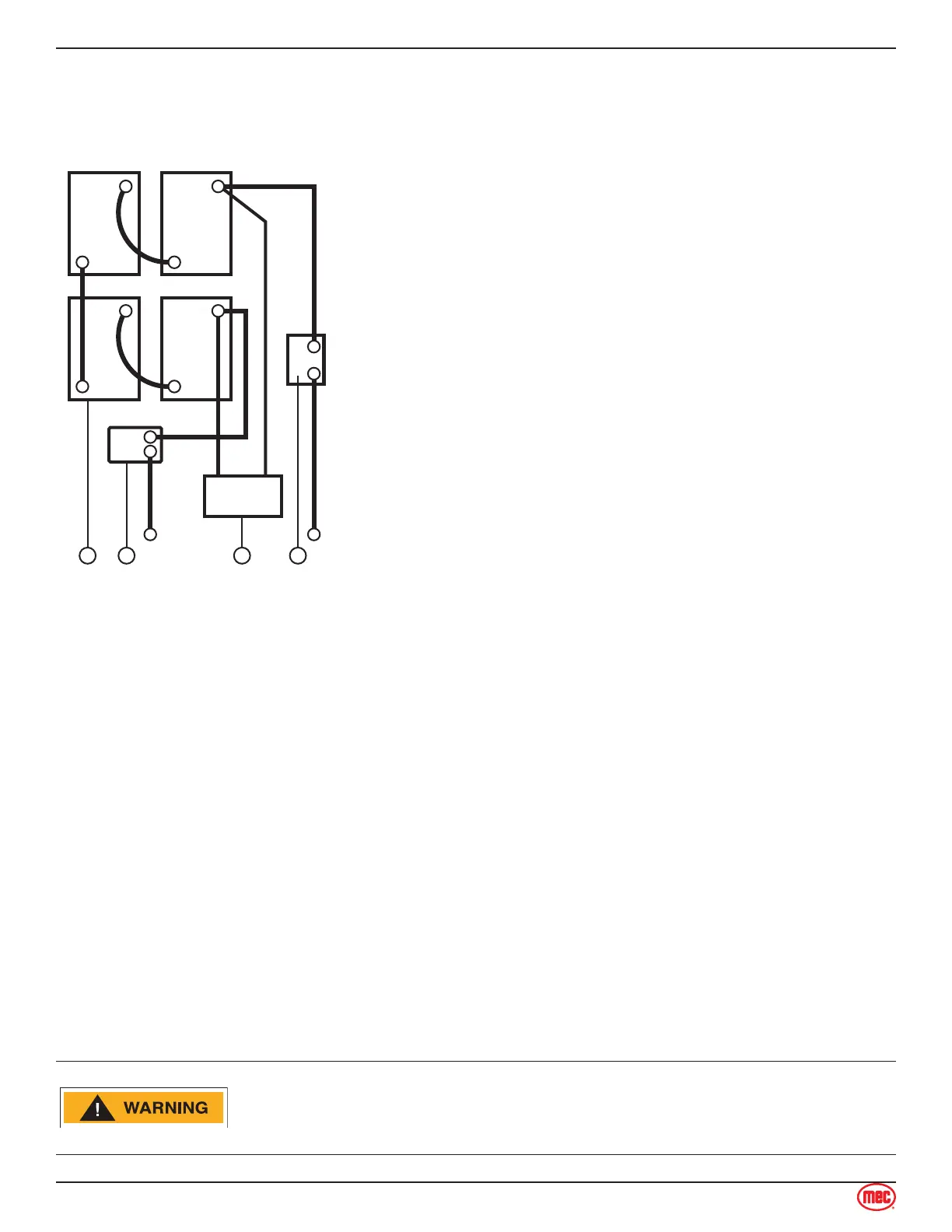

a -- Batteries
b -- 300A Fuse
c -- Battery Charger
d -- Quick Disconnect
ART_5120
a b c
BATTERY
CHARGER
FUSE
RD
-
+
- -
-
-
+
+
++
BK
QD
d
Put on protective clothing and eye wear.
Open the Battery Module.
Be sure that the battery cable connections are free of
corrosion.
Note:Adding terminal protectors and a corrosion preventative
sealant will help eliminate corrosion on the battery terminals
and cables.
Be sure that the battery retainers and cable connections are
tight.
Remove the battery caps and inspect the fluid level. If plates
show, add just enough fluid to cover the plates as charging
will cause fluid to expand.
Replace cables that show damage, corrosion, or swelling.
Fully charge the batteries. It is best to allow the batteries to
rest 24 hours to allow the battery cells to equalize.
Check each battery pack and verify that the batteries are
wired correctly.
Check the fluid level in each battery cell. Batteries are full
when the fluid is just below the bottom of the well.
Inspect the battery charger plug and pigtail for damage or
excessive insulation wear. Replace as required.
Connect the battery charger to a properly grounded 110
- 230V / 50 - 60 Hz single phase AC power supply.
Result: The charger should operate and begin charging the
batteries.
Result: If simultaneously, the charger alarm sounds and the LEDs
blink, consult the Troubleshooting section for charger flash
code troubleshooting.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Note:For best results, use an extension cord of adequate size with a length no longer than 50 ft /
15m.
If you have any further questions regarding the battery charger operation, please contact the MEC
Technical Support.
Electrical Wiring
Maintaining electrical wiring in good condition is essential to safe operation and good machine
performance. Failure to find and replace burnt, chafed, corroded or pinched wires could result in
machine breakdown or unsafe operating conditions and may cause component damage.
ELECTROCUTION / BURN HAZARD. CONTACT WITH ELECTRICALLY
CHARGED CIRCUITS COULD RESULT IN DEATH OR SERIOUS INJURY.
REMOVE ALL RINGS, WATCHES AND OTHER JEWELRY.
