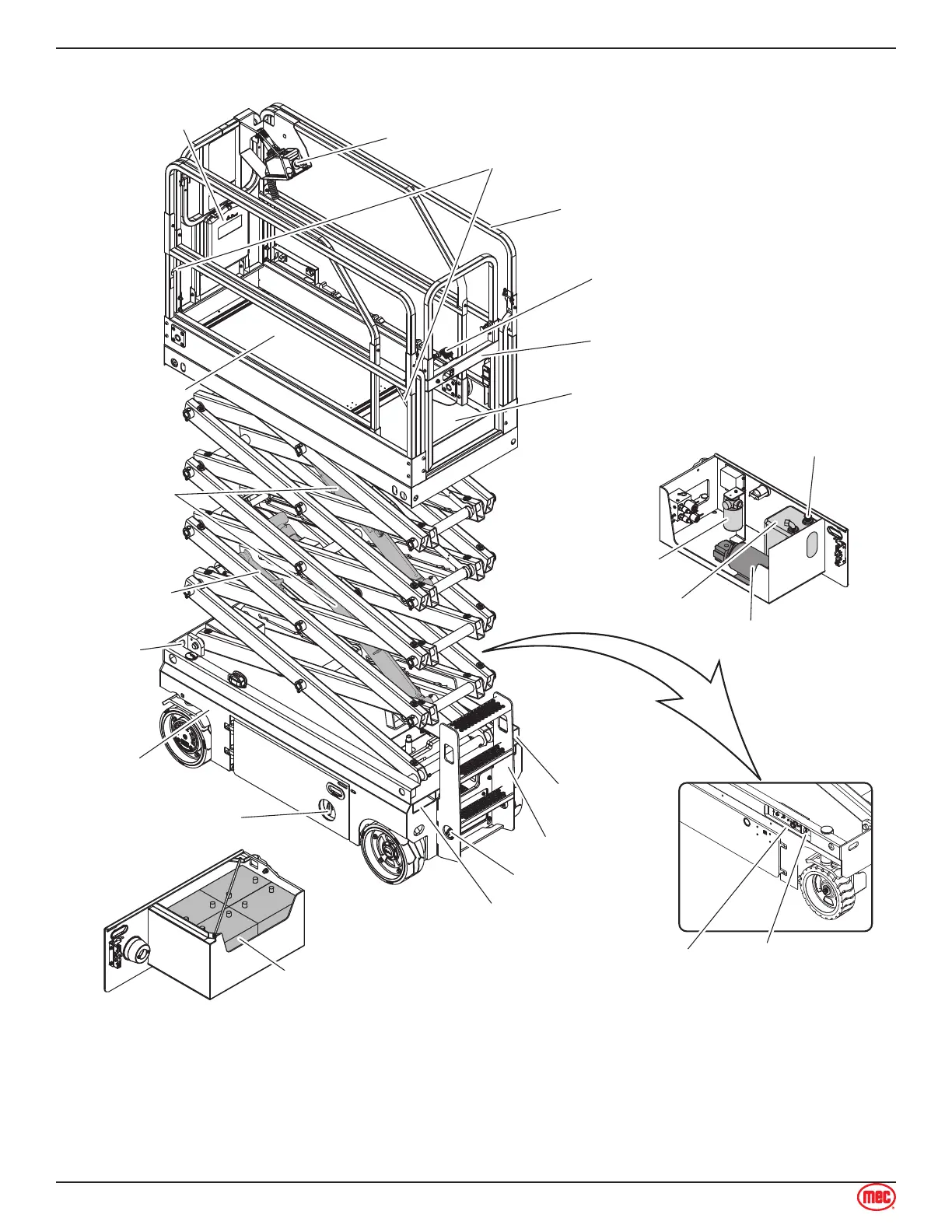

Component Locations
ART_5008a
Lower
Controls
Emergency
Lowering
Handle
Platform Controls
Lanyard Anchorage
Lift Cylinders
Chassis
Tie-Down/
Lift Points
Entry Gate
Main Platform
Entry Ladder
Forklift Pocket
Forklift Pocket
Maintenance
Lock
Deck Extension Release
Guard Rails
Manuals Case
Battery Charger
Main Power Switch
Deck Extension
Batteries
Battery Tray
Hydraulic
Pump & Motor
Hydraulic
Reservoir
Hydraulic
Filter
Controls
Tray
Breather Cap
