Lifting Instructions
Only qualified riggers should rig and lift the machine.
Ensure that the crane, loading surfaces, spreader bars, cables, chains
and straps are of sufficient capacity to withstand the machine weight.
See the serial plate for the machine weight.
Fully lower the platform. Be sure the deck extension is retracted and the controls and component
trays are closed and secure. Remove all loose items from the machine.
Determine the center of gravity of the machine.
Attach rigging to the designated lift points only.
Adjust the rigging to prevent damage to the machine and to keep the machine level.

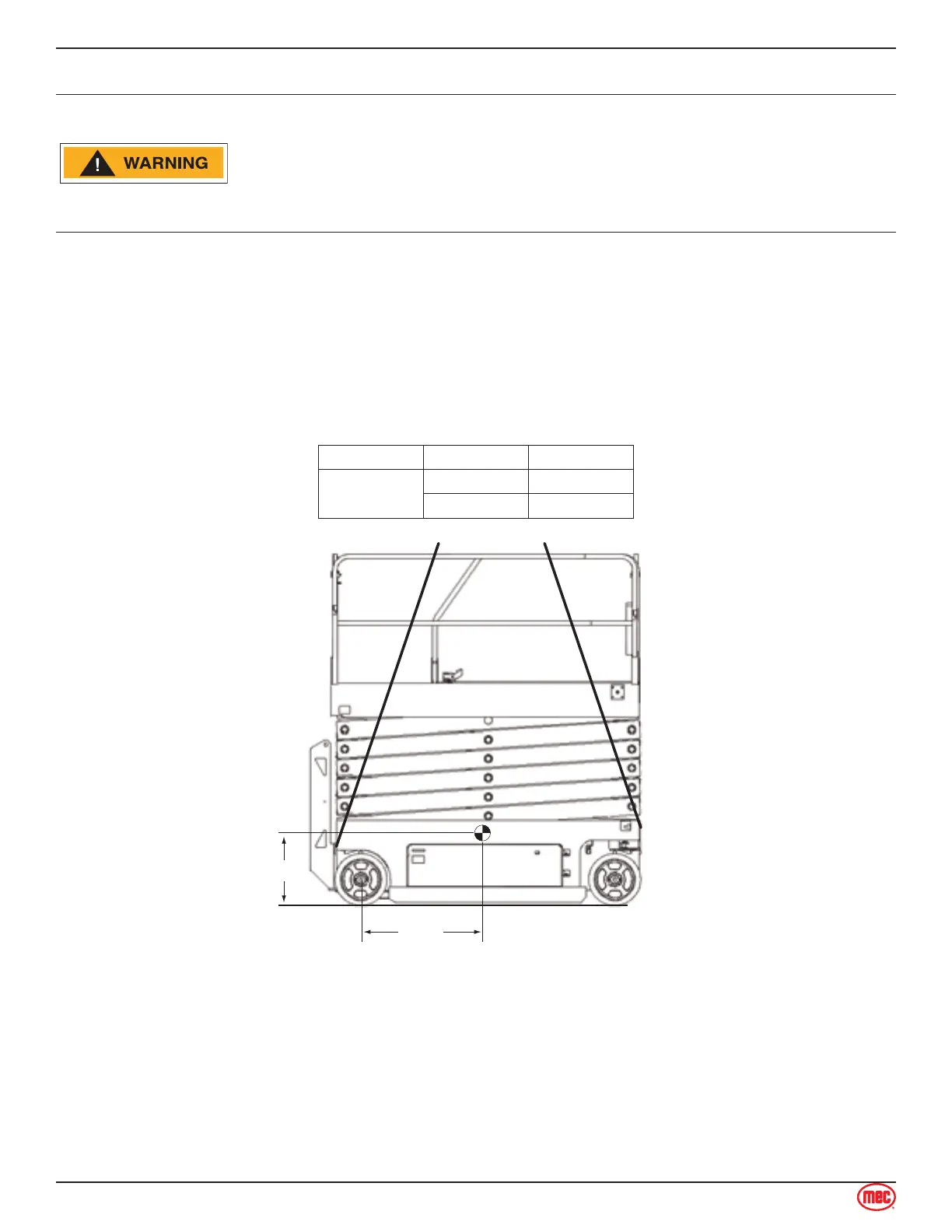

Model X Axis Y Axis
Micro 26
27.5 in 27.2 in
70 cm 69 cm
Y Axis
X Axis
Chassis
Lifting
Points (2)
Chassis
Lifting
Points (2)
ART_5032
