Medela Basic 30 - Assembly and Connection Procedures

EN
Installation | 13
Set up mobile
version
(if available)
5.3

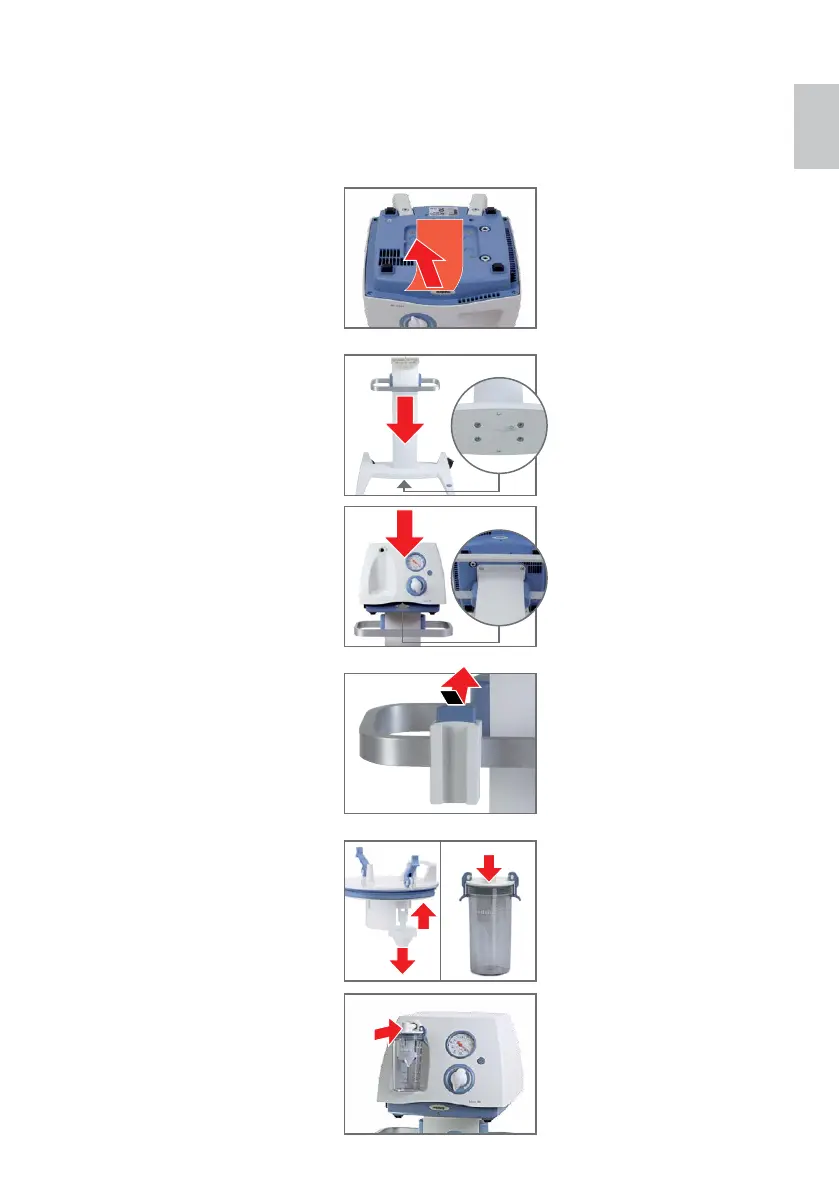

1. 1.1 Position top part of trolley
on bottom part, making
sure the tubing fits as
shown.
1.2 Connect parts with
4 screws.
2. 2.1 Position pump on trolley.
Make sure that the front of
the pump and the stan-
dard rail point forwards.
2.2 Connect pump with
4 screws.
Assembly of the
optional clampholder
(when using the
trolley)
1. 1.1 Press and hold the blue
release knob.
1.2 Attach the clampholder to
the standard rail by releas-
ing the blue knob.
5.4
Set up the
Safety Set
1. 1.1 Attach the mechanical
overflow protection to
the lid. Pull gently down-
wards to make sure it is
open / deactivated.
1.2 Attach the lid to the jar.
1.3 Close the two lid clamps.
2. 2.1 Attach the Safety Set to
the pump.
5.5
1.1
1.2
1.3
Remove
transport lock
5.2
1. 1.1 Remove the red note
1.2 Remove 4 screws and
store them for later use.
