Medela Basic 30 - System Assembly and Accessory Connection

EN
Preparation for use | 15
Assembly of
the REUSABLE
collection system
1. If you use a DISPOSABLE collection system proceed
with step 6.4b
6.4a

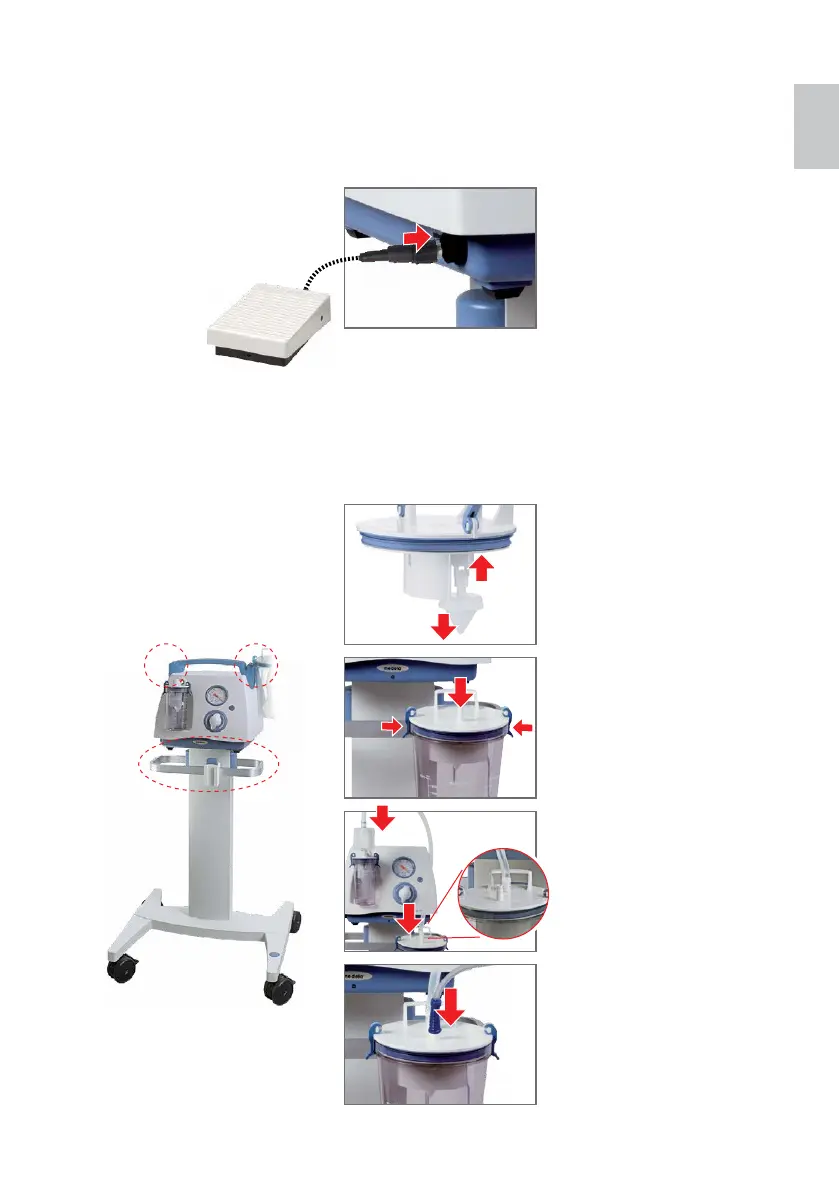

Assembly of the
optional foot switch
1. 1.1 Connect the optional foot
switch to the pump by
plugging in the plug.
1.2 Test the correct function-
ning of the foot switch.
6.3
4. 4.1 Connect tubing from the
Safety Set to the lid of the
jar (vacuum port).
3. 3.1 Attach the lid to the jar and
lock with the two lid
clamps.
3.2 Attach the jar to the carry-
ing handle (portable version
only) or to the optional
clampholder on the rail (see
step 5.4).
3.1 3.1
3.2
2. 2.1 Attach mechanical over-
flow protection to lid.
2.2 Pull gently downwards to
make sure it is
open / deactivated.
2.1
2.2
positions for jars
(depending on the
configuration):
5. 5.1 Connect patient tubing to
the lid of the jar (patient
port).
