Setup
This section contains information about setting up your instrument and preparing to play. Please go through this section carefully
before turning the power on.

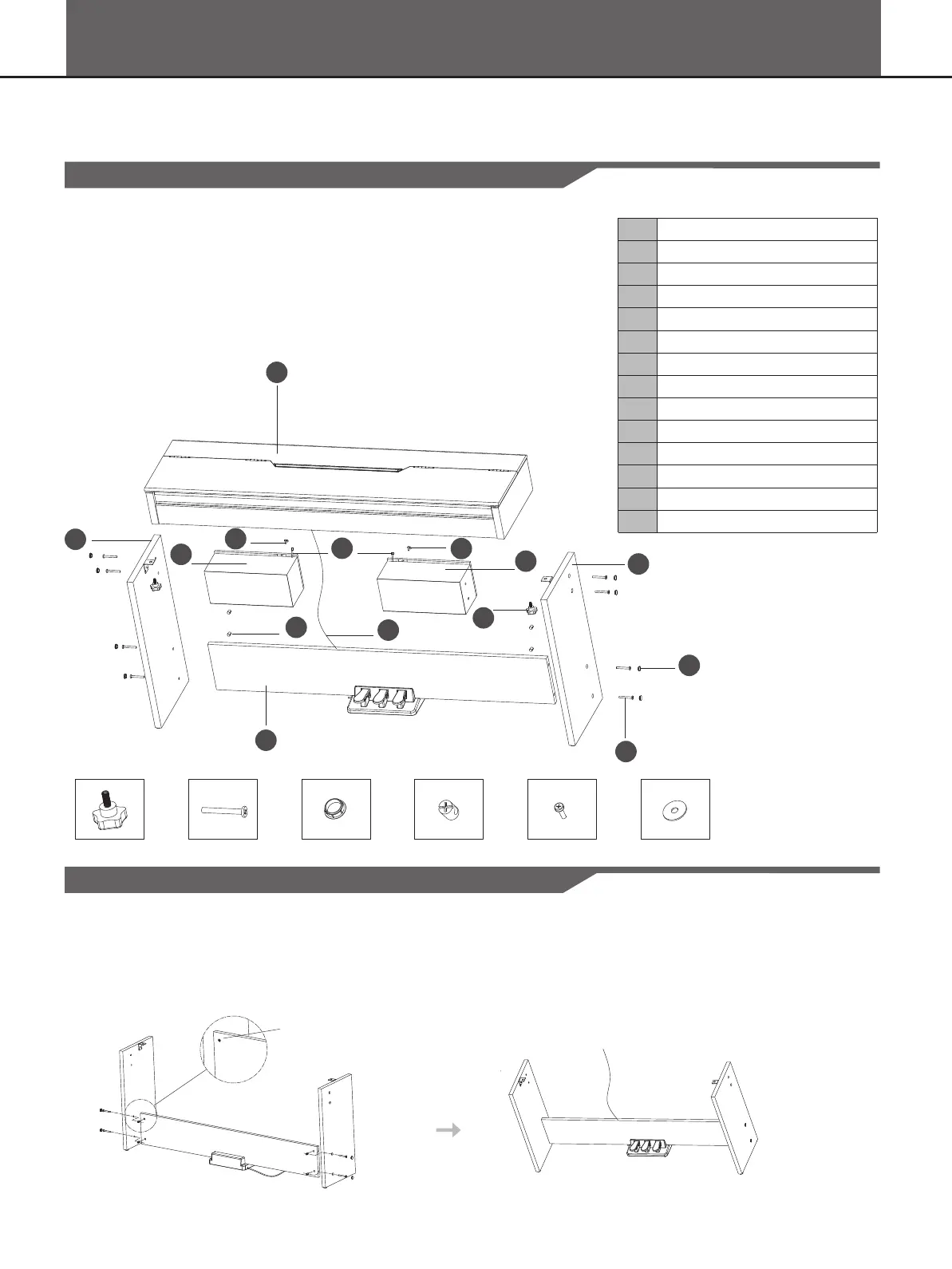

Part List
6
Before you proceeding to assemble the stand, get a Philip's
screwdriver (not supplied).
Make sure you have the following parts, which are supplied into
package.
Setup Guide
1. Piano body
2. ST side board left
3. Left speaker box
4. Speaker line
5. Right speaker box
6. Pedal line
7. Hand screw (2)
8. Pedal box
9. Φ6x50 "+" screw (8)
10. Screw cap (8)
11. ST side board right
12. Horizontal hole nut(4)
13. 4x15BM“+”screw(2)
14. Gasket(2)
STEP 1: First of all make 4 PCS Horizontal hole nut into the holes in
the pedal box as picture shown, ensure that Horizontal hole
nut hole is aligned with the pedal box holes, then use 4 PCS
Ф6x50 screws to fix the left/right ST board to the pedal box,
and cover the screw cap as shown.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
7. Hand screw (2)
9. Φ6x50 "+" screw (8)
10. Screw cap (8)
13. 4x15BM“+”screw(2)12. Horizontal hole nut(4) 14. Gasket(2)
After assembly horizontal hole nut
