MEDENUS R 100 User Manual

35
© 11.2023

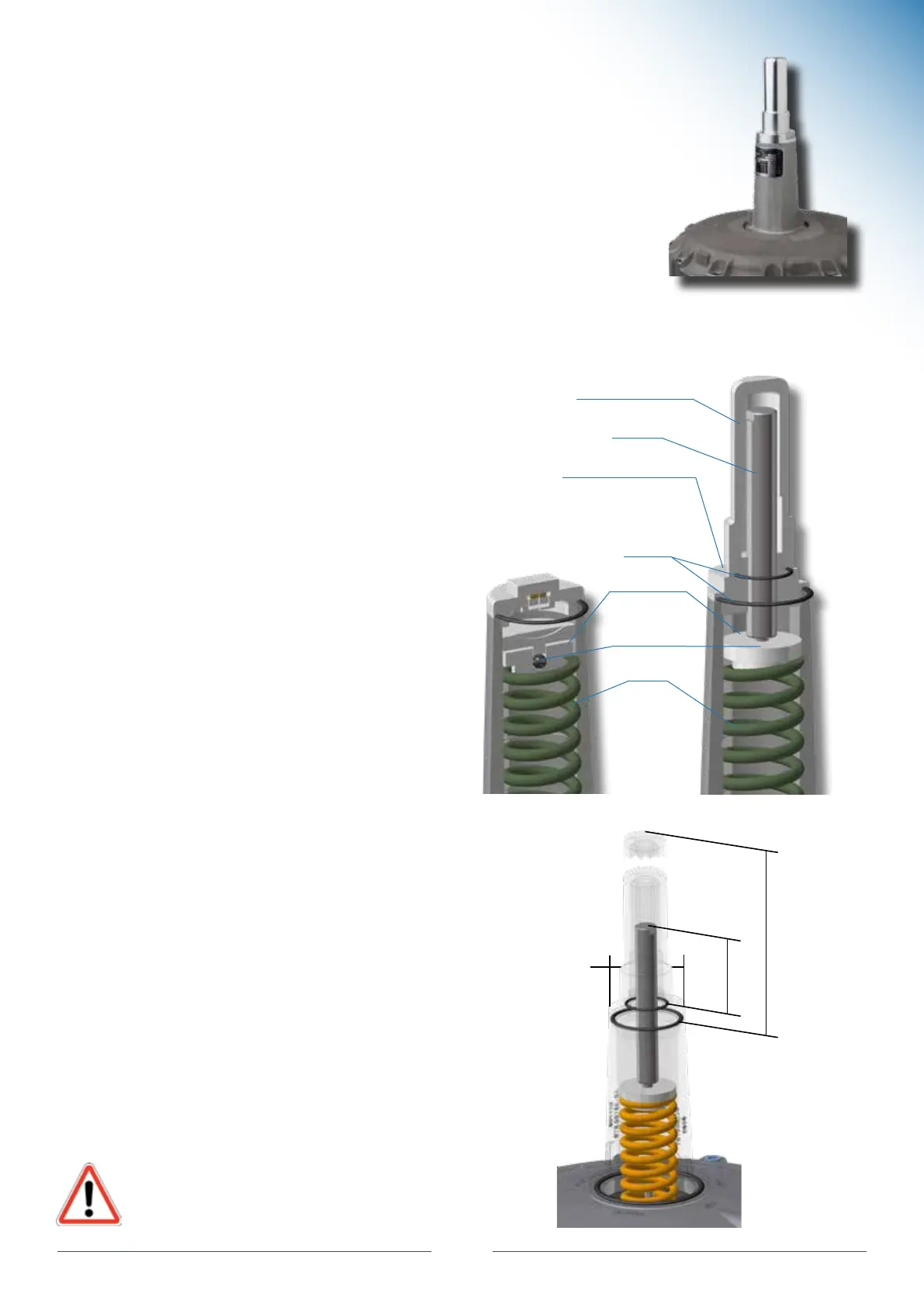

12.2.4 Mounting instructions
• Setting with HD spindle (small spring dome / Ø 70mm)
- Screw-in depth T min: 111 mm
- Screw-in depth T max: 65 mm
• Setting with HD spindle (large spring dome / Ø 105mm)
- Screw-in depth T min: 130 mm
- Screw-in depth T max: 70 mm
• Dismounting height HD spindle (small spring dome / Ø 70mm)
- X: 260 mm
• Dismounting height HD spindle (large spring dome / Ø 105mm)
- X: 410 mm
12.2 High-Pressure Spindle
12.2.2 Application / Function
The HDS high-pressure spindle is used for simplified adjustment of the control spring
in the gas pressure regulator. For the adjustment of particularly strong control springs,
the use of a high-pressure spindle is mandatory. (See p. 16 - 17.)
12.2.1 Use
• Gas pressure regulators RS 250 / RS 251
• Gas pressure regulators RS 254 / RS 255
• Gas pressure regulators R 100 / R 100-U
• Gas pressure regulators R101
12.2.3 Mounting
• Unscrew the sealing cap
• Unscrew the setting screw anticlockwise
• Take off the spring plate from the spring
Attention! Do not lose the steel ball!
• Remove the built-in spring
• Insert a new spring
• Insert spring plate again
Attention! Do not forget the steel ball!
• Screw high-pressure cap with high-pressure spindle
into the spring dome
Do not forget the O-ring!
• On the widths across flats (AF 17) of the spindle, set
the regulator to the desired output pressure.
• Screw on the sealing cap
Do not forget the O-ring!
Standard model
HD spindle design
Spindle
O-ring
Spring plate
Spring
High-pressure cap
Sealing cap
Steel ball
Ø10mm
All threads must be oiled!
ATTENTION
T
X
Ø
