12.8. SSV manual and remote release
12.8.2 Application / Function

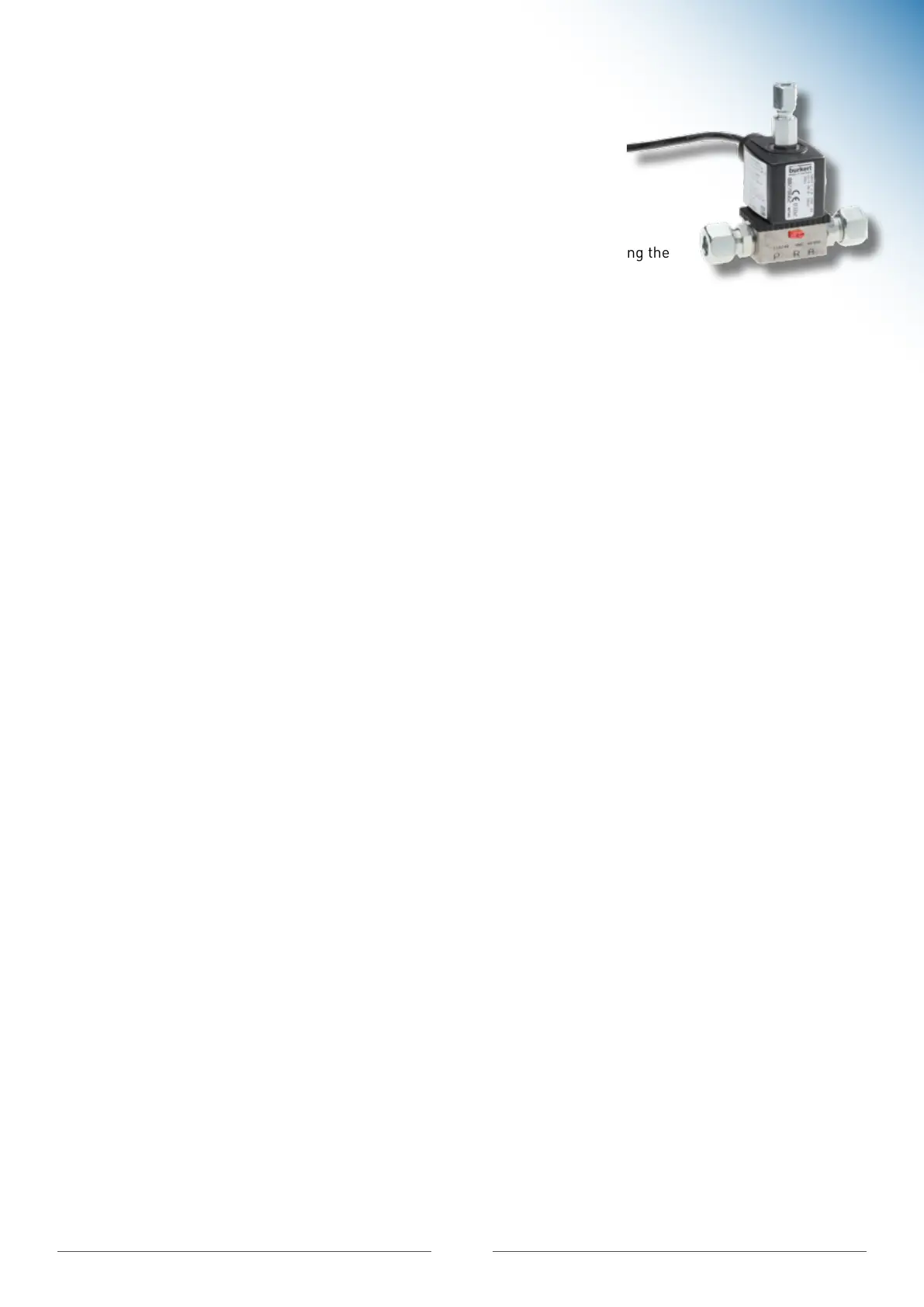

The direct-acting solenoid valve is used as electromagnetic remote release for closing the
safety shut-off valve. Only for SSV control devices of functional class A.
Upon being energized or in case of power failure, the valve closes the impulse line, resulting in the pressure falling
below the response pressure to be monitored. As a result, the SSV actuator shuts off the gas flow gas-tight.
After being released, the safety shut-off valve can only be opened by hand and engaged in the open position.
12.8.1 Use
• On SAV control devices
12.8.3 Technical Data
• Housing material stainless steel, polyamide (flange)
• Sealing material FKM (EPDM upon request)
• Media Neutral gases and liquids (e.g. compressed air,
city gas, grid gas, water, hydraulic oil, petrol).
Suitable for technical grade vacuum.
• Media temperature -10° to +100 °C (PA coil) up to 120 °C epoxy
• Polyamid coil (FKM seal) Coil
• Ambient temperature max. +55 °C
• Viscosity max. 21 mm
2
/s
• Line connection G 1/8, G 1/4, flange (SFB)
• Operating voltage 24 V DC, 24 V/50 Hz
• (other voltages upon request)
• Voltage tolerance ±10%
• Nominal operating mode / Single valve Permanent operation 100%
• Electrical connection DIN EN 175301-803 form A for device socket
• Type 2508 (see ordering table accessories)
• ATEX/IECEx version potted with 3 m cable
• Installation position Any, preferably drive pointing upwards
• Degree of protection IP65 with device socket, ATEX/IECEx terminal connection version
• and cable connection version
• NEMA 4x with device socket 2508 or 2509
• for VA versions (other versions upon request)
• Thermal insulation class coil Polyamide class B (epoxy class H upon request)
• Coil material polyamide (epoxy upon request)
• Nominal width DN 1.5 - 2.5
Further technical data and information on the 3/2-way valve, such as information on ATEX, are available
for download on the manufacturer's homepage.
