12.9. SM Safety Diaphragm

12.9.2 Application / Function

In the model with safety diaphragm, the safety diaphragm is located above the main diaphragm. When the main

diaphragm ruptures, the safety diaphragm makes contact with the top cover of the diaphragm assembly and prevents

any inadmissible escape of gas into the surrounding atmosphere.

12.9.1 Use

• Gas pressure regulators RS 250 / RS 251

• Gas pressure regulators R 100 / R 100-U

• Gas pressure regulators R101

(Option not available for hydrogen version H

)

Safety diaphragm

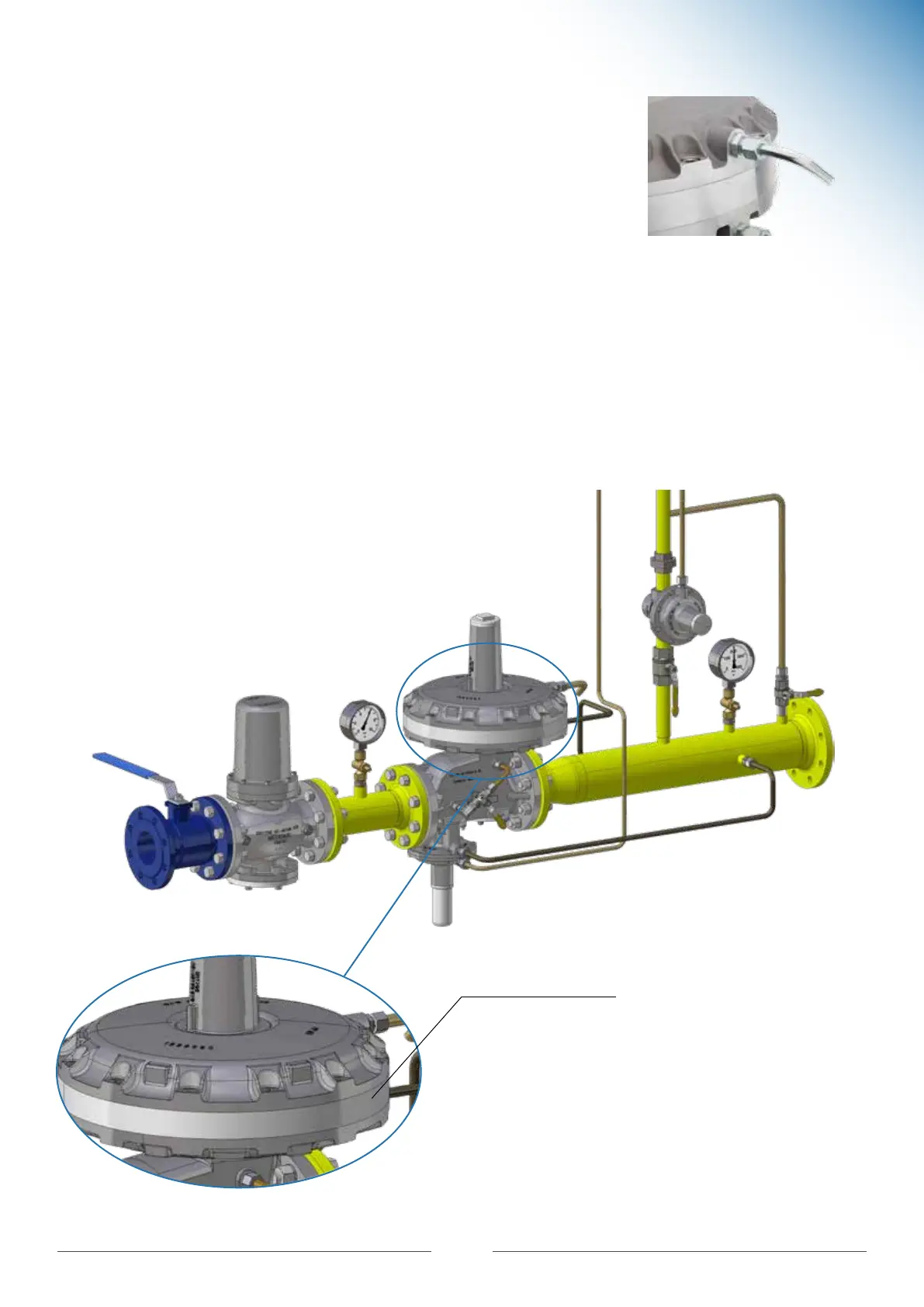

Gas pressure regulator RS250/DN080/385 with safety diaphragm

12.9.3 Application example
