MEDENUS R 100 User Manual

42
© 11.2023

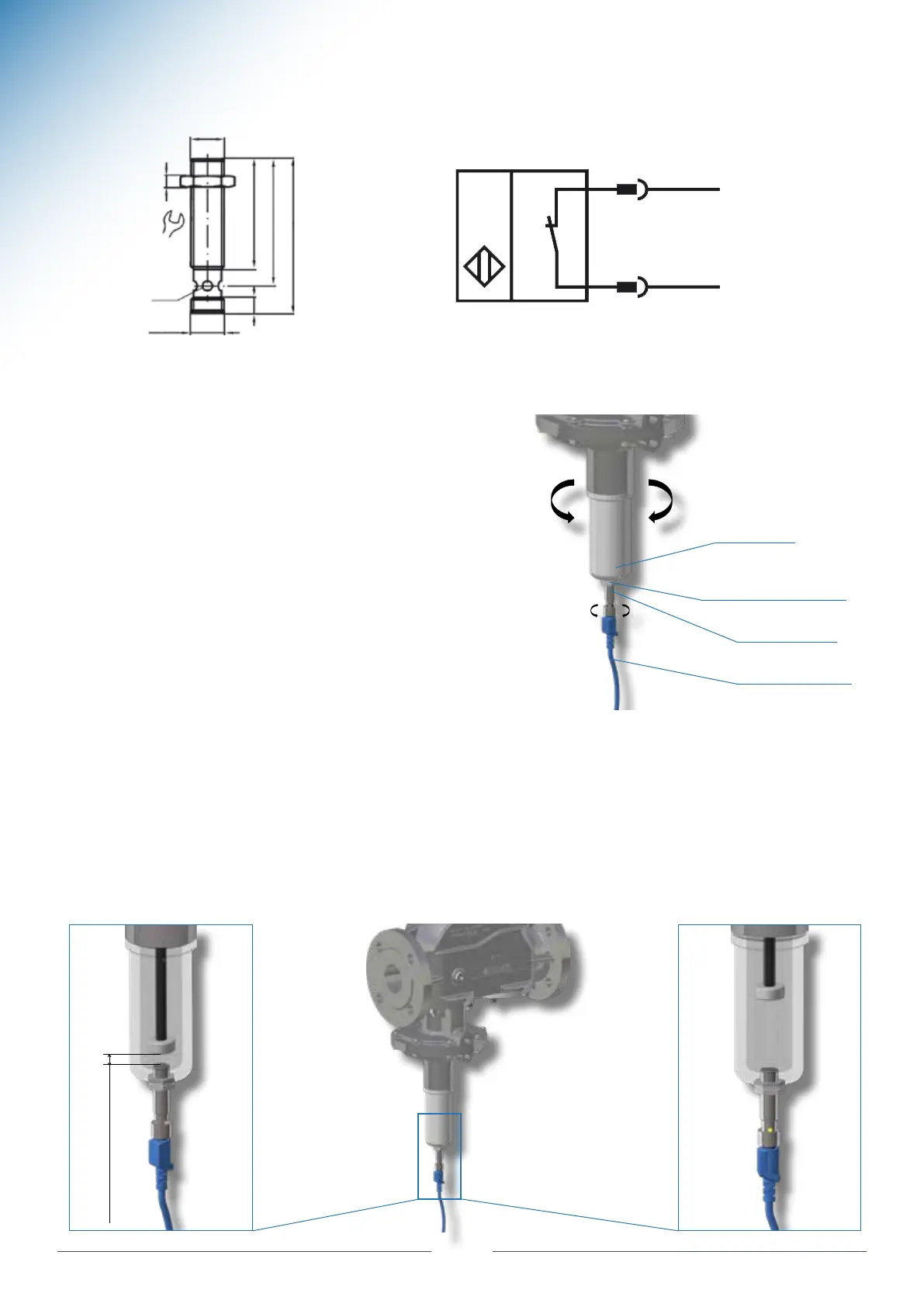

12.6.5 Mounting
M12x1
4
34
40
50
6
LED
SW 17
M12x1
N / NO
1/BN
2/BU
L+
L-
Inductive transmitter
1x locknut
M12x1 (AF 17)
SSV cap
-
Connection cable
+
-
+
max. 2mm (optimum
switching distance)
SSV closed
SSV open
• Unscrew the SSV cap of your Medenus gas pressure regulator
(-) and replace it with the SSV cap with M12 threaded hole for
the inductive transmitter and the pull knob, if necessary.
(During mounting, make sure that the O-ring has been
inserted into the SSV cap)
• Now screw the inductive transmitter into the thread provided
for this purpose, ensuring that the inductive transmitter has
a max. switching distance to the pull knob of 2mm (with SSV
actuated). (1- max. 2 turns back)
• Then secure the inductive transmitter with the enclosed
locknut AF 17.
• Finally connect the delivered connecting cable to the inductive
transmitter by means of a screw cap.
• Check the function of the display in the open and closed
positions of the SSV.
With the SSV closed, the operational status indicator of the inductive transmitter will light in yellow. With the SSV open,
the operational status indicator of the inductive transmitter will go out.
