Connecon using Meech 24V DC power supply
Meech 24V DC supplies are grounded internally. It is important that the mains
connecon oers a ground connecon. Two-pin outlets without a ground
connecon must not be used, unless the ground post on the 233v4 controller
is connected to ground.

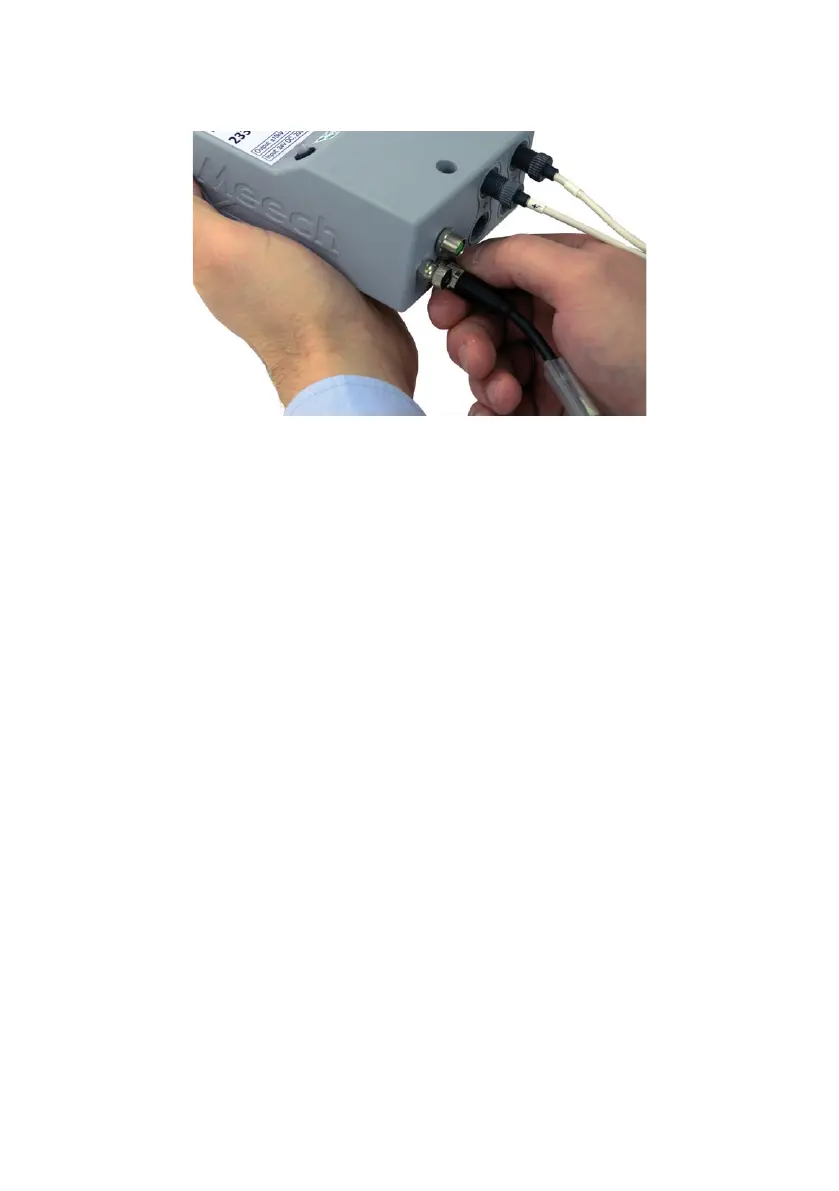

The Meech switchmode power supply has a C5 socket and a 2000mm cable to
an M8 Connector. A break-out wire from the power supply provides the Clean
Pin Alert output signal.
Note: The 233v4 does not come with a 24V DC power supply and must be
ordered seprately.
Connecon using customer’s own power supply:
It is the customer’s responsibility to check that the 24V power supply they will
be using is grounded. If it is NOT grounded they must check that grounding it
via the ground post on the 233v4 controller will not aect any other systems
running from that power source.
The 24V supply should be protected with a 1 Amp fuse.
