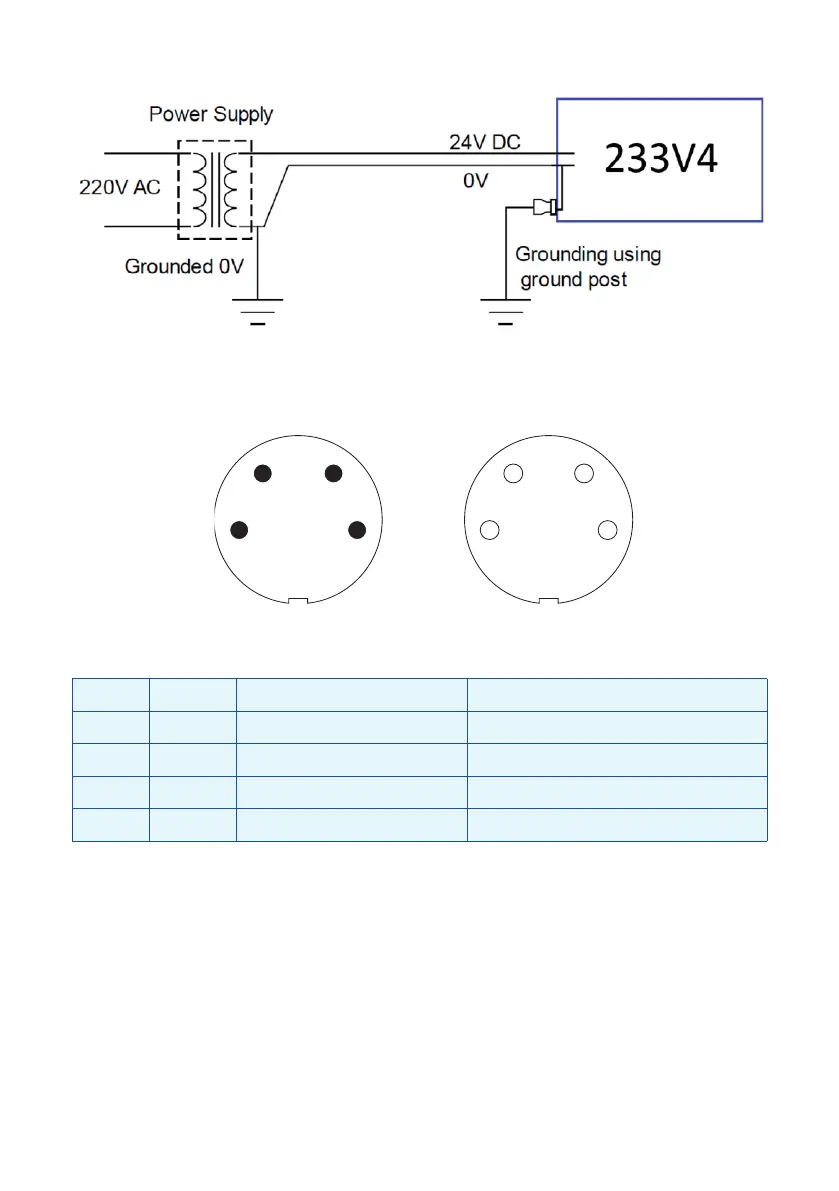

Connecon to the 233v4 is via an M8 4 Pin connector. With the following pin-

outs:

2 4

1 3

Male connector on Controller

4 2

3 1

Female connector on Cable

Pin Colour Funcon Specicaon

1 Brown Input 24V

2 White Output Clean pin 0V/24V

3 Blue Input 0V/ Ground

4 Black Output HT Failure 0V/24V

For the rst 60 seconds of start-up, the unit is in communicaons mode and

will output 24V on both alarm lines.

Aer 60 seconds, both alarm lines revert to being used for alarm purposes.
